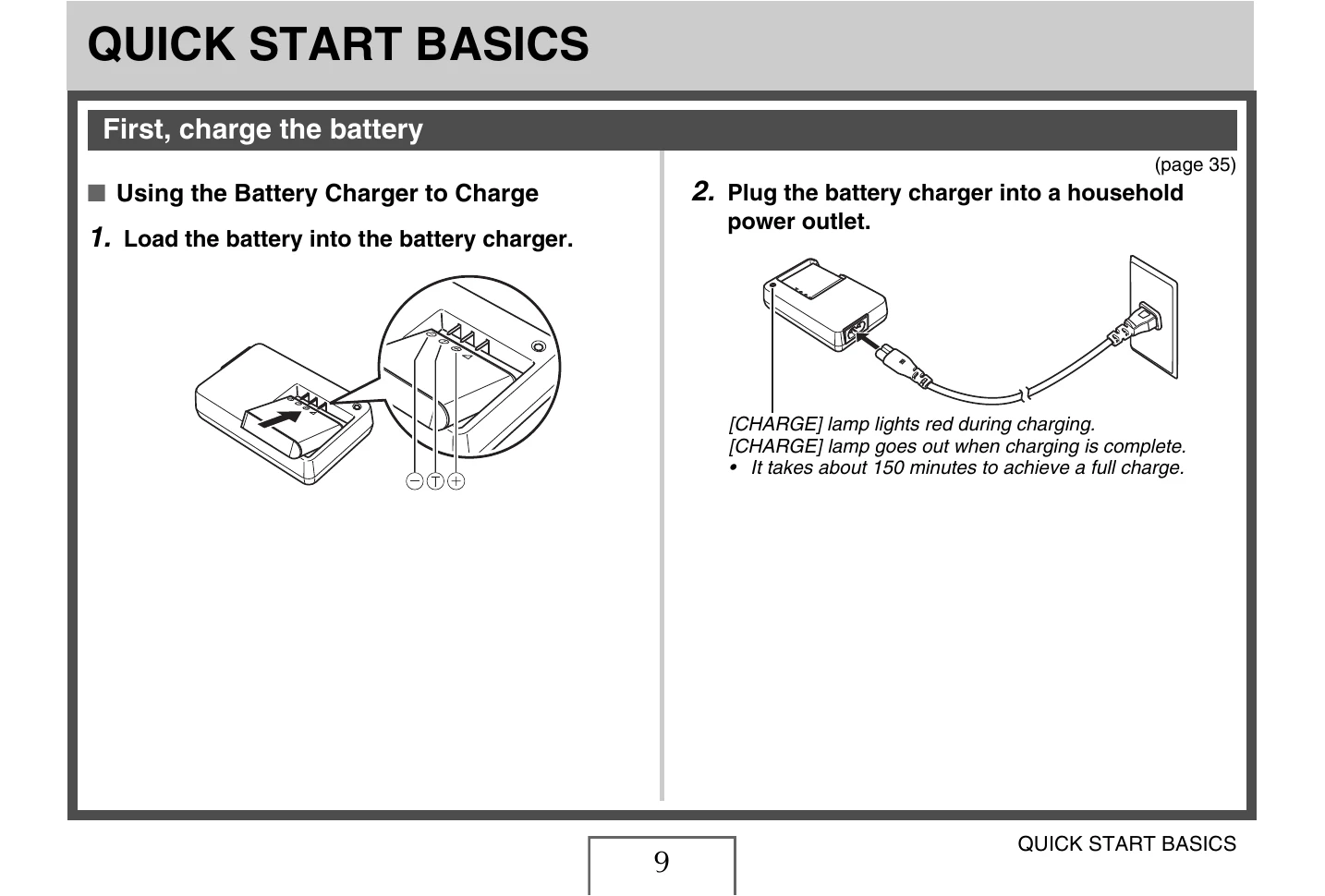

First, charge the battery:

  1. Load the rechargeable lithium-ion battery into the battery charger.
  2. Plug the battery charger into a household power outlet. The [CHARGE] lamp lights red during charging and goes out when charging is complete. Charging takes approximately 150 minutes.

Loading the Battery into the Camera:

  1. Open the battery cover by sliding it in the direction of the arrow.
  2. Load the battery into the camera, ensuring correct orientation.
  3. Close the battery cover.

Configuring Display Language, Date, and Time Settings:

  1. Turn on the camera using the [ON/OFF] button.
  2. Select your desired language, region, city, and daylight saving time settings using the directional buttons and press [SET].
  3. Select the date format and then press [SET].
  4. Set the date and time using the directional buttons and press [SET].
  5. Turn off the camera using the [ON/OFF] button.

Using a Memory Card:

  1. Open the battery cover.
  2. Load a memory card into the camera with the back facing upwards until it clicks.
  3. Close the battery cover.

Formatting a Memory Card:

  1. Turn on the camera.
  2. Press [MENU].
  3. Select the "Set Up" tab using the directional buttons.
  4. Select "Format" and press [►].
  5. Select "Format" and press [SET]. Wait for the process to complete.

Shooting a Snapshot:

  1. Press [] to turn on the camera (REC mode).
  2. Point the camera at the subject.
  3. Half-press the shutter button to focus. The camera will beep and the focus frame will turn green when focus is achieved.
  4. Fully press the shutter button to take the picture.

Viewing Snapshots:

  1. Press [] to enter PLAY mode.
  2. Use [◀] and ] to scroll through images.

Shooting a Movie:

  1. Press [] to enter REC mode.
  2. Press [BS] to select the Movie scene.
  3. Press the shutter button to start recording.
  4. Press the shutter button again to stop recording.

Viewing a Movie:

  1. Press [] to enter PLAY mode.
  2. Use [◀] and ] to select the movie.
  3. Press [SET] to start playback.

Deleting a File:

  1. Press [].
  2. Press [▼] to access the delete function.
  3. Use [◀] and ] to select the file to delete.
  4. Press [▲] to select "Delete" and then press [SET].

Troubleshooting and error codes

Problem Possible Causes and Action
Though available lighting is bright, the faces of people in the image are dark. Not enough light is reaching the subjects. Change the flash mode setting to " " (Flash On) for daylight synchro flash (page 72), or use adjust EV shift to the + side (page 114).
Subjects are too bright when shooting images in a seashore or ski area. Sunlight reflected by water, sand, or snow, can cause underexposure of images. Change the flash mode setting to "" (Flash On) for daylight synchro flash (page 72), or use adjust EV shift to the + side (page 114).
Digital zoom does not work.
The zoom bar indicates zoom only up to a zoom factor of 3.0.		 1) The digital zoom setting may be turned off. Turn on digital zoom (page 71).
2) Time stamping may be turned on, which will cause digital zoom to be disabled. Turn off time stamping (page 125).
The image is out of focus during movie recording. 1) Focusing is not possible because the subject is outside the focus range. Shoot within the allowable range.
2) The subject you are shooting may be difficult to focus (page 68).
3) The lens may be dirty. Clean the lens (page 33).
Playback
The color of the playback image is different from what appears on the monitor screen when shooting.		 Sunlight or light from another source may be shining directly into the lens when you are shooting. Position the camera so sunlight does not shine directly into the lens.
Images are not displayed. This camera cannot display non-DCF images recorded onto a memory card using another digital camera.
I can't edit images (Layout Print, resizing, trimming, keystone correction, color restoration, rotation, white balance, date/time editing). Note that you cannot edit the following types of imagess.
  • Images created with MOTION PRINT
  • Movies
  • Images recorded with another camera
Other
The wrong date and time are displayed.		 The date and time setting is off. Set the correct date and time (page 181).
The messages on the display are in the wrong language. The wrong display language is selected. Change the display language setting (page 185).
I can't transfer images over a USB connection. 1) The USB cable may not be connected securely. Check all connections.
2) USB driver may not be installed. Install the USB driver (page 203).
3) The USB driver may have been installed incorrectly. Reinstall the USB driver correctly (page 203).
4) The wrong USB communication protocol may be selected. Select the correct USB communication protocol in accordance with the type of device you are connecting (page 187).
5) If the camera is not turned on, turn it on.
Display language setting screen appears when the camera is turned on. 1) You did not configure initial settings after purchasing the camera or the battery may have been left with a dead battery. Check the camera setup (pages 11, 185).
2) There may be a problem with the camera's built-in memory management area. If this is the case, perform the reset operation to initialize the camera's setup (page 133). After that, configure each setting. If the language selection screen does not re-appear when you turn the camera on, it means that the camera's built-in memory management area has been restored.
If the same message appears after you turn power back on, contact your retailer or a CASIO service center.
Display Messages
Battery is low.		 Battery power is low.
Cannot correct image! Keystone correction of the image cannot be performed for some reason. The image will be stored as-is, without correction (page 96).
Cannot find the file. The image you specified with the slideshow "Images" setting cannot be found. Change the "Images" setting (page 139) and try again.
Cannot register any more files. • You are attempting to save a BEST SHOT scene when there are already 999 scenes in the "SCENE" folder (page 91).
• You are attempting to copy a FAVORITE file when the “FAVORITE” folder already contains 9999 files (page 172).
Card ERROR There is something wrong with the memory card. Turn off the camera, remove the memory card, and then reload it into the camera. If this message re-appears when you turn the camera back on, format the memory card (page 49).
IMPORTANT!
• Formatting the memory card deletes all its files. Before formatting, try transferring recoverable files to a computer or some other storage device.
Check connections! • You are attempting to connect the camera to a printer while the camera's USB settings are not compatible with the USB system of the printer (page 191).
• You are attempting to connect to a computer that does not have a USB driver installed (page 203).
Files could not be saved because battery is low. Battery power is low, so an image file could not be saved.
Folder cannot be created. You are trying to record a file while there are already 9,999 files stored in the 999th folder. If you want to record more, delete files you no longer need (page 176).
LENS ERROR This message appears and the camera turns off whenever lens performs some unexpected operation. If the same message appears after you turn power back on, contact your retailer or a CASIO service center.
Load paper! The printer ran out of paper while printing.
Memory Full Memory is full with images you recorded and/or of files saved by editing operations. Delete files you no longer need (page 176).
No Favorites file! The FAVORITE folder does not contain any files.
Printing Error An error occurred while printing.
• The printer is turned off.
• The printer generated an error, etc.
Record Error Image compression could not be performed for some reason during image data storage. Shoot the image again.
Replenish ink! During printing, the printer is running low on ink or is out of ink.
RETRY POWER ON If the lens comes into contact with some obstacle, this message appears and the camera turns off. Take action to remove the obstacle, and try turning on power again.
SYSTEM ERROR Your camera system is corrupted. Contact your retailer or an authorized CASIO service center.
The card is locked. The LOCK switch of the SD memory card or SDHC memory card loaded in the camera is in the locked position. You cannot store images to or delete images from a memory card that is locked.
There are no files. There are no files in built-in memory or on the memory card.
There are no printing images. There are currently no files specified for printing. Configure the required DPOF settings (page 195).
There is no image to register. The setup you are trying to save is for an image that cannot be saved as a user BEST SHOT scene.
This card is not formatted. The memory card loaded in the camera is not formatted. Format the memory card (page 49).
This file cannot be played. The file you are trying to access is corrupted or is a type that cannot be displayed by this camera.
This function cannot be used. You attempted to copy images from built-in memory to a memory card while there is no memory card loaded in the camera (page 174).
This function is not supported for this file. The function you are trying to use cannot be performed for some reason.
