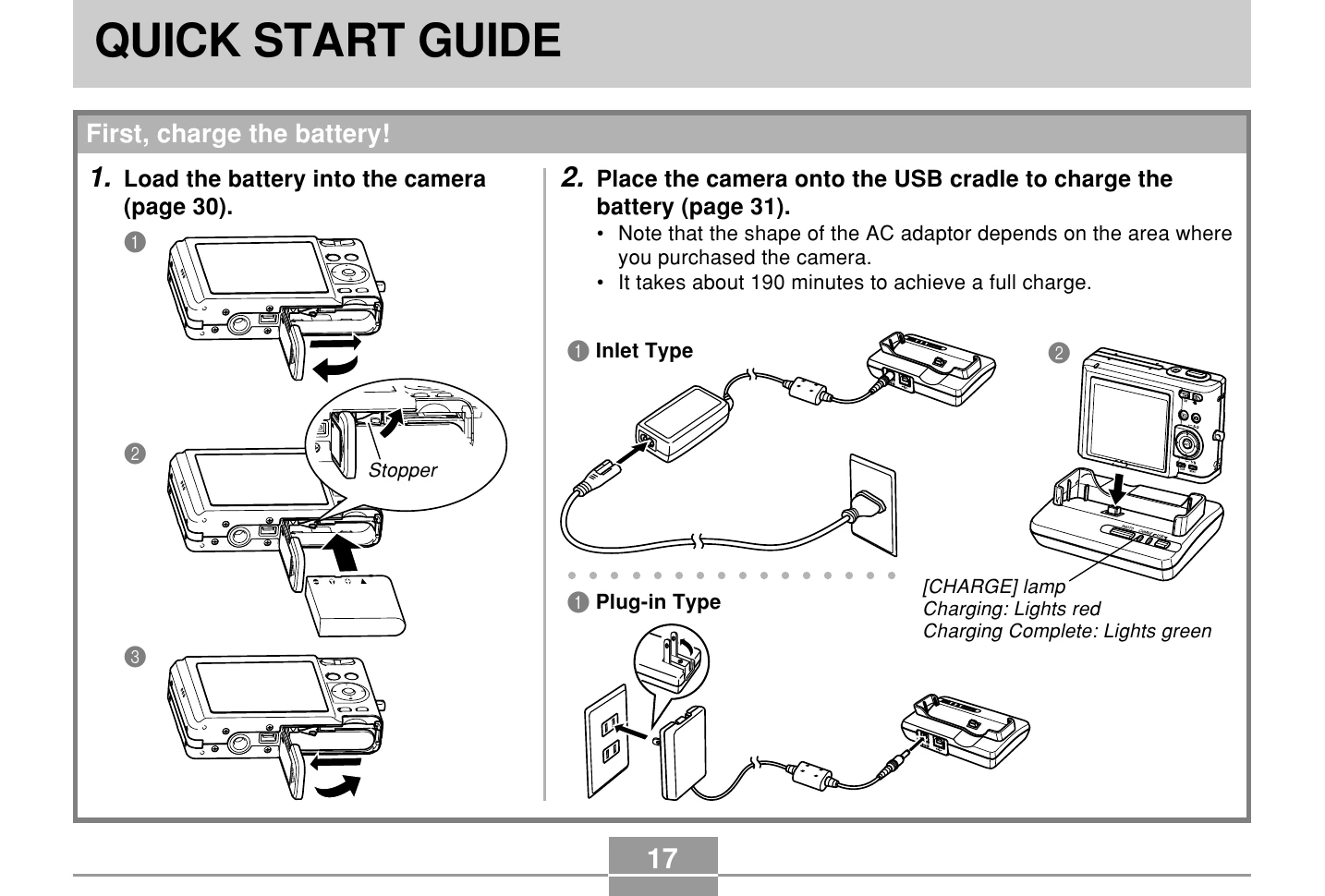

Loading the Battery and Charging

  1. Load the battery into the camera.
  2. Place the camera onto the USB cradle to charge the battery.

Configuring Display Language and Clock Settings

  1. Turn on the camera.
  2. Use the directional buttons to select language, geographical area, city, and summer time settings.
  3. Set the date and time.
  4. Press [SET] to register settings.

Recording an Image

  1. Press [O] (REC) to enter recording mode.
  2. Press [MENU] to access settings.
  3. Select "REC" tab, then "REC Mode" and "Snapshot".
  4. Point camera at subject, compose image, and press shutter button halfway.
  5. Press shutter button fully to capture the image.

Viewing a Recorded Image

  1. Press [▶] (PLAY) to enter playback mode.
  2. Use [◀] and [▶] to scroll through images.

Deleting an Image

  1. Press [▶] (PLAY) to enter playback mode.
  2. Use directional buttons to select and display the image to delete.
  3. Select "Delete" and press [SET].

Troubleshooting and error codes

Symptom Possible Cause Action
Power Supply Power does not turn on. 1) The battery is not oriented correctly.
2) The battery is dead.
1) Orient the battery correctly (page 30).
2) Charge the battery (page 31). If the battery goes dead soon after being charged, it means the battery has reached the end of its life and needs to be replaced. Purchase a separately available NP-40 rechargeable lithium ion battery.		 Camera suddenly powers down.
Image Recording Image is not recorded when the shutter button is pressed. 1) The camera is in the PLAY mode.
2) Flash unit is being charged.
3) Memory is full.
1) Press [] (REC) to enter the currently selected recording mode.
2) Wait until the flash unit finishes charging.
3) Transfer files you want to keep to your computer and then delete files from image memory, or use a different memory card.		 Auto Focus does not focus properly
1) The lens is dirty.
2) The subject is not located in the center of the focus frame when you compose the image.
3) The subject you are shooting is a type that is not compatible with Auto Focus operation (page 55).
4) You are moving the camera.		 1) Clean the lens.
2) Make sure the subject is centered in the focus frame when composing the image.
3) Use manual focus (page 75).
4) Mount the camera on a tripod.
Image Recording The subject is out of focus in the recorded image. When composing the image, make sure the subject on which you want to focus is located inside the focus frame.
The flash does not fire. 1) "" (flash off) is selected as the flash mode.
2) The battery is dead.
3) The camera is in the Movie mode.
4) A scene that selects " " (flash off) as the flash mode is selected in the BEST SHOT mode.
1) Select a different flash mode (page 59).
2) Charge the battery (page 31).
3) Select a different recording mode.
4) Select a different flash mode (page 59) or BEST SHOT scene (page 82).		 Camera powers down during self-timer countdown.
The battery is dead. Charge the battery (page 31).
Monitor screen image is out of focus. 1) You are using the Manual Focus mode and have not focused the image.
2) You are trying to use the Macro mode when shooting a scenery or portrait shot.
3) You are trying to use Auto Focus or the Infinity mode (∞) when shooting a close-up shot.
1) Focus the image (page 75).
2) Use Auto Focus for scenery and portrait shots.
3) Use the Macro mode for close-ups.		 Recorded images are not saved in memory.
1) Camera powers down before the save operation is complete.
2) Removing the memory card before the save operation is complete.		 1) When the battery indicator shows ", charge the battery as soon as possible (page 31).
2) Do not remove the memory card before the save operation is complete.
Vertical lines on the monitor screen. Recording a very brightly lit subject can cause a vertical band to appear in the monitor screen image.
This is a CCD phenomenon known as “vertical smear", and does not indicate malfunction of the camera. Note that vertical smear is not recorded with the image in the case of a snapshot, but it is recorded in the case of a movie.
Movies Noise in audio. Auto Focus, zoom, and aperture operation noise.
Change the focus to Manual Focus or Pan Focus, which will eliminate Auto Focus operation noise (pages 74, 75). Out of focus images.
1) The subject is outside the shooting range of the camera.
2) Subject type is difficult to focus.
3) Subject is not compatible with Auto Focus.		 1) Record within the allowable shooting range.
2) Try changing the focus mode to Manual Focus (page 75) or Pan Focus (page 74).
3) Try pointing the camera at another subject momentarily. This may correct the problem.
Digital noise in images. Sensitivity is increased automatically for dark subjects. Greater sensitivity increases the chance of digital noise.
Use a light or some other means to illuminate the subject.
Playback Color of the playback image is different from the image on the monitor screen during recording. Sunlight or light from another source is shining directly into the lens during recording.
Position the camera so sunlight does not shine directly into the lens. Images are not displayed.
A memory card with non-DCF images recorded with another camera is loaded in the camera. This camera cannot display non-DCF images recorded onto a memory card using another digital camera.
Other All buttons and switches are disabled. Circuit problem caused by electrostatic charge, impact, etc. while the camera was connected to another device.
Remove the battery from the camera, reinsert it, and then try again. Monitor screen is off.
USB communication is in progress. After the computer stops accessing camera file memory, press the [USB] button on the USB cradle. Check to make sure that the [USB] lamp on the USB cradle is off, and then remove the camera from the USB cradle.
Cannot transfer files over a USB connection. 1) Camera is not set securely on the USB cradle.
2) USB cable is not connected securely.
3) USB driver is not installed.
4) Camera is turned off.
1) Check the connection between the camera and USB cradle.
2) Check all connections.
3) Install the USB driver on your computer (page 165).
4) Press the [USB] button on the USB cradle.		 Images captured from a movie on my computer using commercially available software appear coarse and grainy.
The size of movie images recorded by this camera is 320 × 240 pixels. This is roughly equivalent to snapshots recorded with a digital camera with a resolution of 70,000 pixels. To record high-resolution still images, record them as snapshots.
