Manual for EX-Z65

Manual for EX-Z65

Brand: CASIO

Category: Digital Camera

Document Type:

Language: EN

Uploaded: Aug. 9, 2025, 11:38 p.m.

Manual Publish Date: null

Warranty Information

null

\n

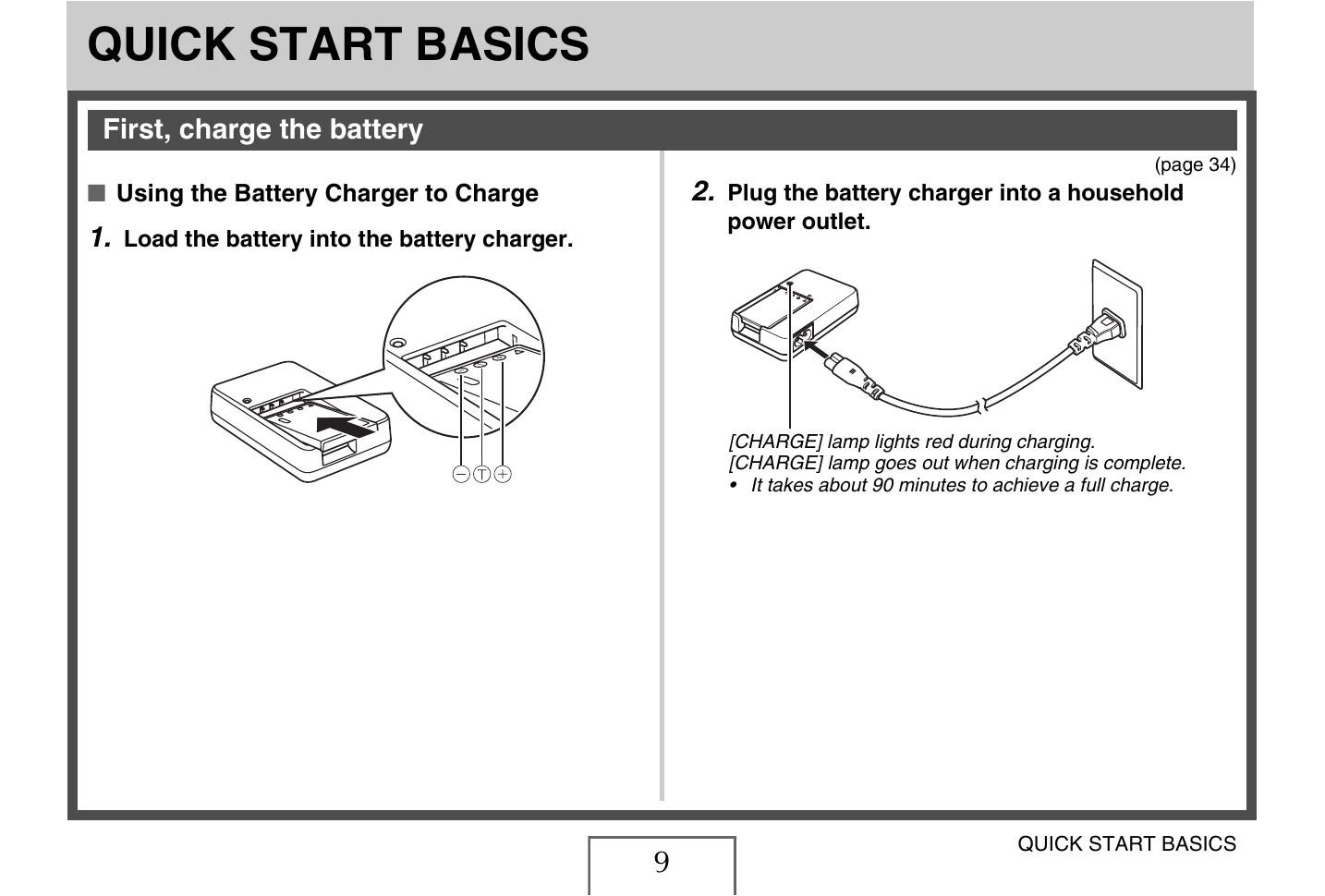

Charging the Battery

\n
    \n
  1. Load the battery into the battery charger.
    2. \n
  2. Plug the battery charger into a household power outlet.
    3. \n
\n

Loading the Battery into the Camera

\n
    \n
  1. Open the battery cover.
    2. \n
  2. Load the battery into the camera.
    3. \n
  3. Close the battery cover.
    4. \n
\n

Configuring Display Language, Date, and Time Settings

\n
    \n
  1. Press [ON/OFF] to turn on the camera.
    2. \n
  2. Select the desired language and press [SET].
    3. \n
  3. Select the area and press [SET].
    4. \n
  4. Select the city and press [SET].
    5. \n
  5. Select the summer time (DST) setting and press [SET].
    6. \n
  6. Select the date format and press [SET].
    7. \n
  7. Set the date and time using the navigation buttons and [SET].
    8. \n
  8. Press [SET] to confirm all settings.
    9. \n
  9. Press [ON/OFF] to turn off the camera.
    10. \n
\n

Using a Memory Card

\n
    \n
  1. Open the battery cover.
    2. \n
  2. Load a memory card into the camera.
    3. \n
  3. Close the battery cover.
    4. \n
\n

Formatting a Memory Card

\n
    \n
  1. Press [ON/OFF] to turn on the camera.
    2. \n
  2. Press [MENU].
    3. \n
  3. Select the \"Set Up\" tab.
    4. \n
  4. Select \"Format\" and press [►].
    5. \n
  5. Select \"Format\" and press [SET].
    6. \n
\n

Shooting a Snapshot

\n
    \n
  1. Press [] to turn on the camera.
    2. \n
  2. Point the camera at the subject.
    3. \n
  3. Half-press the shutter button to focus.
    4. \n
  4. Press the shutter button all the way down to take the picture.
    5. \n
\n

Viewing Snapshots

\n
    \n
  1. Press [] to enter PLAY mode.
    2. \n
  2. Use [◀] and [►] to scroll through images.
    3. \n
\n

Shooting a Movie

\n
    \n
  1. Press [] to enter REC mode.
    2. \n
  2. Press [BS].
    3. \n
  3. Select the \"(Movie)\" scene and press [SET].
    4. \n
  4. Press the shutter button to start recording.
    5. \n
  5. Press the shutter button again to stop recording.
    6. \n
\n

Viewing a Movie

\n
    \n
  1. Press [] to enter PLAY mode.
    2. \n
  2. Use [◀] and [►] to select the movie.
    3. \n
  3. Press [SET] to start playback.
    4. \n
\n

Deleting a File

\n
    \n
  1. Press [].
    2. \n
  2. Press [▼].
    3. \n
  3. Use [◀] and [►] to select the file to delete.
    4. \n
  4. Press [▲] to select \"Delete\".
    5. \n
  5. Press [SET] to confirm deletion.
    6. \n
\n

Troubleshooting and error codes

Problem Possible Causes and Action
The flash does not fire. 1) If "" (Flash Off) is selected as the flash mode, change to another mode (page 71).
2) If the battery is dead, charge it (page 34).
3) If a BEST SHOT scene that uses the " " (Flash Off) flash mode is selected, change to a different flash mode (page 71) or select a different BEST SHOT scene (page 84).
Camera powers down during self-timer countdown. The battery may be dead. Charge the battery (page 34).
The monitor screen image is out of focus. 1) You may be using Manual Focus and have not focused the image. Focus the image (page 104).
2) You may be using the macro mode for scenery or portraits. Use Auto Focus for scenery and portrait shots (page 98).
3) You may be trying to use Auto Focus or the Infinity Mode when shooting a close-up shot. Use the Macro Mode for close ups (page 99).
There is a vertical line on the monitor screen. Shooting a very brightly lit subject can cause a vertical band to appear in the monitor screen image. This is a CCD phenomenon known as “vertical smear”, and does not indicate malfunction of the camera. Note that vertical smear is not recorded with the image in the case of a snapshot, but it is recorded in the case of a movie.
There is digital noise in images. 1) Sensitivity may have been increased automatically for a dark subject, which increases the chance of digital noise. Use a light or some other means to illuminate the subject.
2) You may be attempting to shoot in a dark location while "" (Flash Off) is selected as the flash mode, which can increase digital noise and make images appear coarse. In this case, change to a different flash mode (page 71) or use lights for illumination.
3) Flash assist may be enabled for snapshots, which can cause an increase in digital noise. Use a light or some other means to illuminate the subject.
An image I shot was not saved. 1) Camera power may have been turned off before the save operation was complete, which will result in the image not being saved. When the battery indicator shows “ ", charge the battery as soon as possible (page 34).
2) You may have removed the memory card from the camera before the save operation was complete, which will result in the image not being saved. Do not remove the memory card before the save operation is complete.
Though available lighting is bright, the faces of people in the image are dark. Not enough light is reaching the subjects. Change the flash mode setting to " " (Flash On) for daylight synchro flash (page 71), or use adjust EV shift to the + side (page 106).
Subjects are too bright when shooting images in a seashore or ski area. Sunlight reflected by water, sand, or snow, can cause underexposure of images. Change the flash mode setting to " " (Flash On) for daylight synchro flash (page 71), or use adjust EV shift to the + side (page 106).
Digital zoom does not work. The zoom bar indicates zoom only up to a zoom factor of 3.0. 1) The digital zoom setting may be turned off. Turn on digital zoom (page 70).
2) Time stamping may be turned on, which will cause digital zoom to be disabled. Turn off time stamping (page 115).
The image is out of focus during movie recording. 1) Focusing is not possible because the subject is outside the focus range. Shoot within the allowable range.
2) The subject you are shooting may be difficult to focus (page 67).
3) The lens may be dirty. Clean the lens (page 32).
Playback
The color of the playback image is different from what appears on the monitor screen when shooting. Sunlight or light from another source may be shining directly into the lens when you are shooting. Position the camera so sunlight does not shine directly into the lens.
Images are not displayed. This camera cannot display non-DCF images recorded onto a memory card using another digital camera.
I can't edit images (resizing, trimming, keystone correction, color restoration, rotation, date/time editing). Note that you cannot edit the following types of imagess.
• Images created with MOTION PRINT
• Movies
• Images recorded with another camera
Other
The wrong date and time are displayed. The date and time setting is wrong. Set the correct date and time (page 165).
The messages on the display are in the wrong language. The wrong display language is selected. Change the display language setting (page 169).
I can't transfer images over a USB connection. 1) The USB cable may not be connected securely. Check all connections.
2) USB driver may not be installed. Install the USB driver (page 186).
3) The USB driver may have been installed incorrectly. Reinstall the USB driver correctly (page 186).
4) The wrong USB communication protocol may be selected. Select the correct USB communication protocol in accordance with the type of device you are connecting (page 170).
5) If the camera is not turned on, turn it on.
Display language setting screen appears when the camera is turned on. 1) You did not configure initial settings after purchasing the camera or the battery may have been left with a dead battery. Check the camera setup (pages 11, 165).
2) There may be a problem with the camera's built-in memory management area. If this is the case, perform the reset operation to initialize the camera's setup (page 124). After that, configure each setting. If the language selection screen does not re-appear when you turn the camera on, it means that the camera's built-in memory management area has been restored.
If the same message appears after you turn power back on, contact your retailer or a CASIO service center.
