Basic Operation Summary
Recording Images:
- Enter Record Mode (REC).
- Turn on the camera using the POWER switch.
- Set NORMAL/MACRO switch as needed.
- Select resolution (FINE/NORMAL) using the MODE button.
- Compose the image on the LCD and press the shutter button.
- A "WAIT" message appears for about six seconds after recording.
Playback Images:

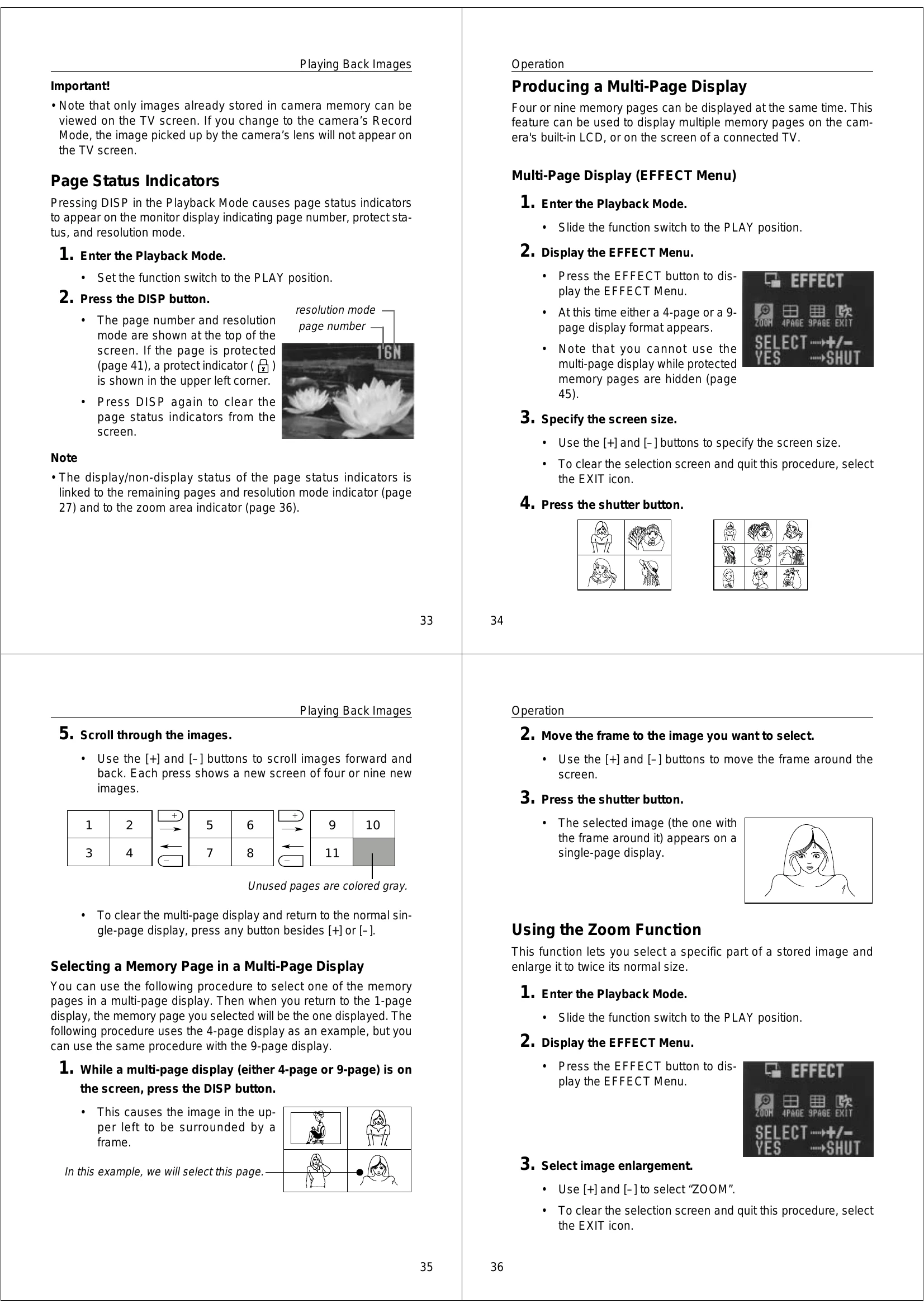

- Enter Playback Mode (PLAY) and turn on the camera.
- Use [+] and [-] buttons to scroll through images.
- Press DISP in Playback Mode to view page status indicators.
- EFFECT Menu allows for multi-page display and zoom functions.
Auto Play:
- Hold [+] and [-] buttons in Playback Mode to start Auto Play.
- Press shutter button to stop.
- Adjust speed using MODE button and [+] / [-] buttons.
Troubleshooting and error codes
| Symptom | Probable Cause | Action |
|---|---|---|
| No power | 1. Batteries not loaded correctly. | 1. Correctly load batteries (page 13). |
| 2. Dead batteries | 2. Replace batteries with new ones (page 13). | |
| 3. Wrong AC adaptor | 3. Use only recommended AC adaptor. | |
| Sudden power failure | 1. Operation of Auto Power Off | 1. Turn power back on. |
| 2. Low battery power Use of manganese batteries. | 2. Replace batteries with new ones (page 13). Replace manganese batteries with alkaline batteries. | |
| indicator Low battery power on LCD | Low battery power | Replace batteries (page 13). |
| No recording when shutter button is pressed | Function switch sets to PLAY. | Set function switch to REC. |
| Power failure during self-timer operation | Low battery power indicator | Replace batteries (page 13). |
| Indicator O on LCD | Over exposure | Change aperture switch setting to [] (page 26). |
| Indicator O on LCD | Under exposure | Change aperture switch setting to [O] (page 26). |
| Poor LCD image focus | Incorrect NORMAL/MACRO switch setting | Use NORMAL for scenery and group photos, and MACRO for close-ups (page 24). |
| Poor color and brightness when indoors | Indoor fluorescent lighting | Shoot under incandescent or other non-fluorescent lighting (page 21). |
| Recorded image has greenish tinge. | Strong direct or reflected sunlight | Change aperture setting to []. Note that this condition is due to CCD characteristics, and does not indicate camera malfunction. |
| Color of recorded image is strange. | 1. Reflection from sunlight or light from another source | 1. Reorient the camera so that light is not shining directly into lens. |
| 2. Difference between Record Mode and Playback Mode characteristics. | 2. This difference does not indicate a problem or malfunction. | |
| No +/- button operation during multi-page display | Button operation during page change | Wait until an image is on the LCD before performing a button operation. |
| All pages do not appear during auto play. | Protected memory pages are hidden. | Unhide protected memory pages (page 45). |
| Camera is connected to a TV, but LCD monitor contents do not appear on TV screen. | 1. Function switch set to PLAY (page 31). | 1. Set function switch to REC. |
| 2. Incorrect camera-TV connection | 2. Connect correctly using the special video cable that comes with the camera (page 32). | |
| 3. Wrong TV set up | 3. Set up the TV correctly. | |
| Some images are missing. | Protected memory pages are hidden. | Unhide protected memory pages by holding down [-] while turning power on (page 45). |
| Cannot use multi-page display. | Protected memory pages are hidden. | Unhide protected memory pages by holding down [-] while turning power on (page 45). |
| Cannot protect memory pages. | Protected memory pages are hidden. | Unhide protected memory pages by holding down [-] while turning power on (page 45). |
| ALL DATA IS PROTECTED! stays on monitor and images do not appear. | Protected memory pages are hidden. | Unhide protected memory pages by holding down [-] while turning power on (page 45). |
| Deletion Delete operation does not start when DEL is pressed. | 1. All pages are protected. | 1. Unprotect the page you want to delete (page 43). |
| 2. Multi-page display (page 34) or zoom display (page 36) | 2. Change to a normal-size, 1-page display format. | |
| All buttons and switches do not operate. | Malfunction due to static electrical charge or strong impact | Remove batteries and disconnect the AC adaptor if you are using one. Restore power and turn the camera on. If this does not work, contact your dealer or an authorized CASIO service provider. |
| Very bright or very dark LCD image. | Wrong BRIGHT setting | Adjust the BRIGHT setting (page 11). |
| No buttons or switches operate. | Malfunction due to exposing camera to electrostatic charge. | Remove batteries and/or unplug the AC adaptor. Reload batteries and/or plug in AC adaptor and try operation again. |
| LCD monitor is too bright or too dark. | Incorrect BRIGHT setting | Adjust the BRIGHT setting (brightness) setting. |
| Cannot exchange data between two cameras | 1. Incorrect cable connection | 1. Connect correctly (page 51). |
| 2. Camera connected to power is not turned on. | 2. Turn power on after connecting cable. | |
| 3. Function switch sets to REC. | 3. Set function switch to PLAY (page 31). | |
| Pressing MODE does not change the FINE→NORMAL Menu. | There are no convertible images in memory. | There are no convertible images in memory. |
| Cannot transfer data (error keeps occurring) | 1. Sending camera's function switch is in REC position. | 1. Correct the situation and try again. |
| 2. Receiving camera's function switch is in REC position. | 2. Correct the situation and try again. | |
| 3. Receiving camera's function switch is in PLAY. | 3. Change function switch setting of receiving camera to PLAY (page 31). | |
| 4. The message "ALL DATA IS PROTECTED" is on the monitor of the sending camera. | 4. The sending camera's protected memory pages are hidden (while turning power on) [-] button Unhide protected memory pages by holding down [-] while turning power on (page 45). | |
| 5. Low battery (indicated by 1) | 5. Replace batteries or use the AC adaptor (page 13). | |
| 6. Disconnection of cable during data communication | 6. Securely reconnect the cable. | |
| Keys of connected camera are disabled. | Connected camera operation is disabled during data communications. | Normal operation will return when you exit data communications by pressing EXIT. |
