Warranty Information

Refer to the manual for warranty details, as it is not explicitly stated in the provided text.

  • Recording Images: Enter Record Mode, turn on camera, set NORMAL/MACRO switch, select resolution (FINE/NORMAL), and press the shutter button.
  • Playing Back Images: Enter Playback Mode, scroll through pages using [+] and [-] buttons. Connect to TV via video cable for larger display.
  • Protecting Memory Pages: Navigate to PROTECT Menu, select PAGE or ALL, and press shutter to protect images.
  • Deleting Images: Access DELETE Menu, select PAGE or ALL, and confirm deletion.

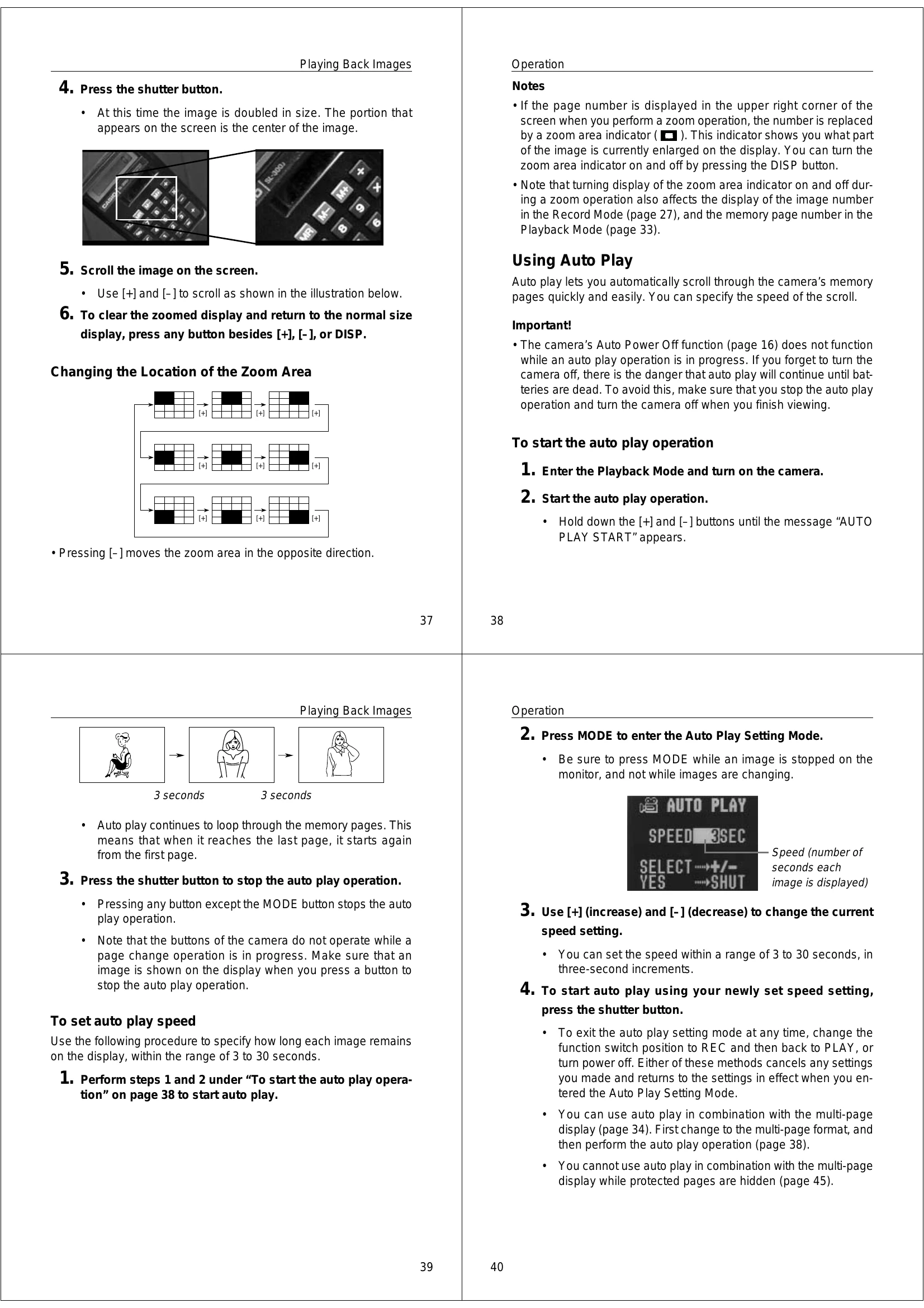

  • Using Auto Play: In Playback Mode, hold [+] and [-] to start Auto Play. Press shutter to stop. Adjust speed via MODE button.
  • Connecting Devices: Use VIDEO OUT or DIGITAL terminals to connect to TVs, computers, or printers with appropriate cables.

Troubleshooting and error codes

Symptom Probable Cause Action
No power 1. Batteries not loaded correctly.
2. Dead batteries
3. Wrong AC adaptor		 1. Correctly load batteries (page 13).
2. Replace batteries with new ones (page 13).
3. Use only recommended AC adaptor.
Sudden power failure 1. Operation of Auto Power Off
2. Low battery power
Use of manganese batteries.		 1. Turn power back on.
2. Replace batteries with new ones (page 13).
Replace manganese batteries with alkaline batteries.
Power will automatically turn off shortly. Low battery power Replace all four batteries with a set of new ones (page 13).
No recording when shutter button is pressed Function switch sets to PLAY. Set function switch to REC.
Power failure during self-timer operation Low battery power Replace batteries (page 13).
indicator on LCD Over exposure Change aperture switch setting to [] (page 27).
O indicator on LCD Under exposure Change aperture switch setting to [O] (page 27).
Poor LCD image focus Incorrect NORMAL/MACRO switch setting Use NORMAL for scenery and group photos, and MACRO for close-ups (page 24).
Poor color and brightness when indoors Indoor fluorescent lighting Shoot under incandescent or other non-fluorescent lighting (page 21).
Recorded image has greenish tinge. Strong direct or reflected sunlight Change aperture setting to []. Note that this condition is due to CCD characteristics, and does not indicate camera malfunction.
Color of recorded image is strange. 1. Reflection from sunlight or light from another source
2. Difference between Record Mode and Playback Mode characteristics.		 1. Reorient the camera so that light is not shining directly into lens.
2. This difference does not indicate a problem or malfunction.
Playback No +/- button operation during multi-page display Button operation during page change Wait until an image is on the LCD before performing a button operation.
All pages do not appear during auto play. Protected memory pages are hidden. Unhide protected memory pages (page 45).
