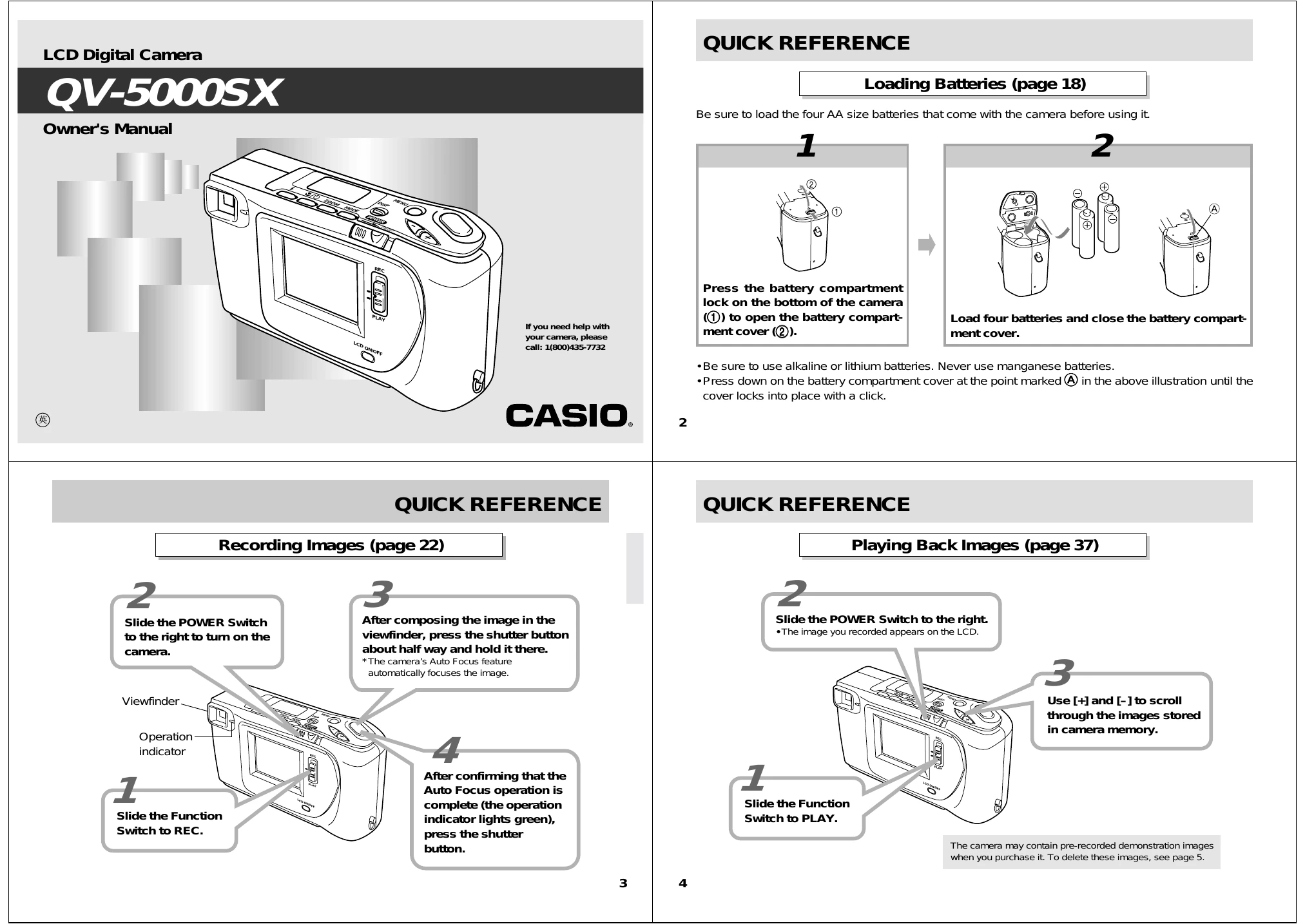

Manual for QV-5000SX
Uploaded: Aug. 9, 2025, 11:42 p.m.
Loading Batteries: Press the lock on the bottom to open the compartment, load four AA alkaline or lithium batteries, and close the cover until it clicks.
Recording Images: Slide POWER to ON. Slide Function Switch to REC. Compose image in viewfinder, press shutter halfway to focus. Wait for green indicator, then press shutter fully.
Playing Back Images: Slide Function Switch to PLAY. Use [+] and [-] to scroll through stored images.
Troubleshooting and error codes
| Symptom | Probable Cause | Action |
|---|---|---|
| No power |
1. Batteries not loaded correctly. 2. Dead batteries 3. Wrong AC adaptor |
1. Correctly load batteries (page 18). 2. Replace batteries with new ones (page 18). 3. Use only recommended AC adaptor. |
| Sudden power failure |
1. Auto Power Off 2. Low battery power 3. Use of manganese batteries. |
1. Turn power back on. 2. Replace batteries with new ones (page 18). 3. Replace manganese batteries with alkaline bat-teries. |
| Indicator on LCD | Batteries are about to go dead. | Replace all four batteries with a set of new ones (page 18). |
| No recording when shutter button is pressed |
1. Function Switch set to PLAY. 2. Flash unit is charging. 3. The message "MEMORY FULL" is on the monitor screen. 4. The message "REMAINING" is on the monitor screen. |
1. Set Function Switch to REC. 2. Wait until flash unit charging is finished. 3. Delete images you no longer need from camera memory. 4. Change to another resolution mode, or delete images you no longer need from camera memory. |
| Auto Focus cannot focus the image. |
1. Lens or distance sensor is dirty. 2. The object you want to focus is not in the focus frame. 3. Conditions make it impossible to obtain proper focus. |
1. Clean off the lens or distance sensor. 2. Aim the camera so the object you want to focus is in inside the focus frame. 3. Switch to the Manual Mode and focus manually. |
| Power failure during self-timer operation | Low battery power | Replace batteries (page 18). |
| Monitor screen image is out of focus. |
1. Failure to focus the image while the camera is in the Manual Mode. 2. Camera is in the Macro Mode. 3. Camera is in the Normal Mode while the subject is too close. |
1. Focus the image before recording it. 2. Use the Normal Mode for scenery and group shots. 3. Use the Macro Mode for close ups. |
| Poor color and brightness when indoors | Indoor fluorescent lighting | Shoot under incandescent or other non-fluorescent lighting (page 24). |
| Part of the image is missing. |
1. Blocking of the lens when recording. 2. Failure to correctly center the object when aiming through the viewfinder. |
1. Hold the camera correctly, making sure that your finger or the wrist strap is not blocking the lens. 2. Take particular care under the following conditions, which can cause the recorded image to be slightly different from the image that appears in the viewfinder. • Macro photography For more precise image composition, use the LCD monitor screen instead of the viewfinder. • Aiming at an angle that is diagonal to the viewfinder's optical axis. It is best to point the lens directly at the subject, and not at an angle. |
| Cannot perform movie recording. |
1. Movie Record Mode is not selected. 2. Insufficient camera memory capacity. |
1. Press MODE to enter the Movie Record Mode (page 31). 2. Delete images you no longer need from camera memory, so there are at least two images worth of free memory capacity (page 57). |
| Deletion | Color of recorded image is strange. | Reflection from sunlight or light from another source |
| No +/- button operation during multi-page display | Button operation during page change | Wait until an image is on the LCD before performing a button operation. |
| Camera is connected to a TV, but LCD monitor contents do not appear on TV screen. |
1. Incorrect camera-TV connection 2. Wrong TV set up 3. Wrong video mode is selected. |
1. Connect correctly using the video cable (page 64). 2. Set up the TV correctly. 3. Change the video mode. |
| Delete operation does not operate. | All pages are protected. | Unprotect the page you want to delete (page 54). |
| Other | Menu icon is blue and nothing happens when it is selected. | Indicates function not available during playback. Select a different function or change to the Record Mode. |
| All buttons and switches do not operate. | • Memory full • Malfunction due to static electrical charge or strong impact. • Camera is connected to a computer or QV Color Printer. • Activation of the screen saver |
Remove batteries and disconnect the AC adaptor if you are using one. Restore power and turn the camera on. If this does not work, contact your dealer or an authorized CASIO service provider. Turn off screen saver (page 45). |
| Nothing appears on the monitor screen. |
1. Monitor screen is turned off. 2. Video cable connected to the VIDEO OUT terminal. |
1. Press the LCD button to turn on the monitor screen. 2. Disconnect the video cable. The monitor screen is disabled while it is connected. |
| Auto Play starts even though it is not selected. |
