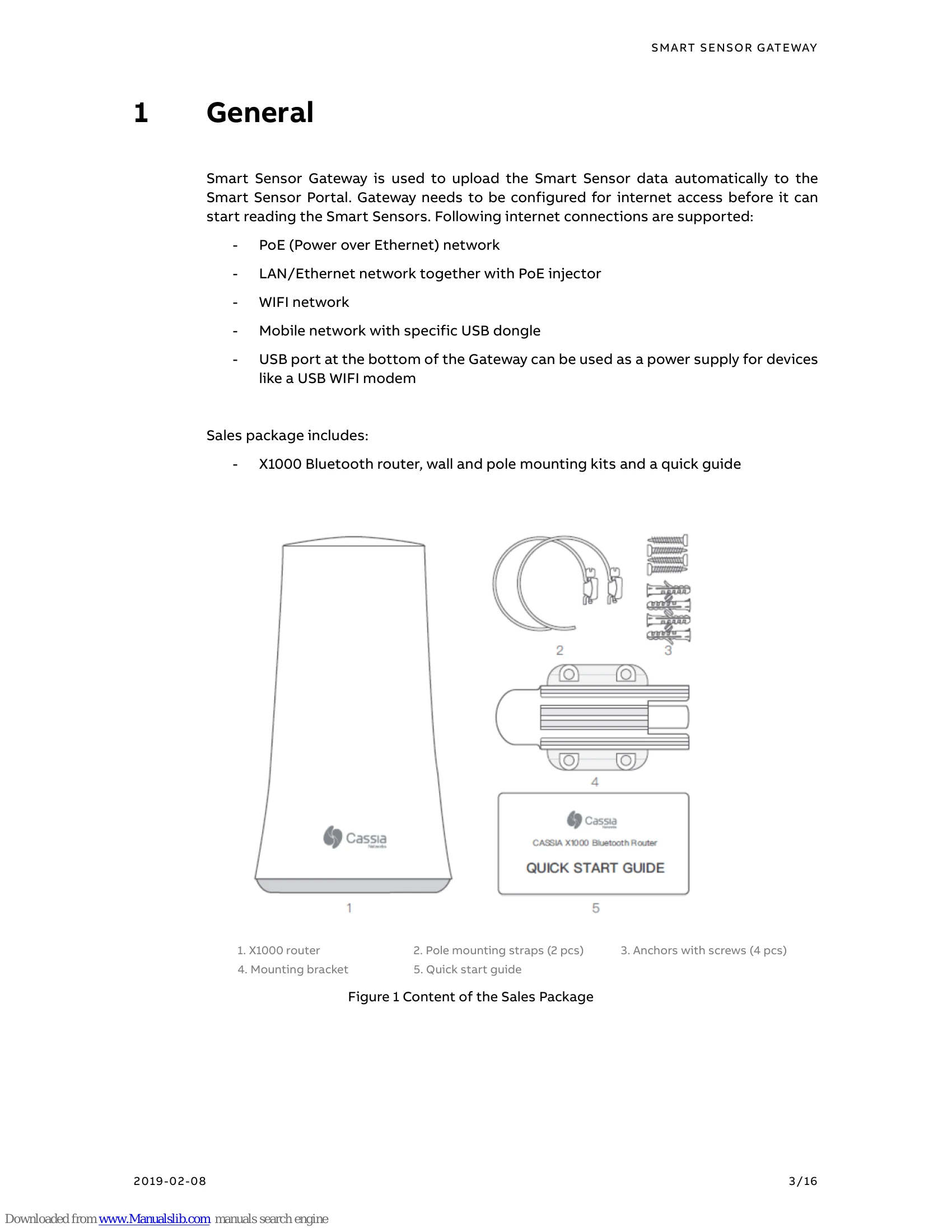

The Smart Sensor Gateway (X1000) by Cassia Networks is designed to upload Smart Sensor data to the Smart Sensor Portal. It requires internet connectivity, which can be established via PoE, LAN/Ethernet with a PoE injector, Wi-Fi, or a 3G/4G mobile network using a compatible USB dongle. The gateway can also be powered via its USB port. Initial configuration involves connecting to the gateway's Wi-Fi hotspot and accessing a web interface. The manual details various connection methods, gateway configuration, scanning Bluetooth devices, and troubleshooting common issues.

Troubleshooting and error codes

Issue	Solution
Forgetting the login credentials or making a mistake while configuring the WIFI network SSID or password:	Press the reset button for 10 seconds while the Gateway is powered on. This will reset all Gateway settings to factory default values. Reset button is located at the bottom of the Gateway.
Gateway does not generate the WIFI hotspot for setup:	Check the power supply and that the blue LED is ON at the bottom of the Gateway. If the Gateway is configured to use a WIFI network, it does not generate a WIFI hotspot. Try to reset the Gateway by pressing the reset button for 10 seconds while the Gateway is powered on. Reset button is located at the bottom of the Gateway.
Gateway does not connect to AC server:	Check the internet access. In case a USB dongle is used, check the model is supported by the Gateway and that the dongle has established a connection to a mobile network. Check that the used network does not use VPN. Check the used network firewall settings.
Gateway is not reading the Smart Sensor data:	Check that the Smart Sensors are within the Gateway's range. During the first use it can take up to few hours to get the first readings to the Smart Sensor Portal. Check from the Status Page if it shows the Online Time. If not, please check the internet connection.
