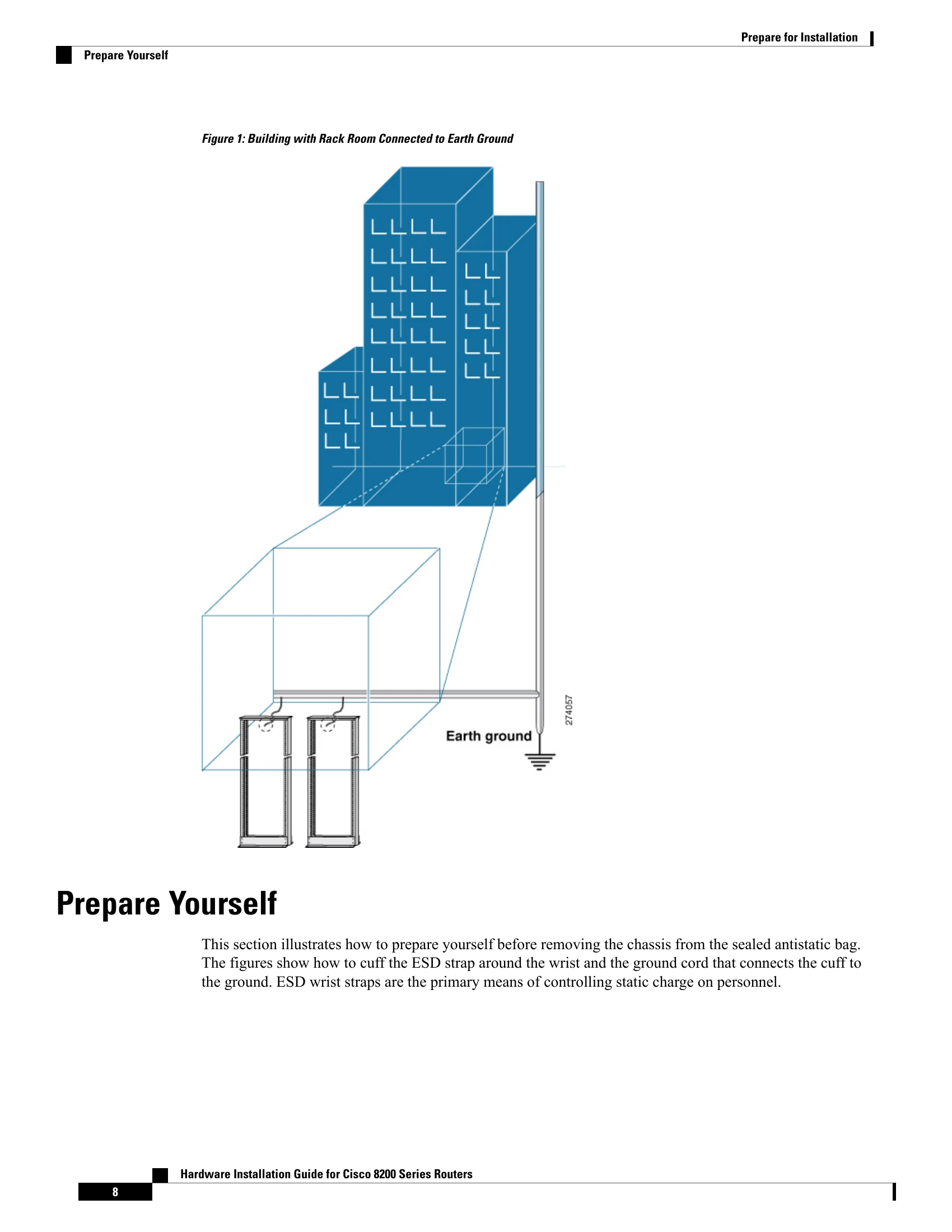

This manual provides comprehensive instructions for the installation of Cisco 8200 Series Routers. It covers essential steps such as preparing the installation site, handling electrostatic discharge precautions, preparing the rack, and mounting the chassis. The guide details connecting the router to the network, including interface port connections and initial router configuration. It also explains how to install and remove transceiver modules and troubleshoot basic connectivity. Additionally, procedures for replacing chassis components like fan modules and power supplies are outlined, along with an explanation of the various LEDs on the chassis, fan tray, power supply, and ports to indicate operational status and potential issues.

Troubleshooting and error codes

Command Description
show platform Displays the operational status of the node.
show inventory Displays information about the field replaceable units (FRUs), including product IDs, serial numbers, and version IDs.
show environment Displays all the environment-related router information.
show environment temperature Displays temperature readings from the various sensors on the router. Each system controller has temperature sensors with two thresholds:
  • Minor temperature threshold – When a minor threshold is exceeded, a minor alarm occurs and the following actions occur for all temperature thresholds:
    • displays system messages
    • sends SNMP notifications (if configured)
    • log environmental alarm event that can be reviewed by running the show alarms command. Users can use the show alarms brief system active command to verify active alarms in the system.
  • Major temperature threshold – When a major threshold is exceeded, a major alarm occurs and the following actions occur:
    • displays system messages
    • sends SNMP notifications (if configured)
    • log environmental alarm event that can be reviewed by running the show alarms command. Users can use the show alarms brief system active command to verify active alarms in the system.
  • Critical temperature threshold – When a critical threshold is exceeded, a critical alarm occurs and the following actions occur:
    • displays system messages.
    • sends SNMP notifications (if configured).
    • logs environmental alarm event that can be reviewed by running the show alarms command. Users can use the show alarms brief system active command to verify active alarms in the system.
    • triggers a chassis shutdown.
show environment power Displays power usage information for entire router.
show environment voltage Displays voltage for entire router.
show environment current Displays current reading from various sensors.
show environment fan Displays status of fan trays.
show media Displays media information of the node.
