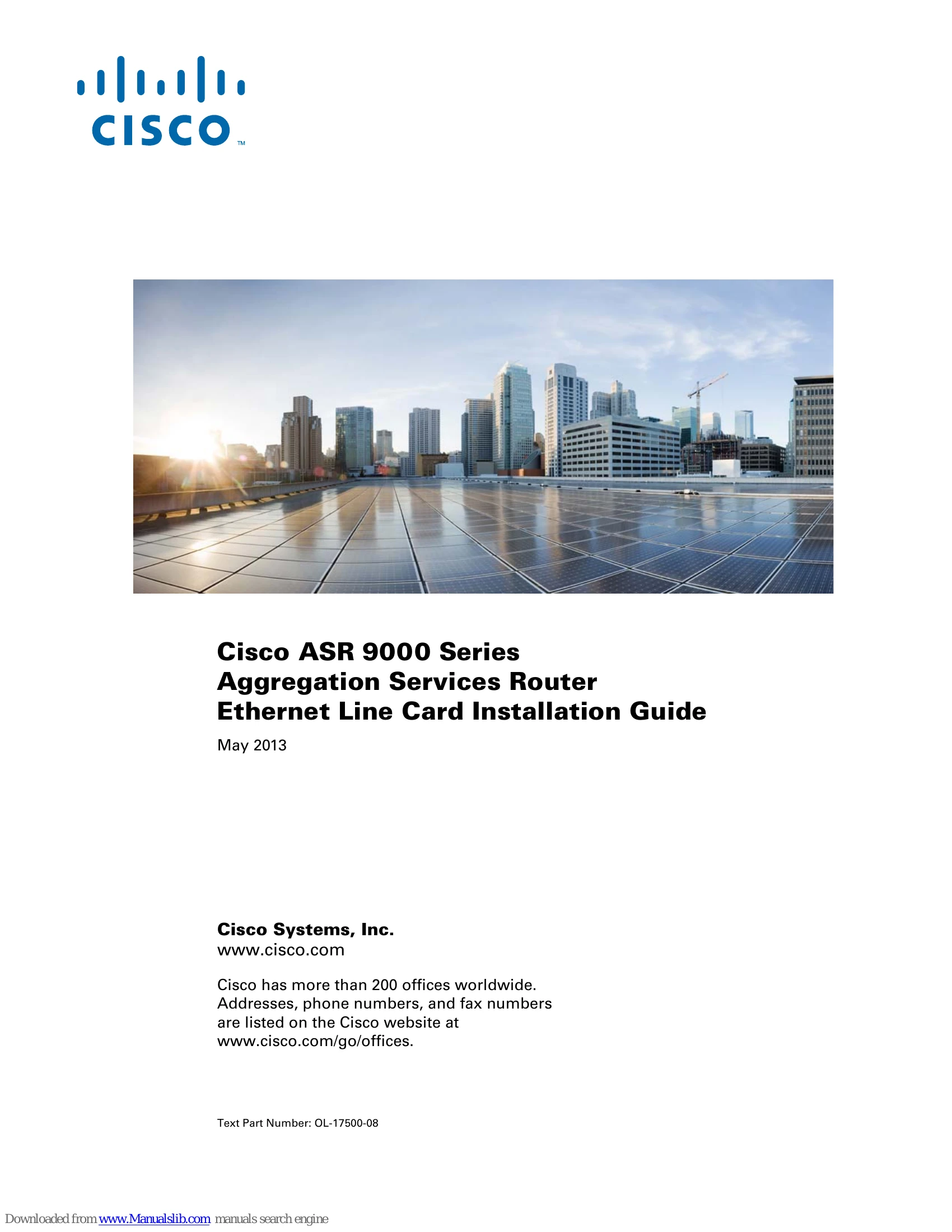

Installation Guide for ASR 9000
Uploaded: Sept. 12, 2025, 4:25 a.m.
Manual Publish Date: 2013-05-01
Warranty Information
Warranty information is detailed in a separate document.
Installation guide contains procedures for installing line cards into the router, verifying the installation, and creating a basic startup configuration file.
Troubleshooting and error codes
| Description | Value |
|---|---|
| Operating Temperature:¹ | 41° to 104°F (5° to 40°C) |
| Operating Temperature1,2 (Short term) 3,4: | 23° to 131° F (-5° to 55°C) |
| Nonoperating Temperature | -4° to 149°F (-20° to 65°C) |
| Humidity | Operating: 10 to 85 percent noncondensing Nonoperating: 5 to 95 percent noncondensing |
| Altitude 5 | Operating: 0 to 13,000 ft (0 to 4,000 m) Nonoperating: 0 to 15,000 ft (0 to 4,570 m) |
| Power Dissipation (Cisco ASR 9010 Router) | 7600 W maximum |
| Power Dissipation (Cisco ASR 9006 Router) | 4556 W maximum |
| Acoustic noise | 78 dB at 80.6°F (27°C) maximum |
| Shock | Operating (halfsine): 21 in/sec (0.53 m/sec) Nonoperating (trapezoidal pulse): 20 G6, 52 in/sec (1.32 m/sec) |
| Vibration | Operating: 0.35 Grms7 from 3 to 500 Hz Nonoperating: 1.0 Grms from 3 to 500 Hz |
