Installation Guide for C9300X

Power Supply Modules Overview

The switch operates with either one or two active power supply modules. A switch that is part of a StackPower stack operates with power that is supplied by other stack switches. Two power supply modules can be powered up from two different phases.

You can use two AC modules or one module and blank cover. All power supply modules have internal fans. All switches ship with a blank cover in the second power supply slot.

The following table describes the supported internal power supply modules. It lists the Platinum certified power supply modules and the default modules that are shipped with the switch. In a switch, a mix of Platinum certified and non-Platinum certified power supply modules is supported.

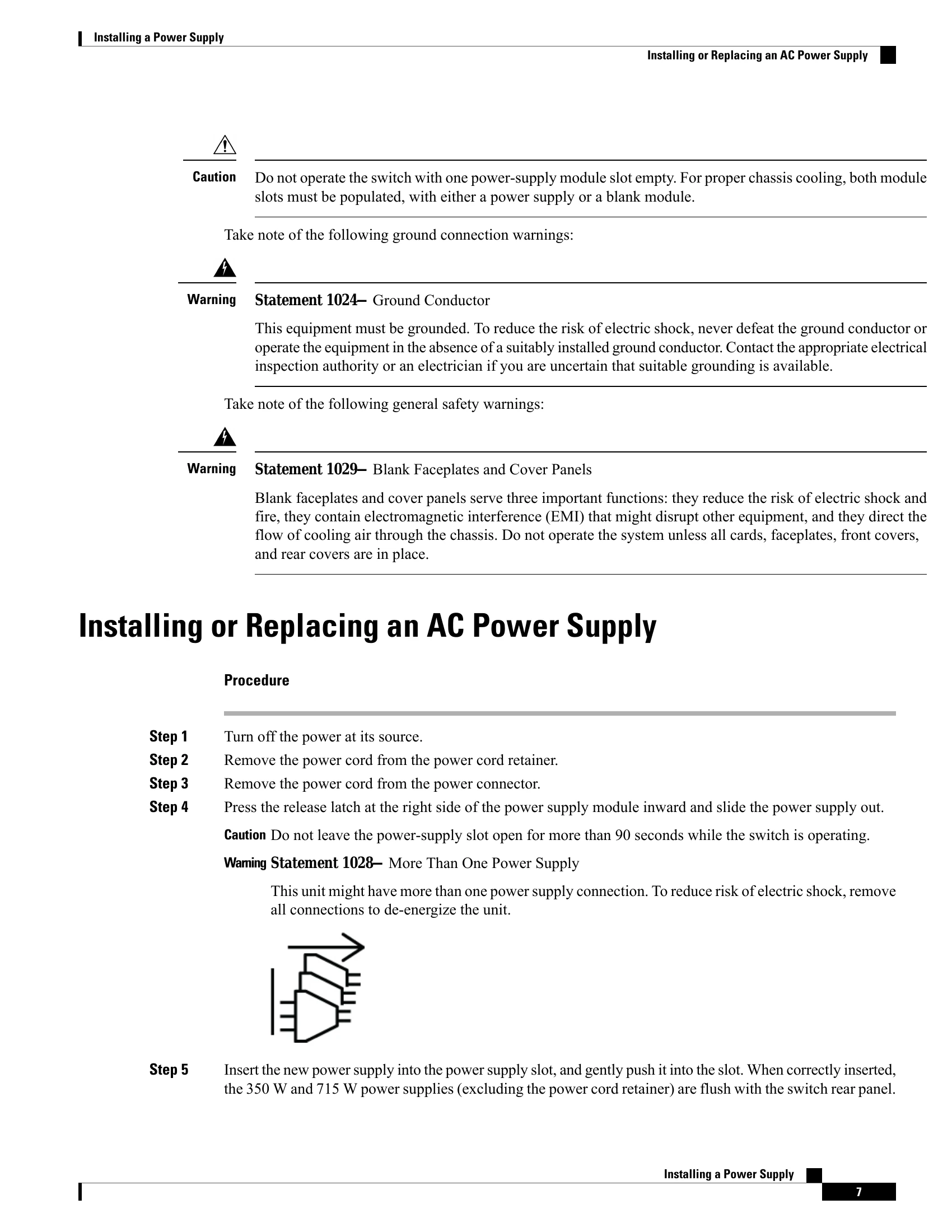

Installing or Replacing an AC Power Supply

Procedure:

1. Turn off the power at its source.
2. Remove the power cord from the power cord retainer.
3. Remove the power cord from the power connector.
4. Press the release latch at the right side of the power supply module inward and slide the power supply out.
5. Insert the new power supply into the power supply slot, and gently push it into the slot.
6. (Optional) Make a loop in the power cord and thread it through the power cord retainer or use the cable-tie retainer clip on the 1900 W supply.
7. Connect the power cord to the power supply and to an AC power outlet. Turn on the power at the power source.
8. Confirm that the power supply AC OK and PS OK LEDs are green.
