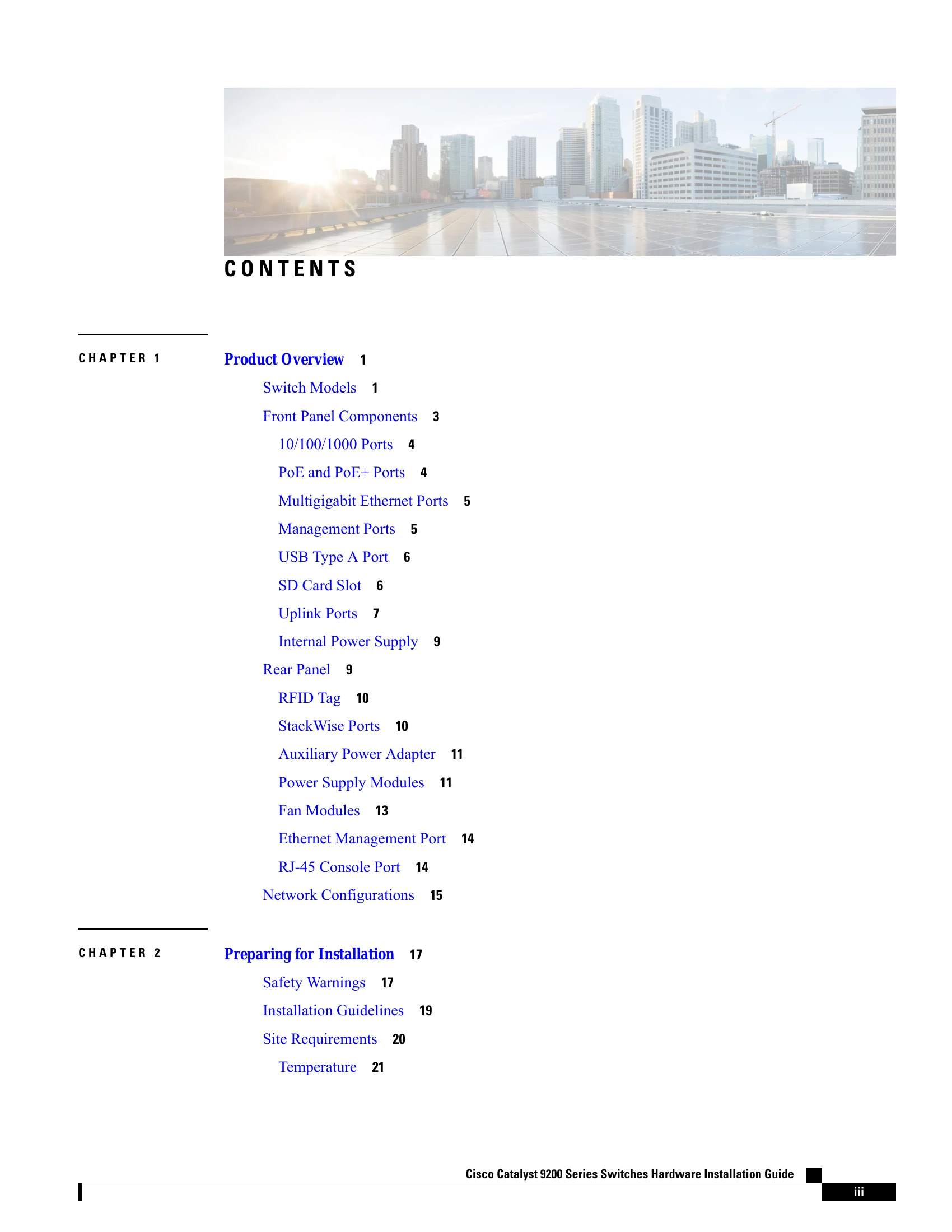

Installation Guide for Catalyst 9200 Series
Uploaded: Sept. 12, 2025, 4:28 a.m.
Manual Publish Date: 2022-07-19
Warranty Information
Contact your Cisco representative for software license and limited warranty information.
The Cisco Catalyst 9200 Series Switches Hardware Installation Guide provides detailed instructions for installing and configuring the Cisco Catalyst 9200 Series switches. It covers product overview, switch models, front and rear panel components, and various installation procedures such as rack mounting, and connecting devices. The guide also includes information on power supply modules, fan modules, management ports, and LED indicators for monitoring switch status and performance. Specific sections detail network configurations, preparing for installation, installing the switch, and configuring basic switch operations.
Troubleshooting and error codes
| Device | Condition | Troubleshooting Steps |
|---|---|---|
| System LED | Off | No AC input power. Ensure the AC power cord is connected to the switch and the AC power outlet. |
| System LED | Amber | System is receiving power but is not functioning properly. Check for faults in the Network module, Power supply, or Fan module. |
| System LED | Blinking amber | Fault with Network module, Power supply, or Fan module. Refer to the relevant sections for troubleshooting these components. |
| Active LED | Amber | Error during active switch election. Reseat the switches in the stack or check stack connections. |
| Stack LED | Amber | Stack error. Check stack connections and member switch status. |
| PoE LED | Blinking amber | PoE mode is not selected. Power denied or fault condition. Check cabling and powered devices. Remove non-compliant cabling or devices. |
| Uplink Port LED | Amber | Link disabled. Check configuration or physical connections. |
| Fan LED | Amber | Fan tachometer fault. Check fan installation and ensure it is properly seated. |
| Fan LED | Red | Fan tachometer fault exceeding maximum limit. Replace the fan module if necessary. |
