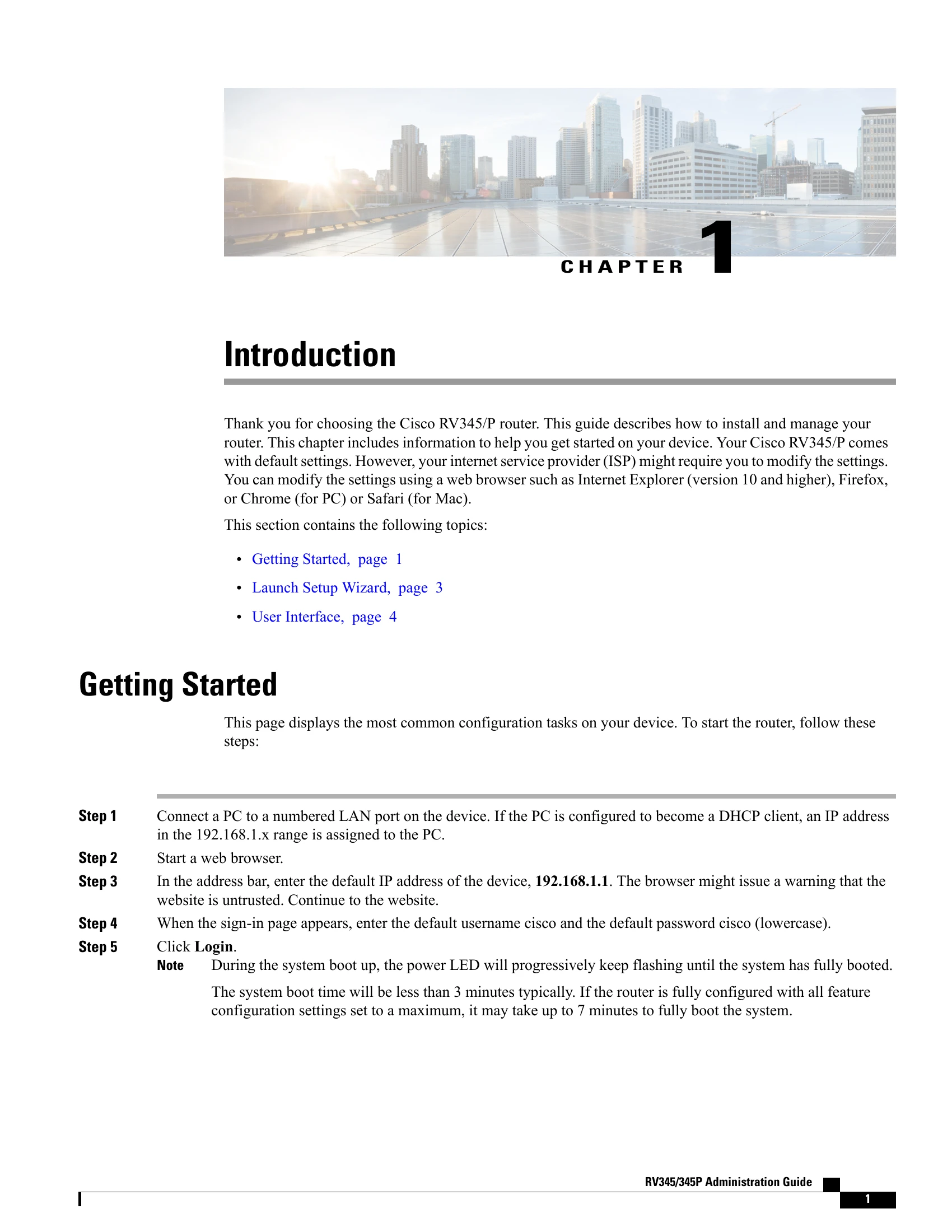

Manual for RV345/RV345P
Uploaded: Sept. 12, 2025, 4:31 a.m.
Warranty Information
Contact your Cisco representative for information on the Software License and Limited Warranty.
The Cisco RV345/P router guide covers installation and management. It details features like getting started, user interface navigation, and system status. Key areas include WAN and LAN configurations, Quality of Service (QoS), Firewall settings, and VPN setup. Advanced topics like Application Control, Web Filtering, and IP Source Guard are also explained. The manual also provides administration functions such as rebooting, file management, diagnostics, and licensing. Additional support and resource information is included.
Troubleshooting and error codes
| LED | Description |
|---|---|
| PWR | Off: Device is powered off. Solid green: Device is powered on and booted. Flashing green: Device is booting up. |
| DIAG | Off: System is on track to bootup. Slow blinking red (1Hz): Firmware upgrade in progress. Fast blinking red (3Hz): Firmware upgrade is failing. Solid red: System failed to boot-up or in rescue mode. |
| LINK/ACT of WAN1, WAN2 and LAN 1-16 | Off: No Ethernet connection. Solid green: GE Ethernet link is on. Flashing green: GE is sending or receiving data. |
| GIGABIT of WAN1, WAN2 and LAN 1-16 | Solid green: At 1000M speed. Off: At non-1000M speed. |
| DMZ | Solid green: DMZ is enabled. Off: DMZ is disabled. |
| VPN | Off: No VPN tunnel defined or all disabled. Solid green: At least one VPN tunnel is up. Flashing green: Sending or receiving data over VPN tunnel. Solid amber: No enabled VPN tunnel is up. |
| USB1 and USB2 | Off: No USB device connected or not recognized. Solid green: USB dongle connected successfully, USB storage recognized. Flashing green: Sending or receiving data. Solid amber: USB dongle recognized but fails to connect to ISP, or USB storage has errors. |
| RESET | Press for <10 seconds: Reboot the router. Press and hold for 10 seconds: Reset to factory default settings. |
