Quick Start Guide for CDR 825E
Uploaded: Aug. 10, 2025, 12:39 a.m.
Warranty Information
For warranty and customer service information, please contact the seller.

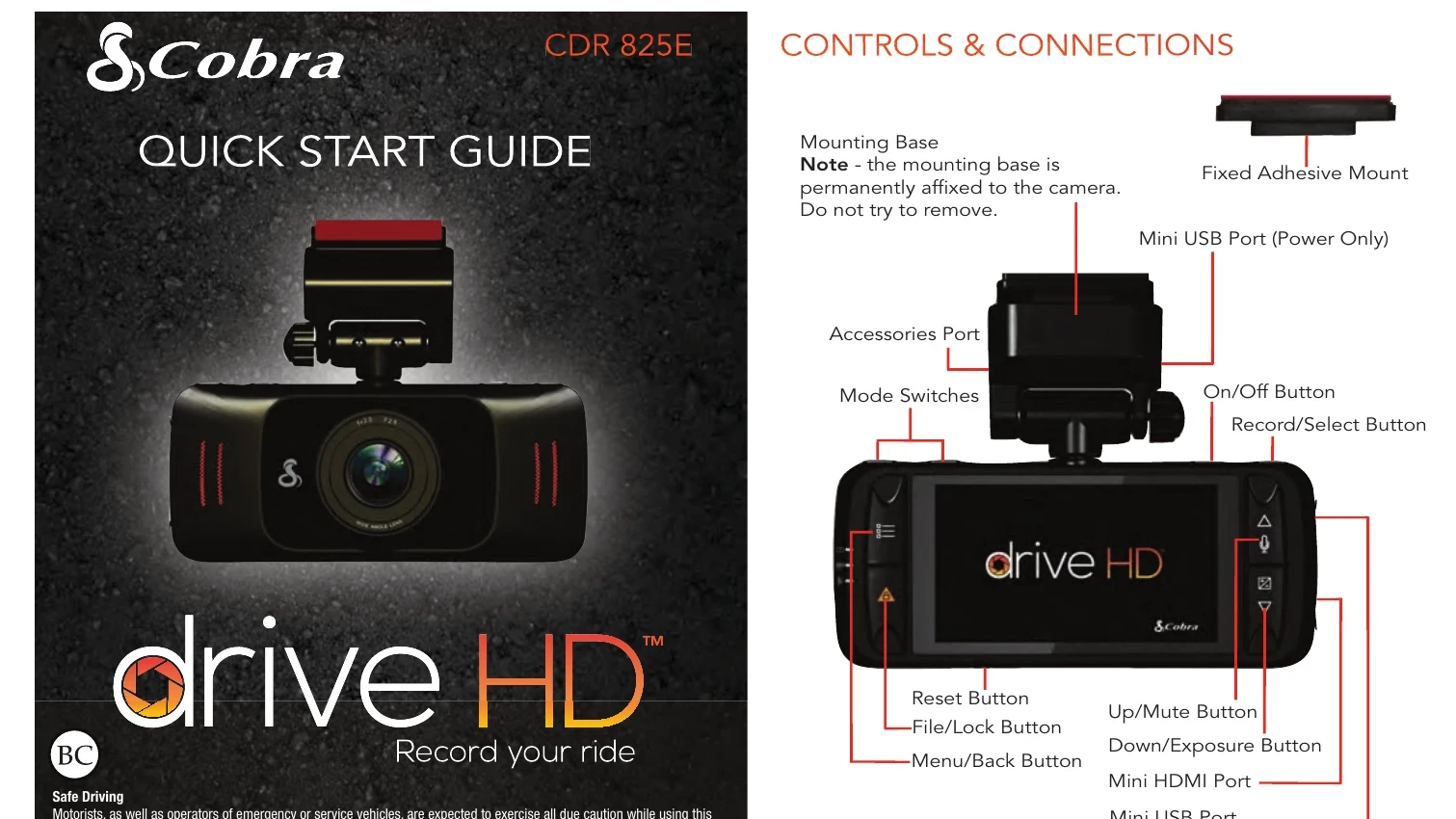

CONTROLS & CONNECTIONS
Mounting Base: Permanently affixed.
Accessories Port
Mode Switches
Mini USB Port (Power Only)
On/Off Button
Record/Select Button
Reset Button
File/Lock Button
Menu/Back Button
Up/Mute Button
Down/Exposure Button
Mini HDMI Port
Mini USB Port (Computer Connection)
INSTALLATION
1. MOUNT: Remove adhesive backing and firmly press onto windshield. Camera slides in/out of the mount slot.
2. POWER: Plug into vehicle's cigarette lighter.
3. DRIVE!: Unit turns on and starts recording when power is applied. Press Record to stop/start. Press to lock current file.
To change languages, press Menu, enter Video Options, and navigate to Language.
COMPUTER CONNECTION
Connect via included USB to mini-USB cable. Appears as a removable disk in the DCIM folder.
NOTE:
Optional GPS module (not included) saves GPS data. Visit www.cobra.com for more info.
The fixed adhesive mount is semi-permanent and will be destroyed if removed.
STORAGE
Comes with 8GB Class 4 Micro SD card, supports up to 32GB.
CONTINUOUS LOOP RECORDING
When card is full, oldest clips are deleted to make room for new footage.
