Manual for DCS-6004L/DCS-6005L

Manual for DCS-6004L/DCS-6005L

Brand: D-Link

Category: Networking

Document Type: Manual

Language: EN

Uploaded: Sept. 12, 2025, 4:15 a.m.

Manual Publish Date: 2013-11-26

Warranty Information

No specific warranty period is mentioned in the provided sections.

Camera Installation & Setup

  • Hardware Installation: Connect Ethernet cable, attach power supply, reattach camera housing.

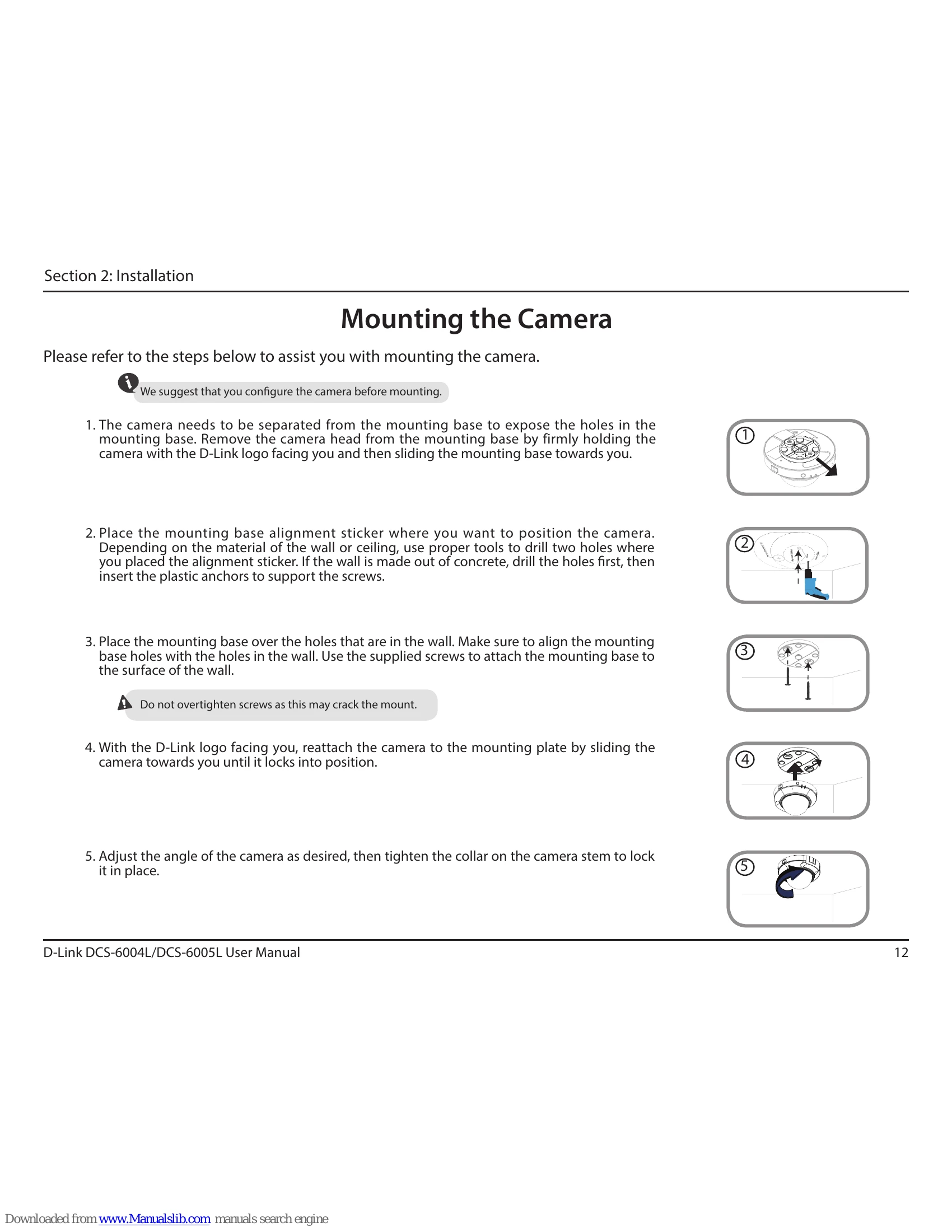

  • Mounting: Separate camera head, use alignment sticker, drill holes, attach mounting base, reattach camera head, adjust angle.
  • Configuration: Use Setup Wizard for initial setup (mydlink or independent operation), access web configuration utility via IP address.
  • Live Video: View live feed, zoom, monitor SD card status, use control pad for ePTZ, manage motion detection indicators and recording status.
  • Advanced Features: Configure motion detection, set schedules, manage alerts (email/FTP), set up ICR for day/night vision, enable HTTPS, manage access lists.
  • Maintenance: Backup/restore/reset configuration, reboot device, upgrade firmware, manage device info and logs.

mydlink Features

  • Register camera with mydlink account for remote access via www.mydlink.com.
  • Access live view, playback, and settings through the mydlink portal.

Troubleshooting and error codes

ProblemPossible CauseSolution
Camera is not powering on.Power adapter is not connected properly.Ensure the power adapter is securely connected to the camera and the power outlet.
Cannot connect to the camera.Incorrect IP address or network configuration.Verify the camera's IP address and network settings. Ensure the camera is on the same network as your computer.
Live video is choppy or not smooth.Network bandwidth is insufficient or network congestion.Reduce video resolution or frame rate. Close other network-intensive applications. Use a wired connection if possible.
Motion detection is not triggering.Motion detection is disabled or sensitivity is set too low.Enable motion detection and adjust the sensitivity settings in the camera's configuration. Ensure the motion detection area is correctly defined.
Cannot access the camera remotely.Firewall settings or incorrect mydlink registration.Check firewall settings on your router and computer. Ensure the camera is correctly registered with your mydlink account.
