Warranty Information
All Daikin equipment is sold pursuant to its standard terms and conditions of sale, including Limited Product Warranty.

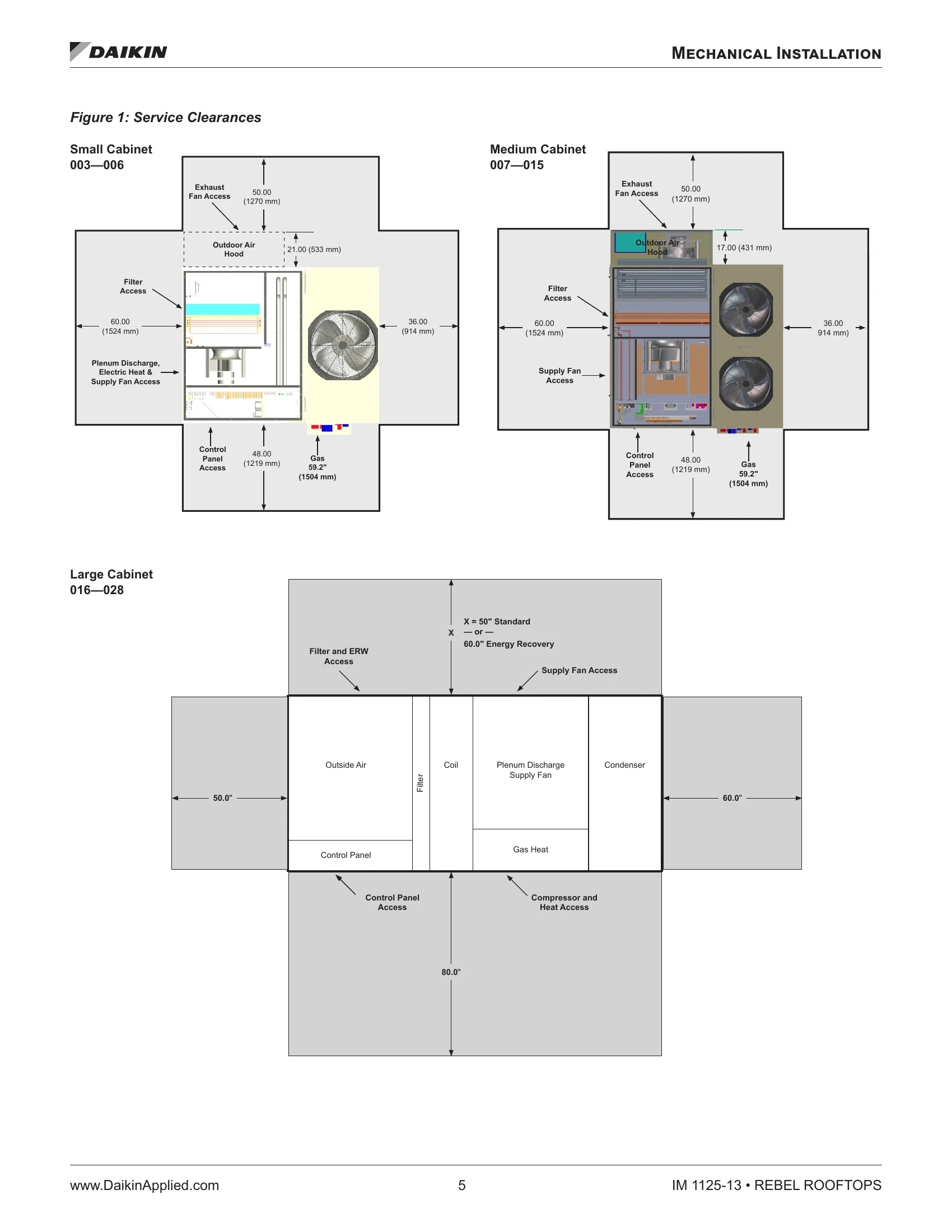

The Daikin Rebel Commercial Packaged Rooftop Units (DPS) are designed for heating and cooling applications. They feature the MicroTech® III Unit Controller for advanced control, and can be equipped with options like Energy Recovery Wheels (ERW) and various heating stages (electric, gas, or hot water). Installation requires careful attention to mechanical and electrical procedures, including proper ventilation and clearances. The units offer various control sequences and configurations to suit different application needs.
Troubleshooting and error codes
| Model | Unit Size | Voltage | Amps |
|---|---|---|---|
| 003-015 | 6 KW | 208 | 16.7 |
| 240 | 14.4 | ||
| 480 | 7.2 | ||
| 600 | 9.6 | ||
| 12 KW | 208 | 33.3 | |
| 240 | 28.9 | ||
| 480 | 14.4 | ||
| 600 | 19.2 | ||
| 18 KW | 208 | 50.0 | |
| 240 | 43.3 | ||
| 480 | 21.7 | ||
| 600 | 17.3 | ||
| 30 KW | 208 | 83.3 | |
| 240 | 36.1 | ||
| 480 | 28.9 | ||
| 600 | 23.3 | ||
| 36 KW | 208 | 99.9 | |
| 240 | 86.6 | ||
| 480 | 43.3 | ||
| 600 | 34.6 | ||
| 54 KW | 208 | 149.9 | |
| 240 | 129.9 | ||
| 480 | 65.0 | ||
| 600 | 52.0 | ||
| 72 KW | 208 | 199.9 | |
| 240 | 173.2 | ||
| 480 | 86.6 | ||
| 600 | 69.3 | ||
| 016-028 | 10 KW | 208 | 27.8 |
| 240 | 24.1 | ||
| 480 | 12.0 | ||
| 20 KW | 208 | 55.5 | |
| 240 | 48.1 | ||
| 480 | 24.1 | ||
| 600 | 19.2 | ||
| 30 KW | 208 | 83.3 | |
| 240 | 72.2 | ||
| 480 | 36.1 | ||
| 600 | 28.9 | ||
| 45 KW | 208 | 124.9 | |
| 240 | 108.3 | ||
| 480 | 54.1 | ||
| 600 | 43.3 | ||
| 60 KW | 208 | 166.5 | |
| 240 | 144.3 | ||
| 480 | 72.2 | ||
| 600 | 57.7 | ||
| 72 KW | 208 | 199.9 | |
| 240 | 173.2 | ||
| 480 | 86.6 | ||
| 600 | 69.3 | ||
| 90 KW | 208 | 249.8 | |
| 240 | 216.5 | ||
| 480 | 108.3 | ||
| 600 | 86.6 | ||
| 120 KW | 480 | 144.3 | |
| 600 | 115.5 | ||
| 150 KW | 480 | 180.4 | |
| 600 | 144.3 | ||
| NOTE: 1. Maximum temperature rise equals 60°F | |||
