Warranty Information

Refer to the service manual for warranty information and contact Dell technical support for assistance.

Ensure all files are saved and applications are closed before shutting down the computer.
Disconnect all external devices and power sources before opening the computer.
Ground yourself by touching an unpainted metal surface before touching any internal components.
Handle components by their edges and avoid touching pins and contacts.
Use an ESD field service kit when working inside the computer to prevent electrostatic discharge.
Reassemble all covers and panels before reconnecting power.

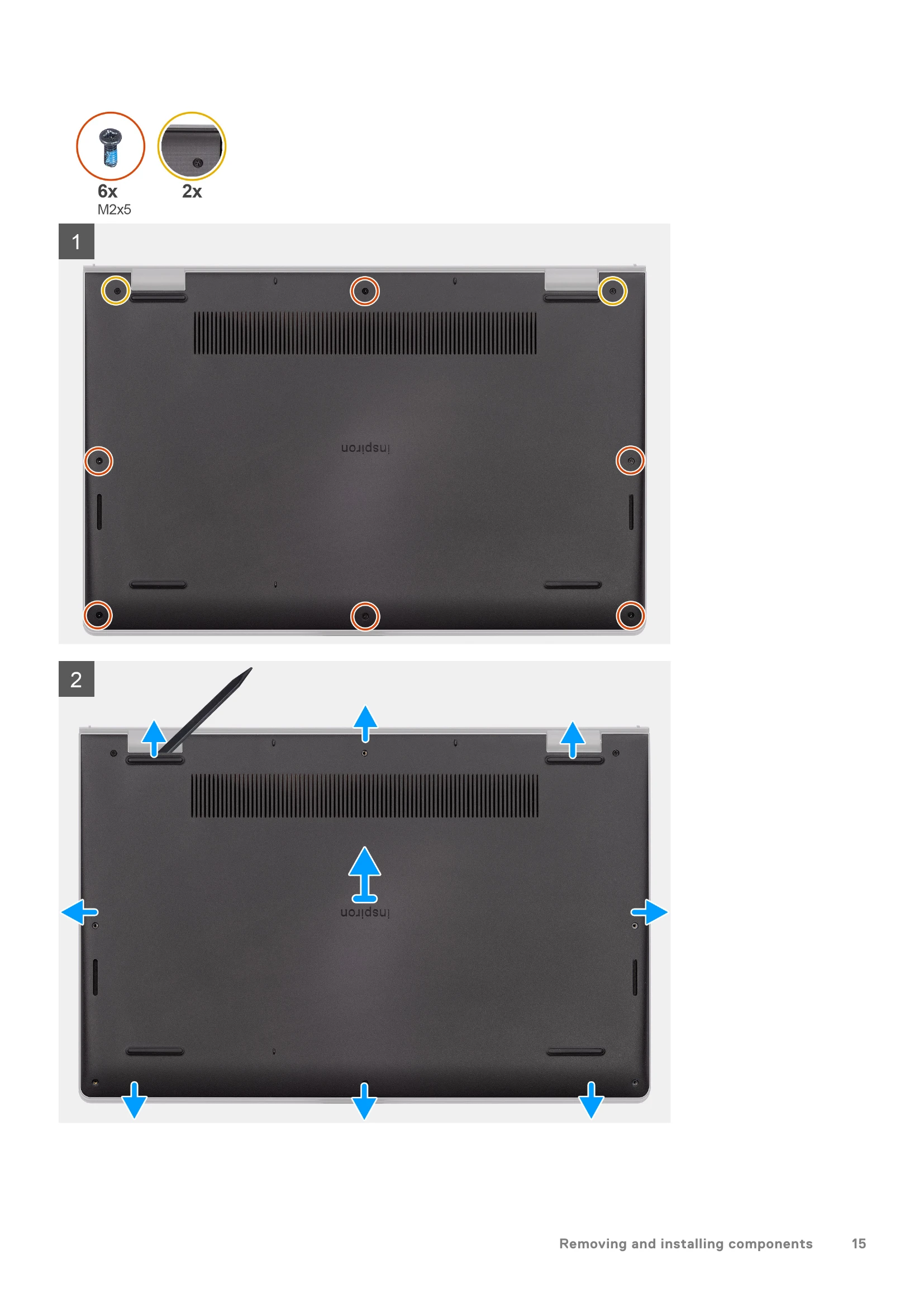

Follow specific component removal and installation procedures, noting screw types and quantities.
Perform system diagnostics and troubleshooting steps as needed.

Blinking Pattern	Amber	White	Problem description	Suggested resolution
2		1	CPU Failure	Replace the system board.
		2	LCD Power Rail Failure	Flash latest BIOS version. If problem persists, replace the system board.
		3	No memory/RAM detected	Confirm that the memory module is installed properly. If problem persists, replace the memory module.
		4	Memory/RAM failure	Replace the memory module.
		5	Invalid memory installed	Replace the memory module.
		6	System board/chipset error	Replace the system board.
		7	LCD failure	Replace the LCD module.
3		1	RTC power failure	Replace the battery.
		2	PCI or video card/chip failure	Replace the system board.
		3	BIOS Recovery image not found	Flash latest BIOS version. If problem persists, replace the system board.
		4	BIOS Recovery image found but invalid	Flash latest BIOS version. If problem persists, replace the system board.
		5	Power rail failure	Flash latest BIOS version. If problem persists, replace the system board.
