Brand: Dell
Category: Monitor
Document Type: Manual
Language: EN
Manual for U2410f
Uploaded: Nov. 21, 2025, 7:20 p.m.
Manual Publish Date: 2011-05-01
Warranty Information
No specific warranty period is mentioned in the provided pages.
\n
- \n
- Setting Up: Connect the monitor to your computer using the provided cables (VGA, DVI-D, or DisplayPort) and the USB uplink cable. Ensure power cables are connected and then turn on both devices. \n

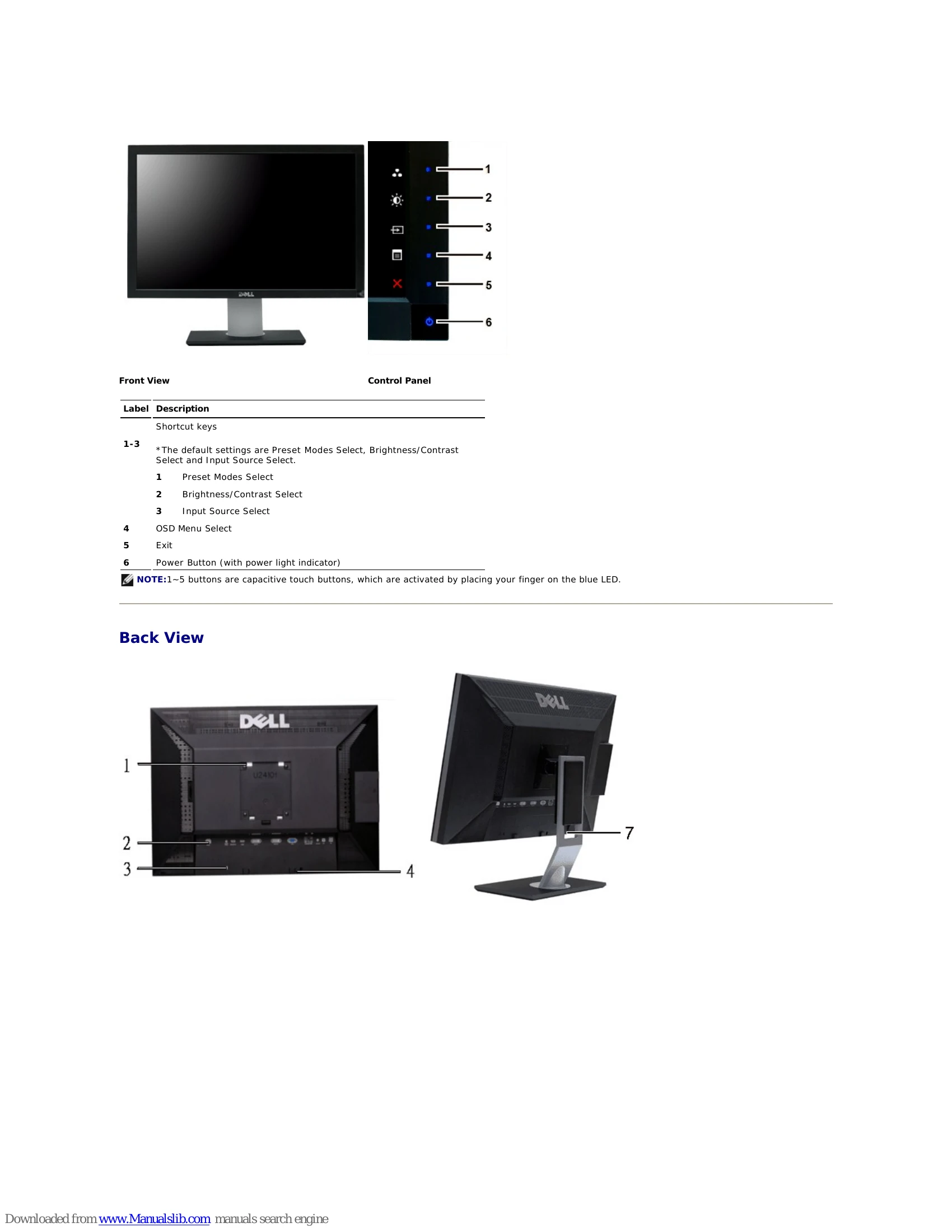

- Using the Front Panel Controls: The front panel has touch-sensitive buttons for quick access to functions like Preset Modes, Brightness/Contrast, and Input Source Selection. \n
- Using the OSD Menu: Access the On-Screen Display (OSD) menu by pressing the OSD Menu button to adjust settings such as Brightness/Contrast, Auto Adjust, Input Source, Color Settings, Display Settings, and Personalize. \n
- Adjusting Display: The monitor supports tilt, swivel, and vertical extension. You can also rotate the monitor 90 degrees for portrait view, requiring graphics driver adjustments. \n
- Troubleshooting: Features like the Self-Test Feature Check and Built-in Diagnostics help identify if issues are with the monitor or the computer. Common problems and solutions are listed for video, USB, and soundbar issues. \n
Troubleshooting and error codes
| Common Symptoms | What You Experience | Possible Solutions |
|---|---|---|
| No Video/Power LED off | No picture | Ensure that the video cable connecting the monitor and the computer is plugged in and secure. Verify that the power outlet is functioning properly using any other electric device. Ensure that the power button is depressed fully. |
| No Video/Power LED on | No picture or no brightness | Increase brightness & contrast controls via OSD. Perform monitor self-test feature check. Check for bent or broken pins in the video cable connector. Touch button 5 located above the power button, ensure that the correct input is selected via the Input Source Select menu. Run the built-in diagnostics. |
| Poor Focus | Picture is fuzzy, blurry, or ghosting | Perform Auto Adjust via OSD. Adjust the Phase and Pixel Clock controls via OSD. Eliminate video extension cables. Reset the monitor to Factory Settings. Change the video resolution to the correct aspect ratio (16:10). |
| Shaky/Jittery Video | Wavy picture or fine movement | Perform Auto Adjust via OSD. Adjust the Phase and Pixel Clock controls via OSD. Reset the monitor to Factory Settings. Check environmental factors. Relocate the monitor and test in another room. |
| Missing Pixels | LCD screen has spots | Cycle power on-off. Pixel that is permanently off is a natural defect that can occur in LCD technology. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site: support.dell.com. |
| Stuck-on Pixels | LCD screen has bright spots | Cycle power on-off. Pixel that is permanently off is a natural defect that can occur in LCD technology. For more information on Dell Monitor Quality and Pixel Policy, see Dell Support site: support.dell.com. |
| Brightness Problems | Picture too dim or too bright | Reset the monitor to Factory Settings. Auto Adjust via OSD. Adjust brightness & contrast controls via OSD. |
| Geometric Distortion | Screen not centered correctly | Reset the monitor to Factory Settings. Auto Adjust via OSD. |
| Horizontal/Vertical Lines | Screen has one or more lines | Adjust brightness & contrast controls via OSD. NOTE: When using 'DVI-D', the positioning adjustments are not available. Reset the monitor to Factory Settings. Perform Auto Adjust via OSD. Adjust Phase and Pixel Clock controls via OSD. Perform monitor self-test feature check and determine if these lines are a normal display or if there is a problem. Check for bent or broken pins in the video cable connector. |
| Synchronization Problems | Screen is scrambled or appears torn | NOTE: When using 'DVI-D', the Pixel Clock and Phase adjustments are not available. Reset the monitor to Factory Settings. Perform Auto Adjust via OSD. Adjust Phase and Pixel Clock controls via OSD. Perform monitor self-test feature check to determine if scrambled screen appears in self-test mode. Check for bent or broken pins in the video cable connector. |
| Safety-Related Issues | Visible signs of smoke or sparks | Do not perform any troubleshooting steps. Contact Dell immediately. |
| Intermittent Problems | Monitor malfunctions on & off | Ensure that the video cable connecting the monitor to the computer is connected and secure. Reset the monitor to Factory Settings. Perform monitor self-test feature check to determine if the intermittent problem occurs in self-test mode. |
| Missing Color | Picture missing color | Perform monitor self-test feature check. Ensure that the video cable connecting the monitor to the computer is connected and secure. Check for bent or broken pins in the video cable connector. |
| Wrong Color | Picture color not good | Change the Color Setting Mode in the Color Settings OSD to Graphics or Video, depending on the application. Try different Color Preset Settings in Color Settings OSD. Adjust R/G/B values in the Color Settings OSD if the Color Management is turned off. Change the Input Color Format to PC RGB or YPbPr in the Advance Settings OSD. |
| Image retention from a static image left on the monitor for a long period of time | Faint shadow from the static image displayed appears on the screen | Use the Power Management feature to turn off the monitor at all times when not in use (for more information, see Power Management Modes). Alternatively, use a dynamically changing screensaver. |
| Video Problems | ||
| No Video | No signal indicator is displayed | Check Video Input Selection: • Composite: Yellow colored RCA jack • Component: Red, Blue, Green colored RCA jacks Check DVD connection • Composite gives good picture Component: Red, Blue, Green colored RCA jacks |
| Low Quality DVD playback | Picture not crisp and some color distortion | Check DVD connection • Composite gives good picture Component: Red, Blue, Green colored RCA jacks Check if DVD player is HDCP compliant. Some non-compliant players may exhibit blinking video and others will produce a raster screen. |
| Blinking Video | Video is blinking or discontinuous | Check DVD connection • Composite gives good picture Component: Red, Blue, Green colored RCA jacks Check if DVD player is HDCP compliant. Some non-compliant players may exhibit blinking video and others will produce a raster screen. |
| Product Specific Problems | ||
| Screen image is too small | Image is centered on screen, but does not fill entire viewing area | Perform monitor reset on "Factory Reset". |
| Cannot adjust the monitor with the buttons on the front panel | OSD does not appear on the screen | Turn the monitor off and unplug the power cord and then plug back and press the power button. |
| The monitor will not go into power saving mode. | No picture, the LED light is blue. When you press "+", "-" or "Menu" key, the message "No Composite input signal" or "No Component input signal" will appear. | Check the signal source. Make sure the Computer is not in power saving by moving the mouse or pressing any key on the keyboard. Check to make sure Video Source to Composite or Component is powered and is outputting video media. Check whether the signal cable is plugged in and seated properly. Re-plug it if necessary. Re-boot the computer or video player. |
| The monitor will not fill the entire screen. | The picture can't fill the height or width of the screen. | Due to the non-standard formats of DVDs, the monitor may not show the pictures. NOTE: When choosing DVI-D, DisplayPort, HDMI, Composite or Component video, Auto Adjust function is not available. |
| Universal Serial Bus (USB) Specific Problems | ||
| USB interface is not working | USB peripherals are not working | Check that your monitor is powered ON. Reconnect the upstream cable to your computer. Reconnect the USB peripherals (downstream connector). Switch off and then turn on the monitor again. Reboot the computer. |
| High Speed USB 2.0 interface is slow. | High Speed USB 2.0 peripherals working slowly or not at all. | Check that your computer is USB 2.0 capable. Verify USB 2.0 source on your computer. Reconnect the upstream cable to your computer. Reconnect the USB peripherals (downstream connector). Reboot the computer. |
| Troubleshooting the Dell™™ Soundbar | ||
| No Sound | No power to Soundbar - the power indicator is off. (built-in DC power supply. i.e. U2410) | Turn the Power/Volume knob on the Soundbar clockwise to the middle position. The power indicator (blue LED) on the front of the Soundbar is illuminated. Confirm that the power cable from the Soundbar is plugged into the monitor. Confirm that the monitor has power. If the monitor has no power, see Monitor Specific Troubleshooting for monitoring problems. |
| No Sound | Soundbar has power power indicator is on. | Plug the audio line-in cable into the computer's audio out jack. Set all Windows volume controls to their maximum. Play some audio content on the computer (i.e. audio CD, or MP3). Turn the Power/Volume knob on the Soundbar clockwise to a higher volume. Clean and reseat the audio line-in plug. Test the Soundbar using another audio source (i.e. portable CD player). |
| Distorted Sound | Computer's sound card is used as the audio source. | Clear any obstructions between the Soundbar and the user. Confirm that the audio line-in plug is completely inserted into the jack of the audio source. Set all Windows volume controls to their midpoints. Decrease the volume of the audio application. Turn the Power/Volume knob on the Soundbar counter-clockwise to a lower volume. Clean and reseat the audio line-in plug. Troubleshoot the computer's sound card. Test the Soundbar using another audio source (i.e. portable CD player). |
| Distorted Sound | Other audio source is used. | Clear any obstructions between the Soundbar and the user. Confirm that the audio line-in plug is completely inserted into the jack of the audio source. Set all Windows volume controls to their midpoints. Decrease the volume of the audio application. Turn the Power/Volume knob on the Soundbar counter-clockwise to a lower volume. Clean and reseat the audio line-in plug. Troubleshoot the computer's sound card. Test the Soundbar using another audio source (i.e. portable CD player). |
| Unbalanced Sound Output | Sound from only one side of Soundbar | Clear any obstructions between the Soundbar and the user. Confirm that the audio line-in plug is completely inserted into the jack of the audio source. Set all Windows audio balance controls (L-R) to their midpoints. Clean and reseat the audio line-in plug. Troubleshoot the computer's sound card. Test the Soundbar using another audio source (i.e. portable CD player). |
| Low Volume | Volume is too low. | Clear any obstructions between the Soundbar and the user. Turn the Power/Volume knob on the Soundbar clockwise to the maximum setting. Set all Windows volume controls to their maximum. Increase the volume of the audio application. Test the Soundbar using another audio source (i.e. portable CD player). |
| Troubleshooting the Card Reader | ||
| Drive letter is not assigned. (Windows® XP only) | Conflict with network drive letter. | A. Right-click My Computer on the desktop, and then click Manage. Under Computer Management, click Disk Management. B. In the list of drives in the right panel, right-click Removable Device and then click Change Drive Letter and Paths. C. Click Change, and in the drop-down box, specify a drive letter for the Removable Device, choosing one that is not assigned to the mapped network drives. D. Click OK, then click OK again |
| Drive letter is assigned, but the media is not accessible | The media needs reformatting. | Right-click the drive in Explorer and choose Format from the resulting menu. |
| The media has been ejected during writing or erasing. | Displays the error message, "Error copying file or folder." | Reinsert the media and write or erase again. |
| The media has been ejected during writing or erasing. | Displays the error message, "Cannot write folder (folder name) or file (file name)," during writing, or, "Cannot remove folder (folder name) or file (file name),". While erasing, you cannot write or erase in the same folder or file name. | Format the media for writing or erasing the same folder or file name. |
| Despite the disappearance of the pop-up window, the media has been ejected while the LED was blinking. | Although the pop-up window disappears during writing, if you eject your media while the LED is still blinking, then you cannot complete your action on the media. | Format the media for writing or erasing the same folder or file name. |
| Cannot format or write on the media. | Write protect switch is enabled. | Verify that the write-protect switch of the media is unlocked. |
| Card reader is not working | USB interface is not working. | Check that your monitor is powered on. Reconnect the upstream cable from your computer to the monitor. Reinsert the media. Switch off and then turn on the monitor again. Reboot the computer. |
