Installation Guide for VxRail P670F

Installation Guide for VxRail P670F

Brand: Dell

Category: Networking Hardware

Document Type: Installation Guide

Language: EN

Uploaded: Sept. 12, 2025, 4:13 a.m.

Manual Publish Date: 2023-10-01

Warranty Information

Warranty information is not explicitly detailed in this section of the manual.

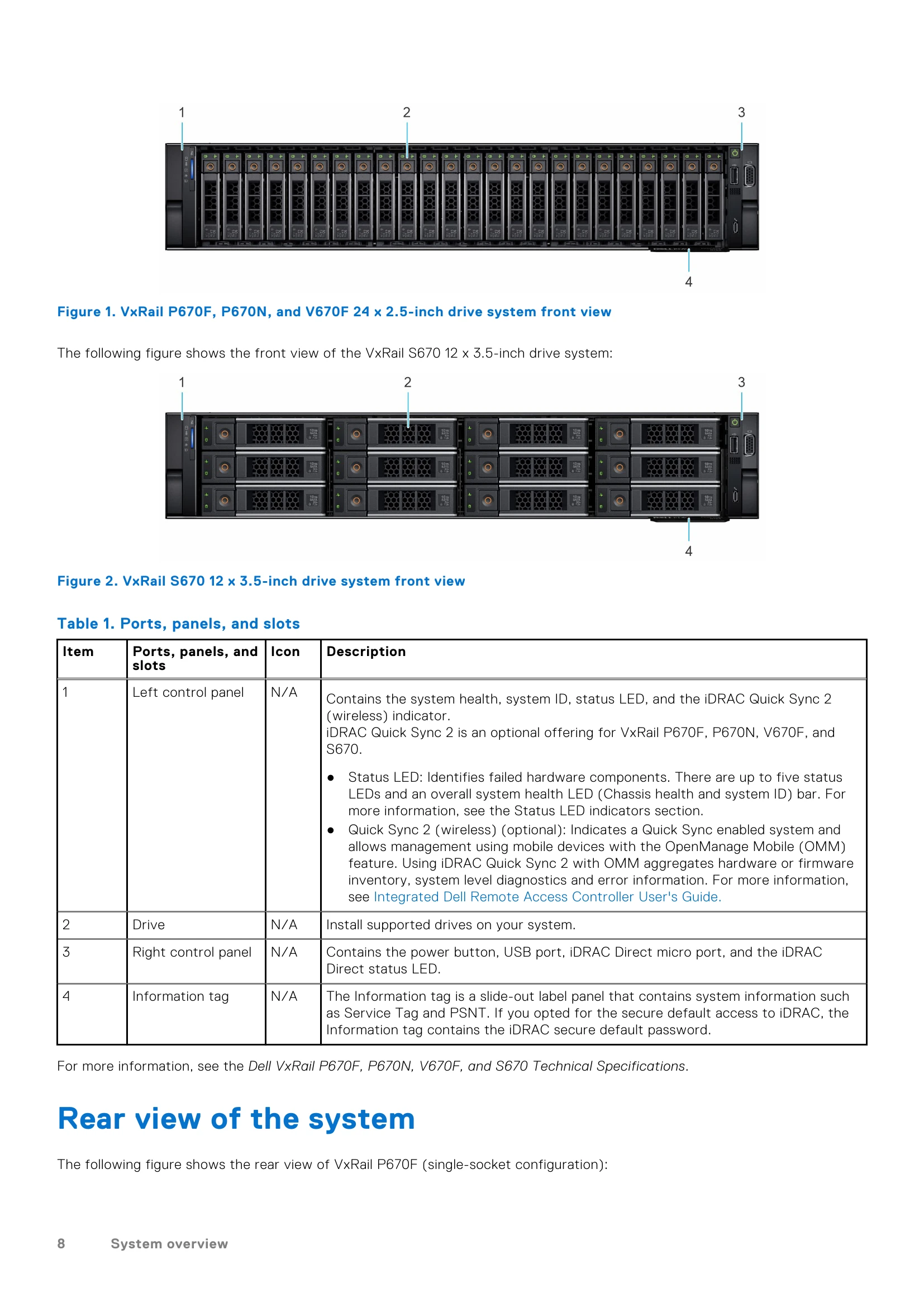

The VxRail P670F, P670N, V670F, and S670 Installation and Service Manual provides an overview of the system, diagnostic tools, and guidelines for high-level operations. It covers system overview, initial setup and configuration, pre-operating system management, hardware replacement, and system diagnostics. The manual also details front and rear views of the systems, internal components, memory configurations, riser configurations, and indicator codes for various system components like status LEDs, iDRAC, power supply units, and drives. It also guides users on running system diagnostics and interpreting results.

Troubleshooting and error codes

Icon Description Condition Corrective action
Drive indicator Turns solid amber if there is a drive error.
  • Check the System event log to determine if the drive has an error.
  • Run the appropriate Online Diagnostics test.
  • Restart the system and run embedded diagnostics (ePSA).
  • If the drives are configured in a RAID array, restart the system, and enter the host adapter configuration utility program.
Temperature indicator Turns solid amber if the system experiences a thermal error (for example, the ambient temperature is out of range or there is a fan failure). Ensure that none of the following conditions exist:
  • A cooling fan has been removed or has failed.
  • System cover, air shrouds, or back filler bracket have been removed.
  • Ambient temperature is too high.
  • External airflow is obstructed.
If the problem persists, see Dell Technologies Support.
Electrical indicator Turns solid amber if the system experiences an electrical error (for example, voltage out of range, or a failed power supply unit (PSU) or voltage regulator). Check the System event log or system messages for the specific issue. If it is due to a problem with the PSU, check the LED on the PSU. Reseat the PSU. If the problem persists, see Dell Technologies Support.
Memory indicator Turns solid amber if a memory error occurs. Check the System Event Log or system messages for the location of the failed memory. Reseat the memory module. If the problem persists, see Dell Technologies Support.
PCIe indicator Turns solid amber if a PCIe card experiences an error. Restart the system. Update any required drivers for the PCIe card. Reinstall the card. If the problem persists, see Dell Technologies Support.
