Warranty Information

Dell-branded products carry a 1-year limited hardware warranty.

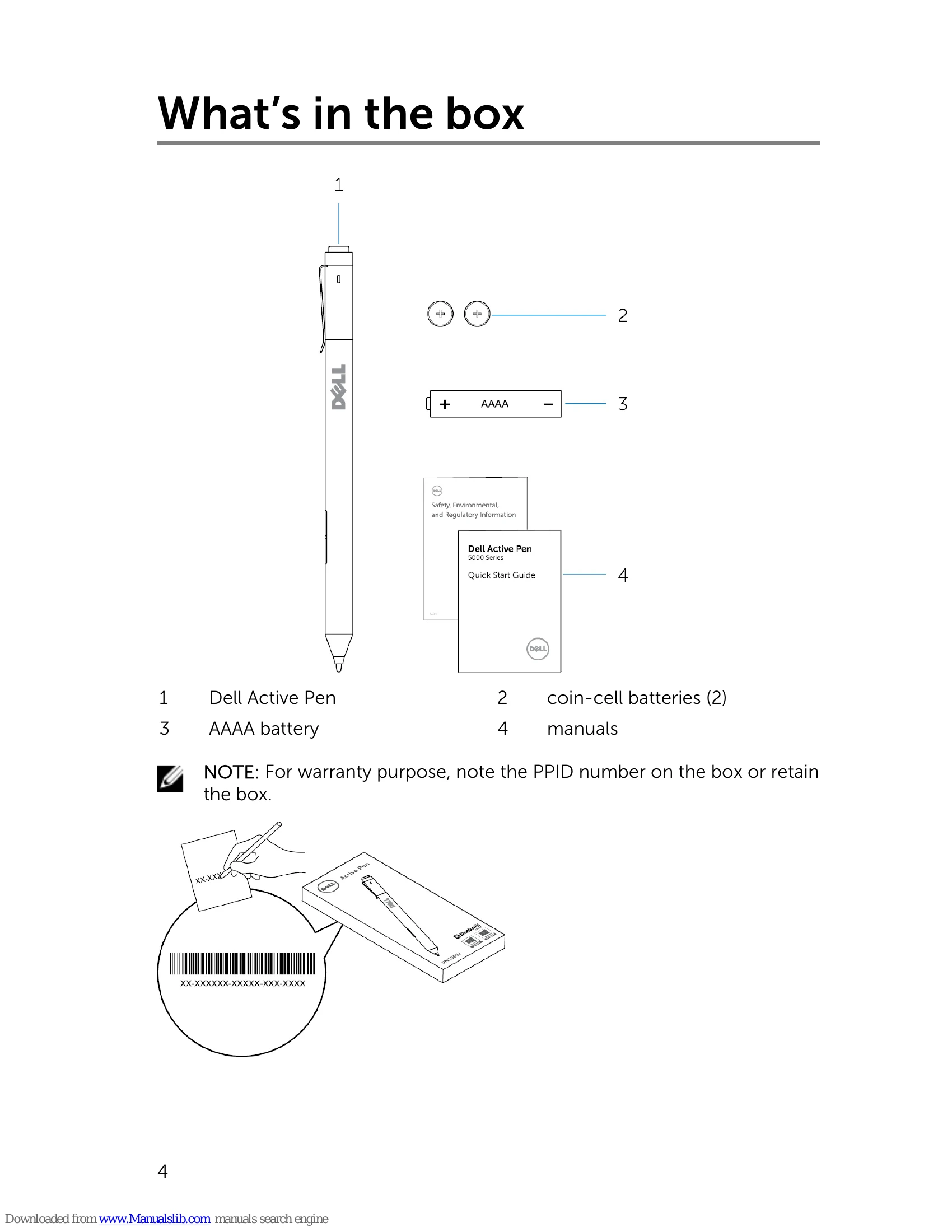

  • Installing Batteries: The pen uses one AAAA battery for tip and button functions, and two coin-cell batteries for Bluetooth and quick-launch features. Follow specific instructions for installing each type.
  • Pairing with a Bluetooth Device: Press and hold the top button for 3 seconds to enable pairing mode. Use Windows Bluetooth settings to find and pair the 'Dell PN556W Pen'. The Bluetooth-pairing light indicates pairing status.
  • Active Pen Control Panel: Download and install this software from dell.com/support/drivers to customize pen buttons, pressure sensitivity, and other features.
  • Using the Pen: Hold like a pencil. Use the tip on a touch screen for pointer movement, writing, and drawing. Barrel buttons can be customized for functions like right-click, erase, page up/down, copy, paste, undo, and redo.
  • Troubleshooting: Covers issues like the pen not working, buttons not functioning, pairing problems, and waking the device from standby, providing possible causes and solutions.

Troubleshooting and error codes

Problems Possible causes Possible solutions
Pen does not work.
  • Batteries are installed incorrectly.
  • Batteries are out of charge.
  • Ensure the batteries are correctly installed.
  • Replace the batteries.
Pen does not write and the barrel buttons do not work. AAAA battery is either incorrectly installed or out of charge. Replace the AAAA battery.
Default functions for the barrel buttons do not work. Functions not supported by application. Test the barrel buttons in OneNote or another application that supports these features.
Pressing the top button for 0.5 second does not open OneNote.
  • OneNote is not installed.
  • Pen is not paired with your device.
  • Coin-cell batteries may be out of charge.
  • Ensure OneNote is installed on your device.
  • Ensure the pen is paired with your device.
  • Change the coin-cell batteries.
Pressing the top button in succession does not capture screenshot. Windows update KB2968599 is not installed on your device. Install the Windows update KB2968599 from the Microsoft website.
Unable to pair the pen with your device. Unsupported device. Dell Active Pen works only with Dell devices.
Pen shows as Not Connected under Bluetooth devices list.
  • Bluetooth driver on your device is outdated.
  • Pen is not paired correctly with your device.
  • Install the latest Bluetooth driver for your device.
  • Remove the pen from your Bluetooth list and pair it again.
Bluetooth-pairing light does not turn on. Coin-cell batteries may be out of charge. Change the coin-cell batteries.
Pressing and holding the top button for 0.5 second or pressing the button twice in succession does not wake up the computer or tablet from connected standby. Your computer or tablet may not support the connected standby feature. Ensure to use this feature on computers and tablets that support the connected standby feature.
