Basic Printer Operations

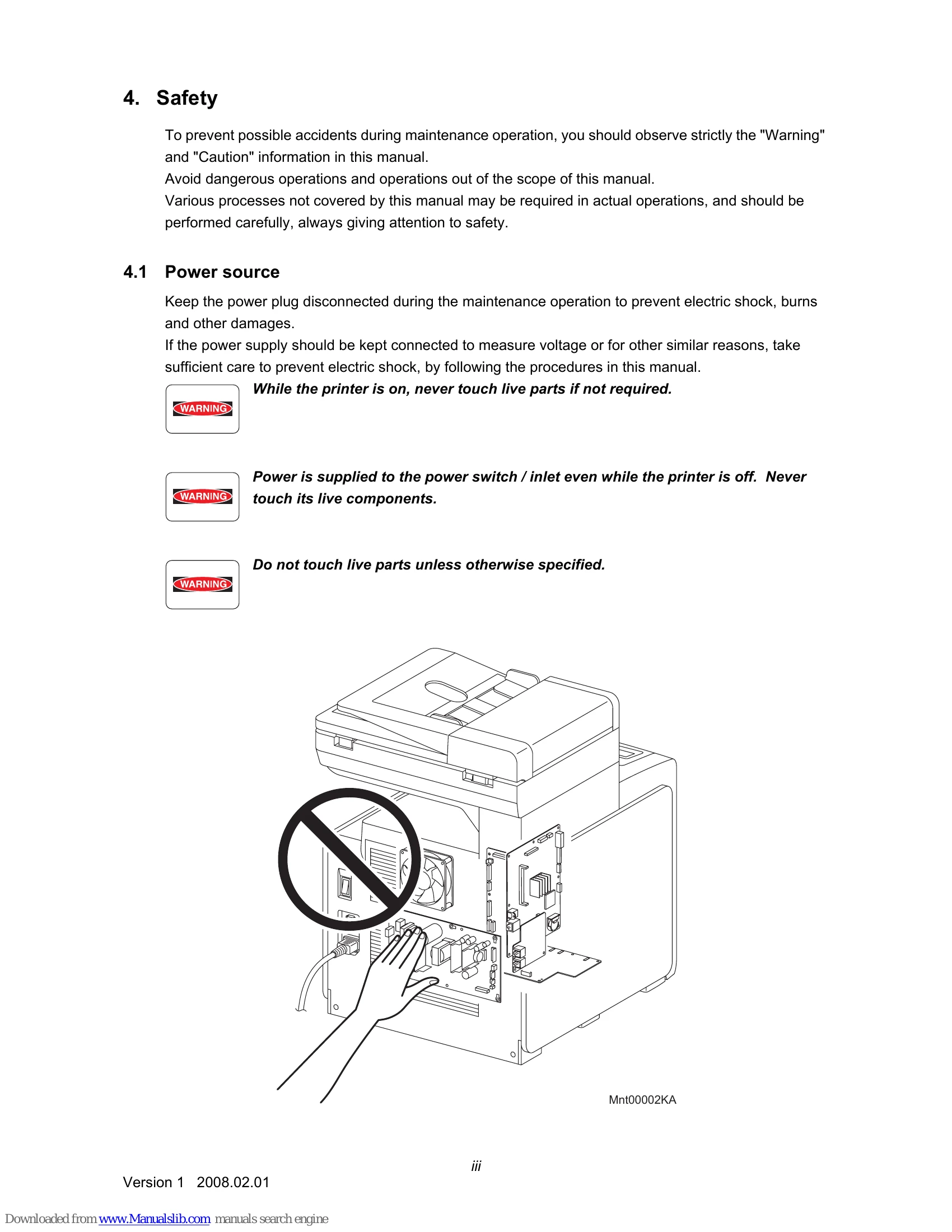

This manual covers the operation and maintenance of the Dell 2135cn laser printer. It includes sections on safety precautions, related documents, unpacking instructions, and detailed chapters on troubleshooting, diagnostics, removal and replacement procedures, connector locations, parts lists, principles of operation, wiring diagrams, and printer specifications.
Key operations include:
- Troubleshooting: Guides users through diagnosing and resolving common printer issues, including error codes and FIP troubleshooting.
- Operation of Diagnostic: Information on using diagnostic tools.
- Removal and Replacement Procedures: Step-by-step instructions for servicing printer components.
- Printer Specifications: Detailed information on the printer's hardware and software capabilities.
Troubleshooting and error codes
| Flow # | Description | Page |
|---|---|---|
| 1 001-360 | Restart Printer | 1-59 |
| 2 | MCU Firmware Error 003-340 | 1-60 |
| 3 | NVM Error 003-356 | 1-61 |
| 4 | Paper Jam 005-110/005-121 / Job was Finished 005-124 | 1-62 |
| 5 | Cover Open 005-301 | 1-63 |
| 6 | Laser Error 006-370 | 1-64 |
| 7 | 007-340 Restart Printer | 1-65 |
| 8 | 007-341 Restart Printer | 1-66 |
| 9 | 007-371 Restart Printer | 1-67 |
| 10 | CTD Sensor Error 009-340 (Y) | 1-68 |
| 11 | CTD Sensor Error 009-340 (M) | 1-70 |
| 12 | CTD Sensor Error 009-340 (C) | 1-72 |
| 13 | CTD Sensor Error 009-340 (K) | 1-74 |
| 14 | 010-317 Reseat Fuser | 1-76 |
| 15 | Replace Fuser Now 010-351/010-421 | 1-77 |
| 16 | Env. Sensor Error 010-354 | 1-78 |
| 17 | Fuser Error 010-377 | 1-79 |
| 18 | 016-300/016-301/016-302/016-310/016-313/016-315/016-317/016-323/016-324/016-327/016-344/016-345/016-346/016-347/117-365/131-397/131-398/131-399 Restart Printer / Erase Flash Err. 016-392 / Write Flash Err. 016-393 / Verify Error 016-394 | 1-80 |
| 18-1 | 016-340 Restart Printer | 1-81 |
| 19 | 016-316/016-318 Reseat Memory | 1-83 |
| 20 | 016-370 Restart Printer | 1-84 |
| 21 | Invalid ID 016-383 / Range Chk Error 016-384 / Header Error 016-385 / Check Sum Error 016-386 / Format Error 016-387 / Open Flash Err. 016-388 / Protection Error 016-391 | 1-85 |
| 22 | SMTP Error 016-503/016-764 / POP Error 016-504 / POP login Error 016-505 / SMTP Login Error 016-506/016-507 / Address Error 016-767 / From Address Error 016-768 / Network Error 016-786 / Network Not Ready 016-790/016-794 | 1-86 |
| 23 | Memory Full 016-700 | 1-87 |
| 24 | PCL Request 016-720 | 1-88 |
| 25 | Invalid User 016-757 | 1-89 |
| 26 | Disabled Func 016-758 | 1-90 |
| 27 | Reached Limits 016-759 | 1-91 |
| 28 | Invalid Job 016-799 | 1-92 |
| 29 | Memory Full 016-980 | 1-93 |
| 30 | Collate Full 016-981 | 1-94 |
| 31 | File size limits 016-986 / H/W Error 017-971/017-972/017-973/017-974 / File Error 017-975/017-976/017-977/017-978/017-979/017-986/017-987/017-989/033-502/035-779/Report error 017-980 / Memory Full 033-787 / Cancel 033-789/033-790/033-791 /116-396/116-397/116-398/116-987/117-314/117-315/117-322/117-328/117-335/117-336/117-337/117-340/117-348/117-349/117-350/117-362/117-363/133-231/133-234/133-235 Restart Printer | 1-95 |
| 32 | Memory Full 017-970/033-503/033-788 / Communication 033-513 / Accumulation Limit 033-795 | 1-96 |
| 33 | PCScan Time Out 017-988 | 1-97 |
| 34 | Download Mode Send FW Data 024-360 | 1-99 |
| 35 | 024-362 Restart Printer | 1-100 |
| 36 | Load Tray 1 024-910 | 1-101 |
| 37 | Load SSF 024-914 | 1-102 |
| 38 | Load Tray 1 024-965 / Illegal Settings | 1-103 |
| 39 | Load SSF 024-969 / 075-923 Reseat paper | 1-104 |
| 40 | SMB Login Error 031-521/031-522 | 1-105 |
| 41 | SMB Error 031-523/031-528 / DNS Error 031-526 | 1-106 |
| 42 | SMB Login Error 031-524 | 1-107 |
| 43 | SMB Error 031-525 | 1-108 |
| 44 | SMB Login Error 031-529/031-541/031-546/031-547 / SMB Path Error 031-530 / SMB List Error 031-531 / SMB Error 031-532/031-533/031-534/031-535/031-536 / FTP Error 031-576/031-580/031-581/031-582/031-584/031-585/031-587/031-588 / FTP Login Error 031-578 / FTP Path Error 031-579 | 1-109 |
| 45 | Communication 033-500 / Codec Error 033-514/033-515/033-516/033-765/033-766/033-767/Buffer 033-774/033-776/033-785/117-310/117-311/117-312/133-236/133-237/133-238/133-239/133-240/133-241/133-242/133-243/133-244/133-246/133-247/133-248/133-249/133-251/133-252/133-253/133-259/133-260/133-261/133-269/133-271/133-272/133-273/133-274/133-275/133-276/133-277/133-278/133-279/133-280/133-281/133-282/133-283/133-286/133-287/133-288/133-289/133-290 Restart Printer | 1-110 |
| 46 | Codec Error 033-501 / Communication 033-763 | 1-111 |
| 47 | Codec Error 033-510/033-520/033-521/033-522/033-523/033-524/033-525/033-526/033-768/033-769/033-770/033-771/033-772/033-773/033-786 | 1-112 |
| 48 | Communication 033-511/033-782/033-799/034-508/035-702/035-704/035-705/035-708/035-709/035-710/035-716/035-717/035-728/035-729/035-737/035-739/035-740/035-742 | 1-113 |
