Brand: Dell
Category: Printer
Document Type: Manual
Language: EN
Manual for 5110cn
Uploaded: Nov. 21, 2025, 8:27 p.m.
Manual Publish Date: 2007-11-12
Warranty Information
None
- Ensure the printer is properly grounded.
- Install the printer in a well-ventilated area, away from extreme temperatures, humidity, dust, or direct sunlight.
- Use only specified paper types and handle the printer with care.

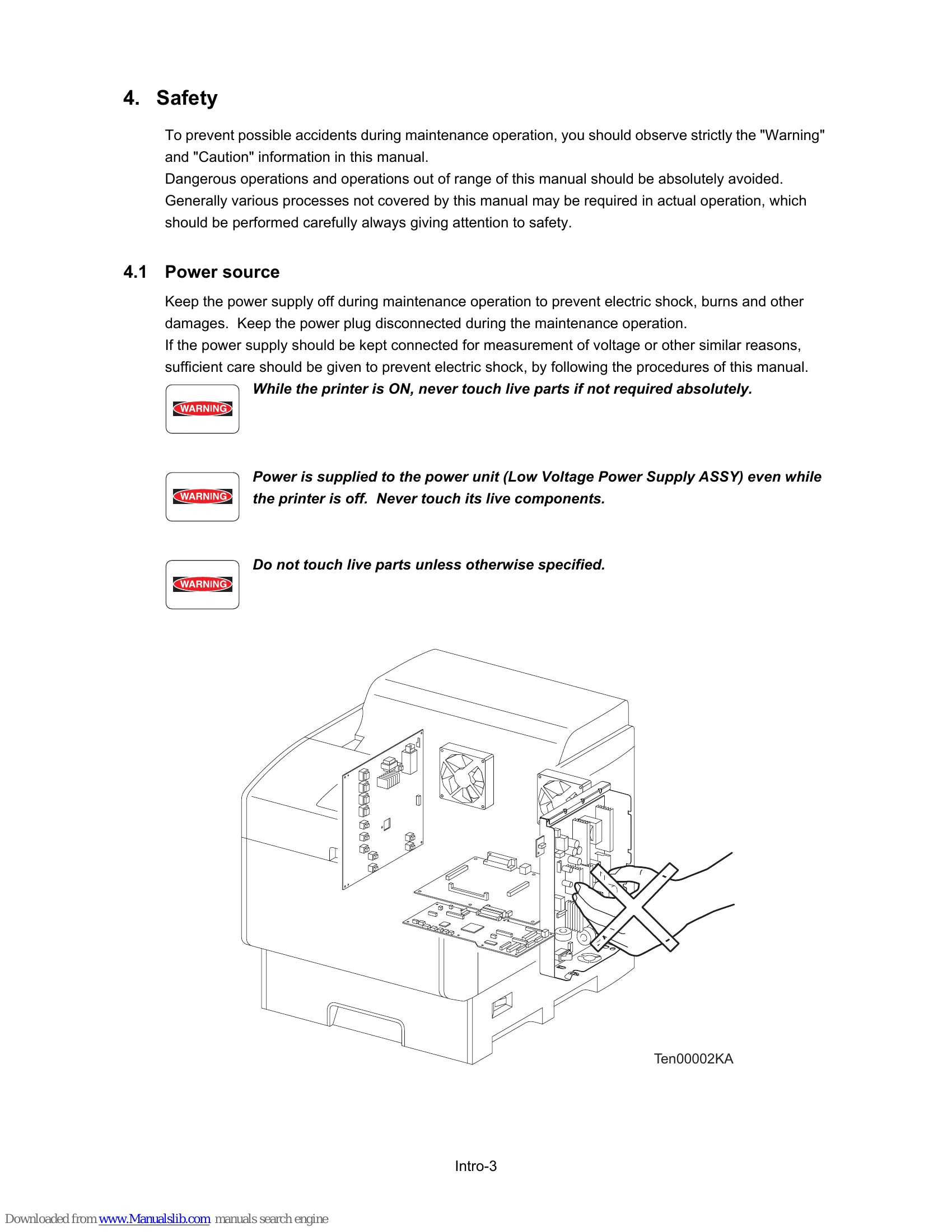

- Follow all safety warnings and cautions during operation and maintenance.
- Refer to the manual for specific troubleshooting procedures and diagnostic tools.
Troubleshooting and error codes
| FIP | Description | Page |
|---|---|---|
| FIP-1 | 001-360/001-363/001-364/001-366 Restart Printer | 1 - 25 |
| FIP-2 | 001-361/001-363/001-365/001-366 Restart Printer | 1 - 26 |
| FIP-3 | 001-362/001-364/001-365/001-366 Restart Printer | 1 - 27 |
| FIP-4 | 003-340/003-341/003-342/003-344/003-345/003-346/003-347/003-348/003-349/003-350/003-351 Restart Printer | 1 - 28 |
| FIP-5 | 003-343 Restart Printer | 1 - 29 |
| FIP-6 | 003-356 Restart Printer | 1 - 31 |
| FIP-7 | 004-310 Restart Printer | 1 - 34 |
| FIP-8 | 006-370/006-371/006-372/006-373/006-374/006-375/006-376/006-377/006-378/006-379/006-380/006-381/006-382/006-383/006-384 Restart Printer | 1 - 35 |
| FIP-9 | 007-342/007-345/007-346/007-348 Restart Printer | 1 - 36 |
| FIP-10 | 007-343/007-345/007-347/007-348 Restart Printer | 1 - 37 |
| FIP-11 | 007-344/007-346/007-347/007-348 Restart Printer | 1 - 38 |
| FIP-12 | 009-340/009-341 Restart Printer | 1 - 39 |
| FIP-13 | 009-360/009-361/009-362/009-363 Restart Printer | 1 - 40 |
| FIP-14 | 010-354 Restart Printer | 1 - 41 |
| FIP-15 | 010-378/010-379/010-380/010-381/010-382/010-383/010-384/010-385/010-386/010-387/010-388/010-389/010-390/010-391/010-392/010-393/010-394/010-395/010-396/010-397 Restart Printer | 1 - 42 |
| FIP-16 | 016-300/016-301/016-302/016-310/016-311/016-313/016-315/016-317/016-323/016-324/016-327/016-340/016-344/016-345/016-346 Restart Printer/Erase Flash Err. 016-392/Write Flash Err. 016-393/Verify Error 016-394 | 1 - 43 |
| FIP-17 | 016-312 Restart Printer | 1 - 44 |
| FIP-18 | 016-316/016-318 Restart Printer | 1 - 45 |
| FIP-19 | 016-330/016-331/016-332/016-333/016-334/016-335/016-336/016-337 Restart Printer | 1 - 46 |
| FIP-20 | 016-338 Restart Printer | 1 - 48 |
| FIP-21 | 016-350 Restart Printer | 1 - 49 |
| FIP-22 | 016-360/016-361 Restart Printer | 1 - 50 |
| FIP-23 | 016-370 Restart Printer | 1 - 51 |
| FIP-24 | Paper Jam 077-902 | 1 - 52 |
| FIP-25 | Paper Jam 077-900 | 1 - 53 |
| FIP-26 | Paper Jam 071-101 | 1 - 54 |
| FIP-27 | Paper Jam 077-907 | 1 - 60 |
| FIP-28 | Load Tray N 024-910/024-911/024-912/024-913/024-914 | 1 - 61 |
| FIP-29 | Exit Tray Full 024-920 | 1 - 62 |
| FIP-30 | Load MPF 024-969/Load Tray N 024-965/024-966/024-967/024-968/024-969 | 1 - 63 |
| FIP-31 | Tape On XXX Toner 093-919/093-920/093-921/093-922 | 1 - 66 |
| FIP-32 | Insert Toner Cart 093-970 | 1 - 67 |
| FIP-33 | Insert Toner Cart 093-971 | 1 - 68 |
| FIP-34 | Insert Toner Cart 093-972 | 1 - 69 |
| FIP-35 | Insert Toner Cart 093-973 | 1 - 70 |
| FIP-36 | Replace Toner 093-930 | 1 - 71 |
| FIP-37 | Replace Toner 093-931 | 1 - 72 |
| FIP-38 | Replace Toner 093-932 | 1 - 73 |
| FIP-39 | Replace Toner 093-933 | 1 - 74 |
| FIP-40 | Ready to Print 093-423 | 1 - 75 |
| FIP-41 | Ready to Print 093-424 | 1 - 76 |
| FIP-42 | Ready to Print 093-425 | 1 - 77 |
| FIP-43 | Ready to Print 093-426 | 1 - 78 |
| FIP-44 | Toner Type 093-980/093-981/093-982/093-983/CRUM ID 093-960/093-961/093-962/093-963 | 1 - 79 |
| FIP-45 | Insert Drum 091-972 | 1 - 81 |
| FIP-46 | Imaging Drum 091-935 | 1 - 82 |
| FIP-47 | Ready to Print 094-402 | 1 - 83 |
| FIP-48 | Imaging Drum 091-912/CRUM ID 093-965 | 1 - 84 |
| FIP-49 | Replace Fuser 010-351 | 1 - 85 |
| FIP-50 | Insert Fuser 010-317 | 1 - 86 |
| FIP-51 | Ready to Print 010-421 | 1 - 87 |
| FIP-52 | Fuser Type 010-358/CRUM ID 093-964 | 1 - 88 |
| FIP-53 | Transfer Roller 094-911 | 1 - 89 |
| FIP-54 | Ready to Print 094-422 | 1 - 90 |
| FIP-55 | BTR Not Detected 094-910 | 1 - 91 |
| FIP-56 | Load Tray N 077-912/077-913/077-914/Tray Detached 024-945/024-946/024-947/024-948/024-949 | 1 - 92 |
| FIP-57 | Close Front Door 077-300 | 1 - 93 |
| FIP-58 | CTD Sensor Dirty 092-310/Ready to Print 092-910 | 1 - 95 |
| FIP-59 | Out of Memory 016-700 | 1 - 97 |
| FIP-60 | Disk Full 016-980 | 1 - 98 |
| FIP-61 | PCL Request 016-720 | 1 - 100 |
| FIP-62 | Invalid Job 016-799 | 1 - 101 |
| FIP-63 | Ready to Print 193-700 | 1 - 102 |
| FIP-64 | Invalid ID 016-383/Range Chk Error 016-384/Header Error 016-385/Check Sum Error 016-386/Format Error 016-387 | 1 - 103 |
| FIP-65 | MPC Error 016-388/MPC Detached 016-389/MPC Com. Failed 016-390 | 1 - 104 |
| FIP-66 | Invalid User 016-757/Disabled Func 016-758/Reached Limits 016-759 | 1 - 106 |
| P1 | "Light (Undertoned) Prints" | 1 - 113 |
| P2 | "Blank Prints" | 1 - 116 |
| P3 | "Solid Prints" | 1 - 118 |
| P4 | "Vertical deletion or blank line" | 1 - 119 |
| P5 | "Horizontal deletion or blank line" | 1 - 122 |
| P6 | "Black (color) spots" | 1 - 125 |
| P7 | "Background or Foggy Print" | 1 - 128 |
| P8 | "Skewed paper" | 1 - 130 |
| P9 | "Paper Damage" | 1 - 134 |
| P10 | "Unfused Image or Image Easily Rubs off of Page" | 1 - 139 |
| P11 | "Vertical Dark Line" | 1 - 140 |
| P12 | "Afterimage (Ghost)" | 1 - 141 |
| P13 | "Partial Deletion" | 1 - 142 |
| P14 | "Horizontal Line (Periodical)" | 1 - 143 |
| P15 | "Fade Horizontal/Vertical" | 1 - 145 |
| P16 | "Color Registration (Color Shift)" | 1 - 147 |
| FIP-No Power | - | 1 - 150 |
| FIP-Multiple Feed | - | 1 - 151 |
| FIP-1.N1 | When Power is Turned On | 1 - 153 |
| FIP-1.N2 | During Standby | 1 - 154 |
| FIP-1.N3 | During Printing | 1 - 155 |
