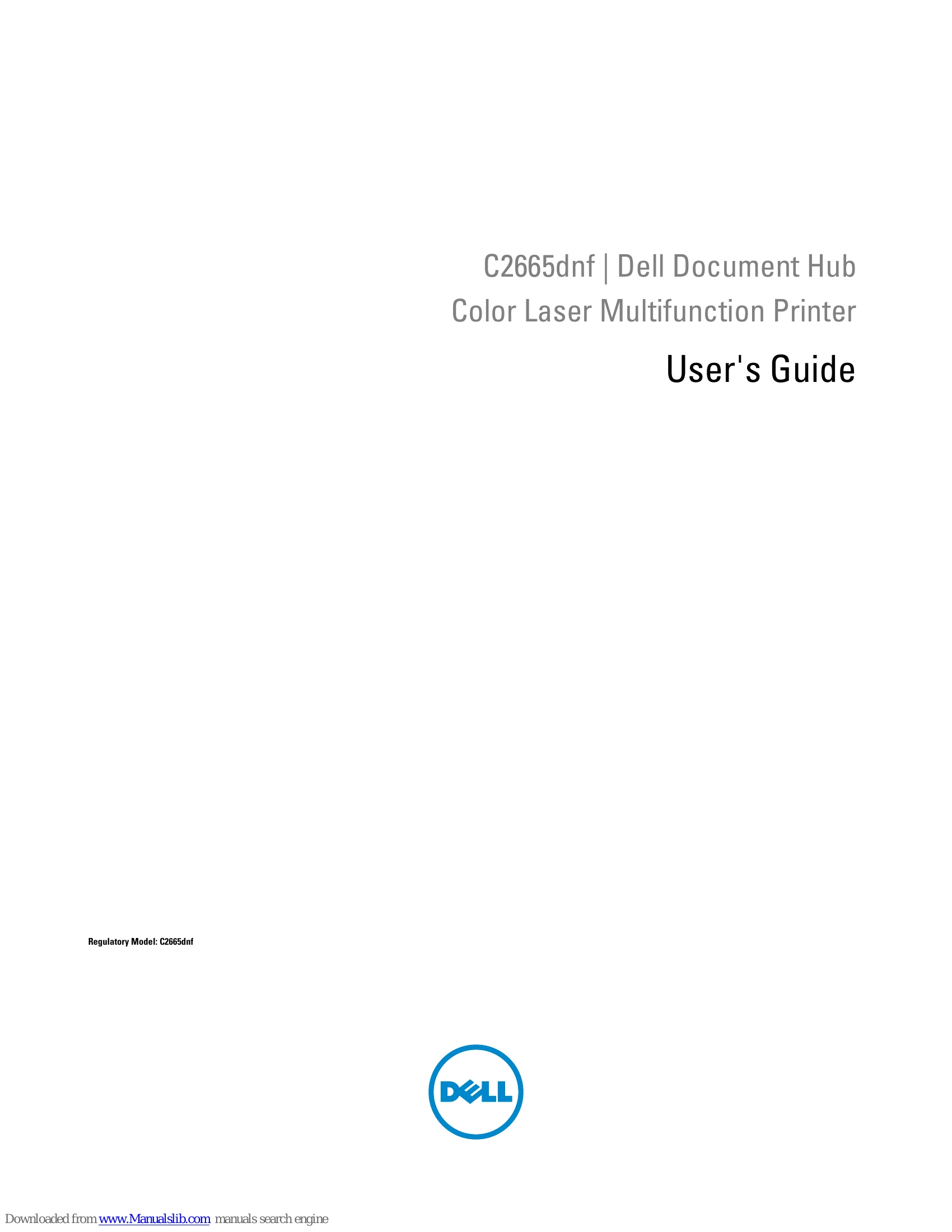

Manual for C2665dnf

Name: Manual for C2665dnf
Brand: Dell
Availability: InStock

Brand: Dell

Category: Printer

Document Type: Manual

Language: EN

Uploaded: Sept. 12, 2025, 4:21 a.m.

Warranty Information

For information about the Dell warranty for your printer, see dell.com/support.

Getting Started

Setup: Unpack your printer, remove all shipping tape, and install toner cartridges. Connect the printer to your computer or network using USB or Ethernet. Install the printer drivers from the provided disc or download them from the Dell website. Follow the on-screen prompts to complete the setup.

Basic Operations: Use the operator panel (touchscreen) to navigate menus, select functions like Copy, Scan, or Fax, and adjust settings. Access advanced features and settings through the Dell Printer Configuration Web Tool by entering the printer's IP address into a web browser.

Printing: Send print jobs from your computer. Options include standard printing, duplex printing, and printing from USB memory. Customize print settings such as paper size, quality, and collating.

Copying: Place documents on the glass or in the DADF. Select copy options like quantity, color, and duplexing on the operator panel.

Scanning: Scan documents to email, PC, network, or USB. Configure scan settings and destinations as needed.

Faxing: Set up fax initial settings. Send faxes manually, from memory, or directly from your computer. Configure receiving options and speed dial settings.

Troubleshooting and error codes

Problem Area	Specific Problem	Possible Cause	Solution
Printing Problems	The output is too light.	1. Toner density is set too low.	1. Adjust toner density in printer settings.
	Toner smears or print comes off	1. Fuser unit may be dirty or malfunctioning.	1. Clean the fuser unit. If the problem persists, contact Dell support.
	Random spots/Blurred images	1. Toner cartridge is low or defective.	1. Replace the toner cartridge.
	The entire output is blank.	1. Toner cartridge is empty or not installed correctly.	1. Check toner cartridge installation. Replace if empty.
	Streaks appear on the output.	1. Drum cartridge is dirty or damaged.	1. Clean or replace the drum cartridge.
Jam/Alignment Problems	The top and side margins are incorrect.	1. Paper guides are not set correctly.	1. Adjust paper guides to match the paper size.
Jam/Alignment Problems	Color registration is out of alignment	1. Color calibration is needed.	1. Run the color registration adjustment from the printer's menu.
