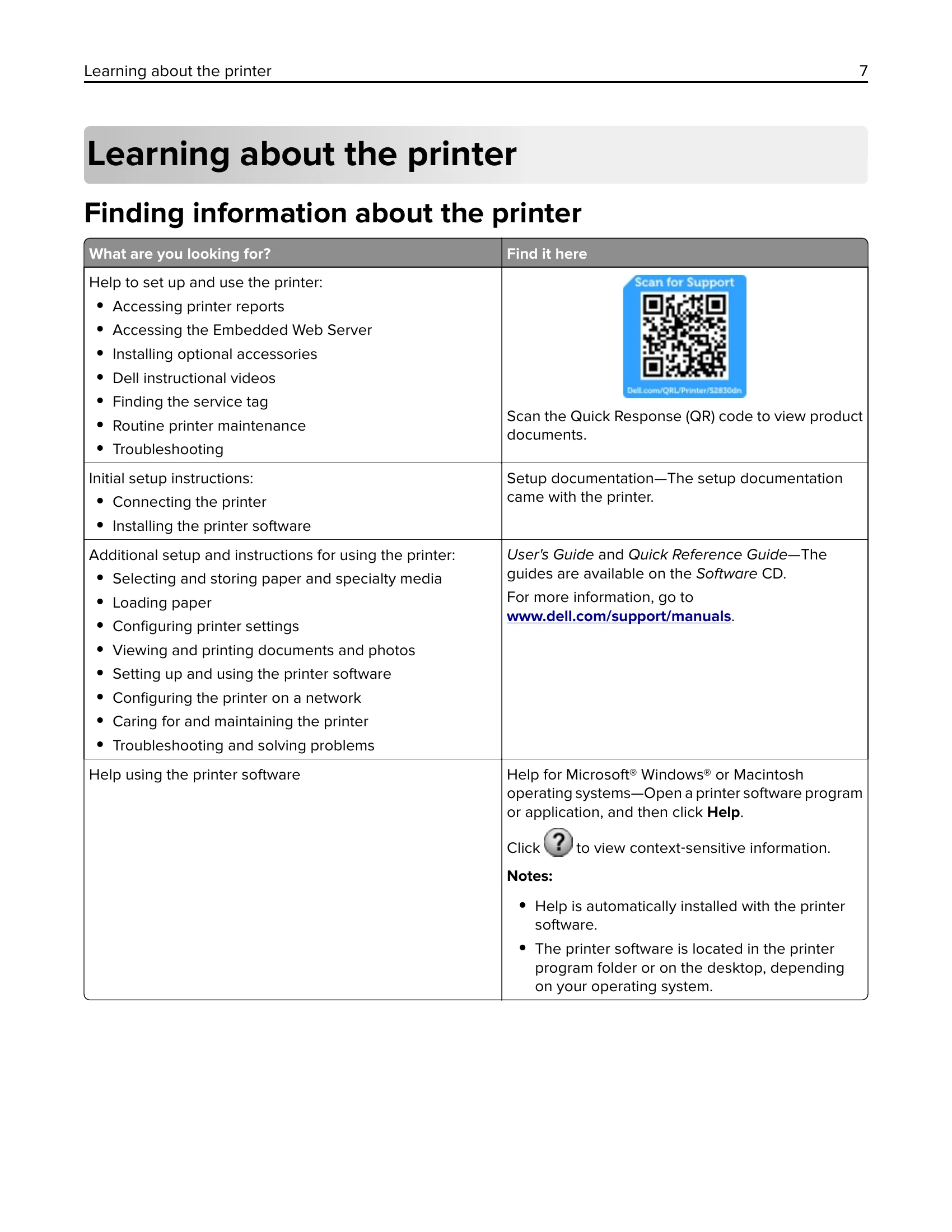

Manual for S2830dn
Uploaded: Sept. 12, 2025, 4:18 a.m.
Manual Publish Date: 2016-05-01
Warranty Information
Refer to the Product Information Guide for information about the Dell warranty for your printer.
Using the Printer
This section covers the basic operation of your Dell S2830dn printer.
Loading Paper
Learn how to load paper into the standard tray, multipurpose feeder, and optional trays. Ensure you select the correct paper size and type in the printer settings.
Printing Documents
Print documents from your computer or mobile device. This guide explains how to send print jobs and cancel them if needed.
Printer Menus
Navigate through the printer's control panel menus to access various settings, including paper, reports, network, security, and general settings.
Maintenance and Troubleshooting
Understand how to clean the printer, replace supplies, and resolve common issues like paper jams and print quality problems. The guide also provides steps for contacting technical support.
Troubleshooting and error codes
| Action | Yes | No |
| Step 4 a Reinstall the imaging unit. 1 Remove the toner cartridge, and then the imaging unit. Warning—Potential Damage: Do not expose the imaging unit to direct light for more than 10 minutes. Extended exposure to light may cause print quality problems. 2 Install the imaging unit, and then the cartridge. b Resend the print job. | Go to step 5. | The problem is solved. |
| Do streaked vertical lines appear on prints? | ||
| Step 5 Replace the imaging unit, and then resend the print job. | Contact technical support or your Dell printer dealer. | The problem is solved. |
| Do streaked vertical lines appear on prints? | ||
| Horizontal voids appear on prints | ||
| Action | Yes | No |
| Step 1 a Make sure your software program is using a correct fill pattern. b Resend the print job. | Go to step 2. | The problem is solved. |
| Do horizontal voids appear on prints? | ||
| Step 2 a Load the specified tray or feeder with a recommended type of paper. b Resend the print job. | Go to step 3. | The problem is solved. |
| Do horizontal voids appear on prints? | ||
| Vertical voids appear on prints | ||
| Action | Yes | No |
| Step 1 a Make sure your software program is using a correct fill pattern. b Resend the print job. | Go to step 2. | The problem is solved. |
| Do vertical voids appear on prints? | ||
| Step 2 a From the printer control panel, set the paper type and weight in the Paper menu to match the paper loaded in the tray. b Resend the print job. | Go to step 3. | The problem is solved. |
| Do vertical voids appear on prints? | ||
