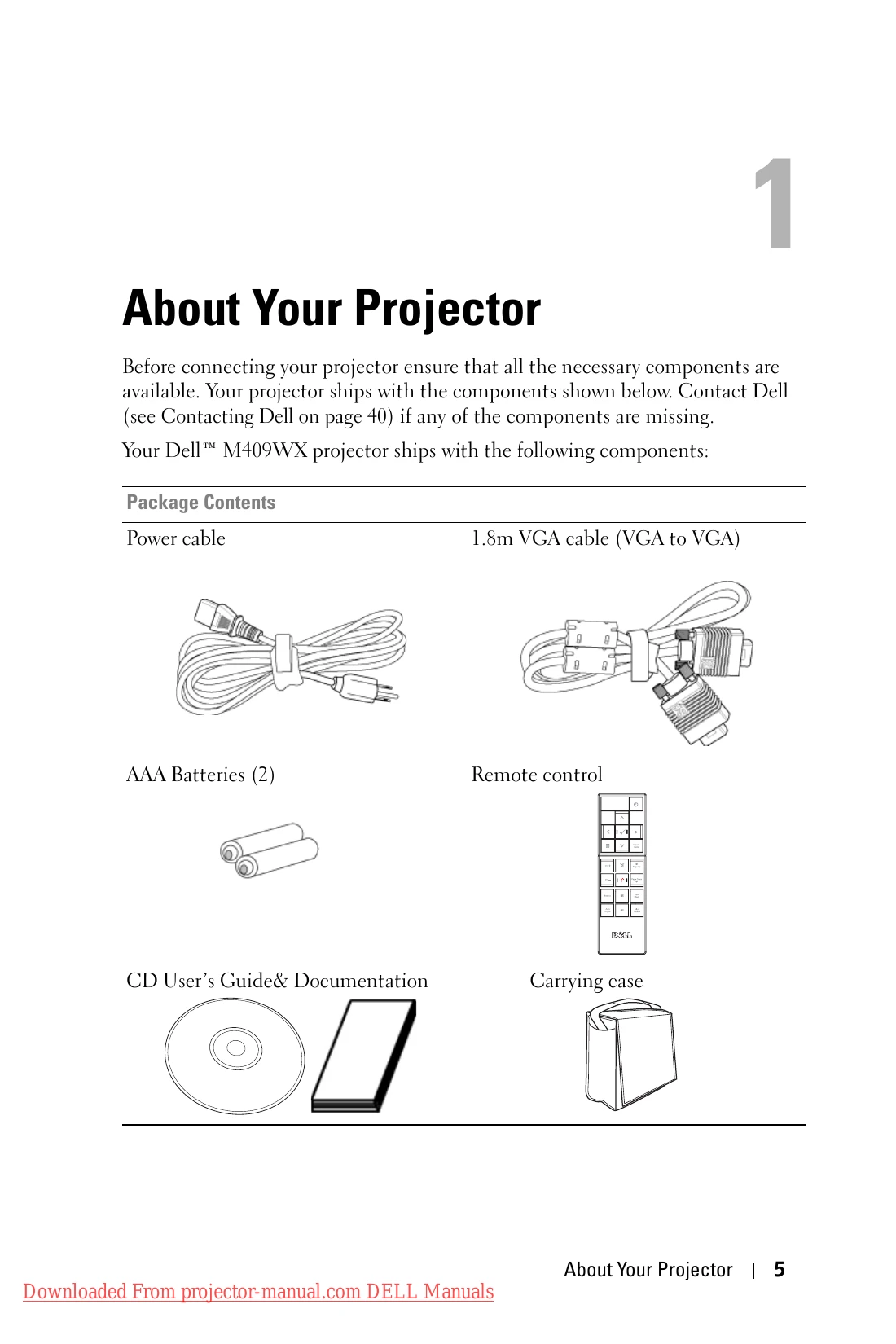

Turning Your Projector On

  1. Remove the lens cap.
  2. Connect the power cable and appropriate signal cables.
  3. Press the projector Power button.
  4. Turn on your source (computer, DVD player, etc.). The projector automatically detects your source.
  5. If the "Searching for signal..." message appears, ensure cables are securely connected.

Turning Your Projector Off

  1. Press the Power button twice to turn off the projector.
  2. Cooling fans run for 90 seconds.
  3. (Optional quick turn off) Press the Power button while fans are running.
  4. Wait 60 seconds before turning on again.
  5. Disconnect the power cable.

Adjusting the Projected Image

  • Height: Press the Elevator button to raise/lower the projector. Use the tilt adjustment wheel to fine-tune the angle.
  • Zoom and Focus: Rotate the zoom tab to zoom. Rotate the focus ring until the image is clear.

Using the Control Panel/Remote

Use the buttons to navigate menus, select inputs, adjust settings (Picture, Display, etc.), and control power.

Troubleshooting and error codes

Problem (continued) Possible Solution (continued)
The image is stretched when displaying a 16:9 DVD The projector automatically detects the input signal format and maintains the aspect ratio of the projected image according to input signal format with a default setting.
If the image is still stretched, adjust the aspect ratio as follows:
  • If you are playing a 16:9 DVD, select 4:3 aspect ratio type on your DVD player.
  • If you cannot select 4:3 aspect ratio type on your DVD player, select 4:3 aspect ratio in the Set Up menu in the OSD.
Image is reversed Select Set Up from the OSD and adjust the projector mode.
Lamp is burned out or makes a popping sound When the lamp reaches its end of life, it may burn out and may make a loud popping sound. If this occurs, the projector does not turn back on. To replace the lamp, see on page 35.
The OSD does not appear on the screen Try to press the Menu button on the control panel or remote control for 15 seconds to unlock the OSD. Check the Menu Lock on page 28.
The remote control is not operating smoothly or works only within a limited range The battery may be low. Check if the laser beam transmitted from the remote is too dim. If so, replace with 2 new AAA batteries.
