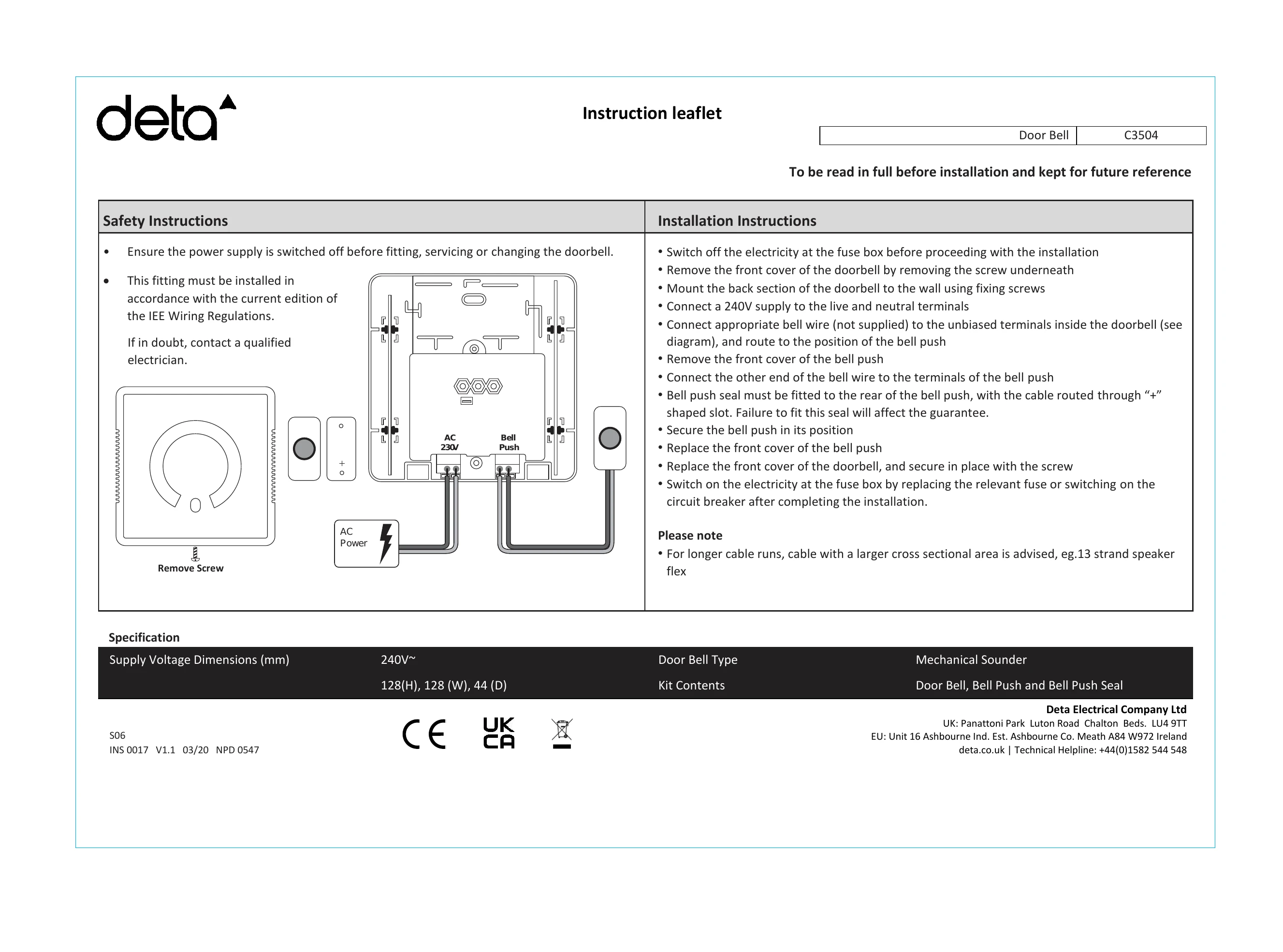

Installation Guide for C3504

Safety Instructions

• Ensure power supply is switched off before fitting, servicing, or changing the doorbell.
• This fitting must be installed in accordance with the current edition of the IEE Wiring Regulations.
• If in doubt, contact a qualified electrician.

Installation Instructions

• Switch off the electricity at the fuse box before proceeding with the installation.
• Remove the front cover of the doorbell by removing the screw underneath.
• Mount the back section of the doorbell to the wall using fixing screws.
• Connect a 240V supply to the live and neutral terminals.
• Connect appropriate bell wire (not supplied) to the unbiased terminals inside the doorbell (see diagram), and route to the position of the bell push.
• Remove the front cover of the bell push.
• Connect the other end of the bell wire to the terminals of the bell push.
• Bell push seal must be fitted to the rear of the bell push, with the cable routed through "+" shaped slot. Failure to fit this seal will affect the guarantee.
• Secure the bell push in its position.
• Replace the front cover of the bell push.
• Replace the front cover of the doorbell, and secure in place with the screw.
• Switch on the electricity at the fuse box by replacing the relevant fuse or switching on the circuit breaker after completing the installation.

Please note

• For longer cable runs, cable with a larger cross sectional area is advised, e.g. 13 strand speaker flex.
