Brand: DEWALT
Category: Vacuum Cleaner
Document Type: Manual
Language: EN

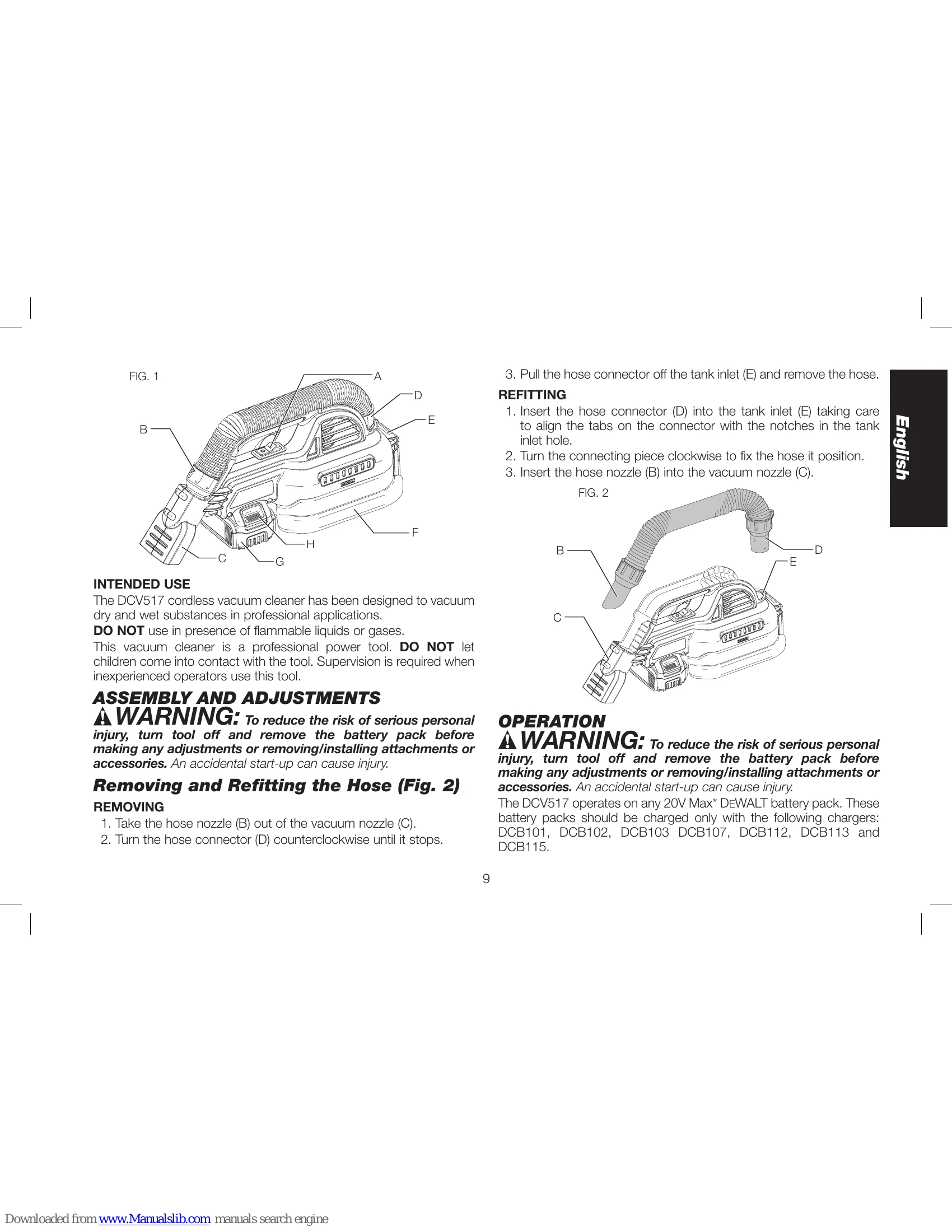

Manual for DCV517
Uploaded: Sept. 12, 2025, 4:26 a.m.
Warranty Information
Warranty information is not explicitly stated in the provided pages.
Using the Vacuum
- Insert DEWALT battery pack.
- Turn machine on by pressing the ON/OFF switch.
- The hose nozzle can be removed from the vacuum nozzle for cleaning limited access areas.
To Empty Tank
- Turn machine off and remove the battery pack.
- Release rear latch and remove tank from unit.
- Empty contents of tank.
- Clean or change filters.
- Inspect for damage and replace if necessary.
- Replace power head onto tank and latch securely.
Filters
The DCV517 has two filters: a high-efficiency wet/dry filter and a secondary filter. Never operate without filters. Clean filters by shaking off excess dust, tapping, and rinsing under running water. Do not use a brush or compressed air. Reinstall filters securely.
Troubleshooting and error codes
| Problem | Possible Cause | Solution |
|---|---|---|
| Charger indicates a problem pack or charger (Red light flashing fast) | Faulty battery pack or charger | Re-insert battery pack. Try a different battery pack. If problem persists, have charger and battery pack tested at authorized service center. |
| Charger detects battery too hot or too cold (Hot/Cold Delay) | Battery temperature outside optimal range | Charging will be suspended until battery reaches optimal temperature. This feature ensures maximum battery life. |
| Battery pack does not charge properly | Receptacle issue, switch turned off, or temperature issue | Check receptacle operation. Ensure receptacle is powered. Move charger and battery pack to a location with 65-75°F (18-24°C) air temperature. If problems persist, take tool, battery pack, and charger to a service center. |
