Brand: Diamond View
Category: CRT Monitor
Document Type: Manual
Language: EN
Manual for 1995SL
Uploaded: Nov. 21, 2025, 7:26 p.m.
Manual Publish Date: 2000-11-01

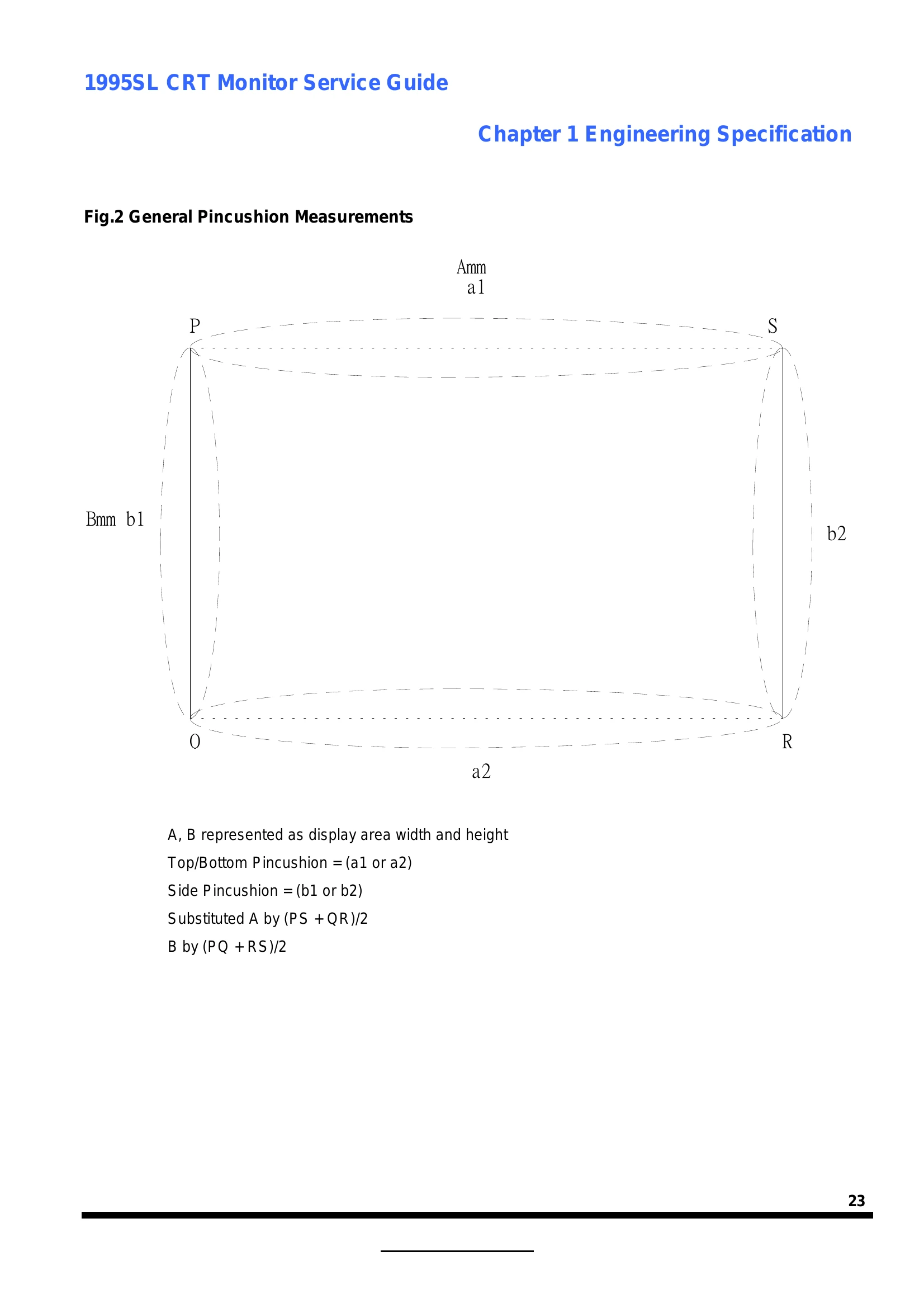

This manual provides detailed engineering specifications, electrical characteristics, environmental and reliability data, CRT characteristics, front-of-screen performance, user controls, mechanical characteristics, and pallet and shipment information for the Diamond View 1995SL CRT Monitor.
It also includes sections on certification, appendices with DDC tables and OSD menus, troubleshooting flowcharts for power supply, MCU, and OSD issues, disassembly instructions, and detailed schematic diagrams of the main board, video board, and TCO circuit.
Troubleshooting and error codes
| Problem | Potential Cause | Solution |
| NO OUTPUT | Fuse F601, BD601 | Replace F601, BD601 |
| NO OUTPUT | Q602, R618, R607, R611 | Replace Q602, R618, R607, R611 |
| NO OUTPUT | D701, D702, D703, D704, D705 | Replace D701, D702, D703, D704, D705 |
| NO OUTPUT | IC601, Q601, Q603, ZD601 | Check IC601, Q601, Q603, ZD601 ok? |
| NO OUTPUT | IC603, ZD602 | Check IC603, ZD602 ok? |
| NO OUTPUT | IC602 | Check IC602, Replace IC602 |
| NO OUTPUT | FR704 | Check FR704, Replace FR704 |
| NO OUTPUT | IC701 | Check IC701, Replace IC701 |
| NO OUTPUT | Q701, Q702, Q704, Q705, Q782 | Replace Q701, Q702, Q704, Q705, Q782 |
