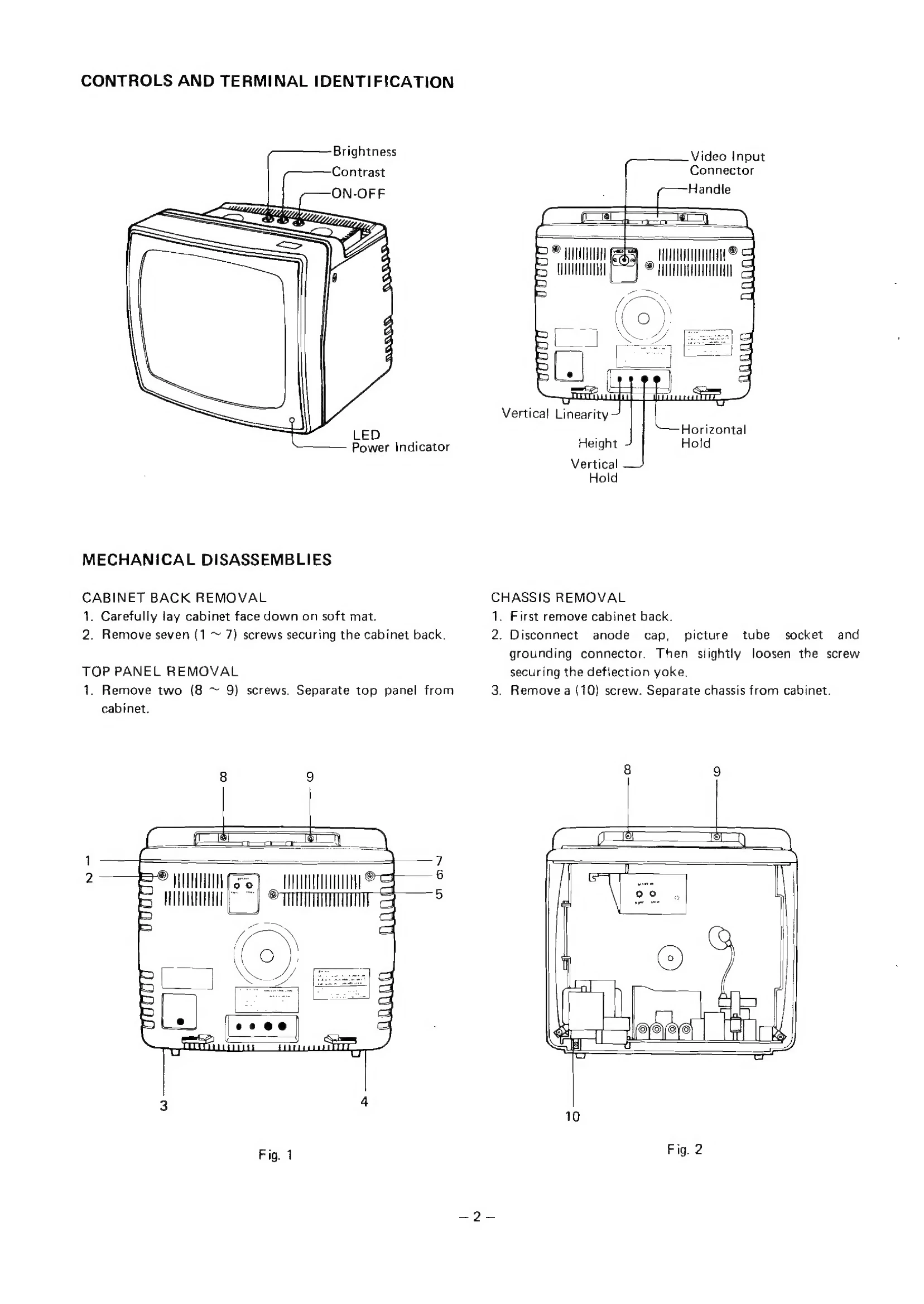

Basic Operation:
This manual provides service information for the DM 5912CXA Data Display. Key operations include applying power and composite video signal for adjustments. Centering the raster is achieved by adjusting the deflection yoke and centering rings. Sub-brightness is set by adjusting VR203 for visual cutoff. Focus is adjusted with VR602. Horizontal hold is set using VR601 and L601. Horizontal width is adjusted with L604 and linearity with L603. Vertical height and linearity are controlled by VR503, VR501, and VR502.
Troubleshooting and error codes
| Symptom | No Picture | Power supply faulty | Check power supply circuit and components. |
|---|---|---|---|
| Symptom | Distorted Picture | Deflection yoke issue | Check deflection yoke connections and alignment. |
| Symptom | Line Sync problems | Horizontal oscillator faulty | Check horizontal oscillator coil (L601) and related components. |
| Symptom | Vertical Roll | Vertical oscillator faulty | Check vertical oscillator circuit and VR503. |
| Symptom | Poor Focus | Focus adjustment incorrect | Adjust Focus control (VR602). |
