Brand: Electrolux
Category: Absorption Refrigerator
Document Type: Manual
Language: EN

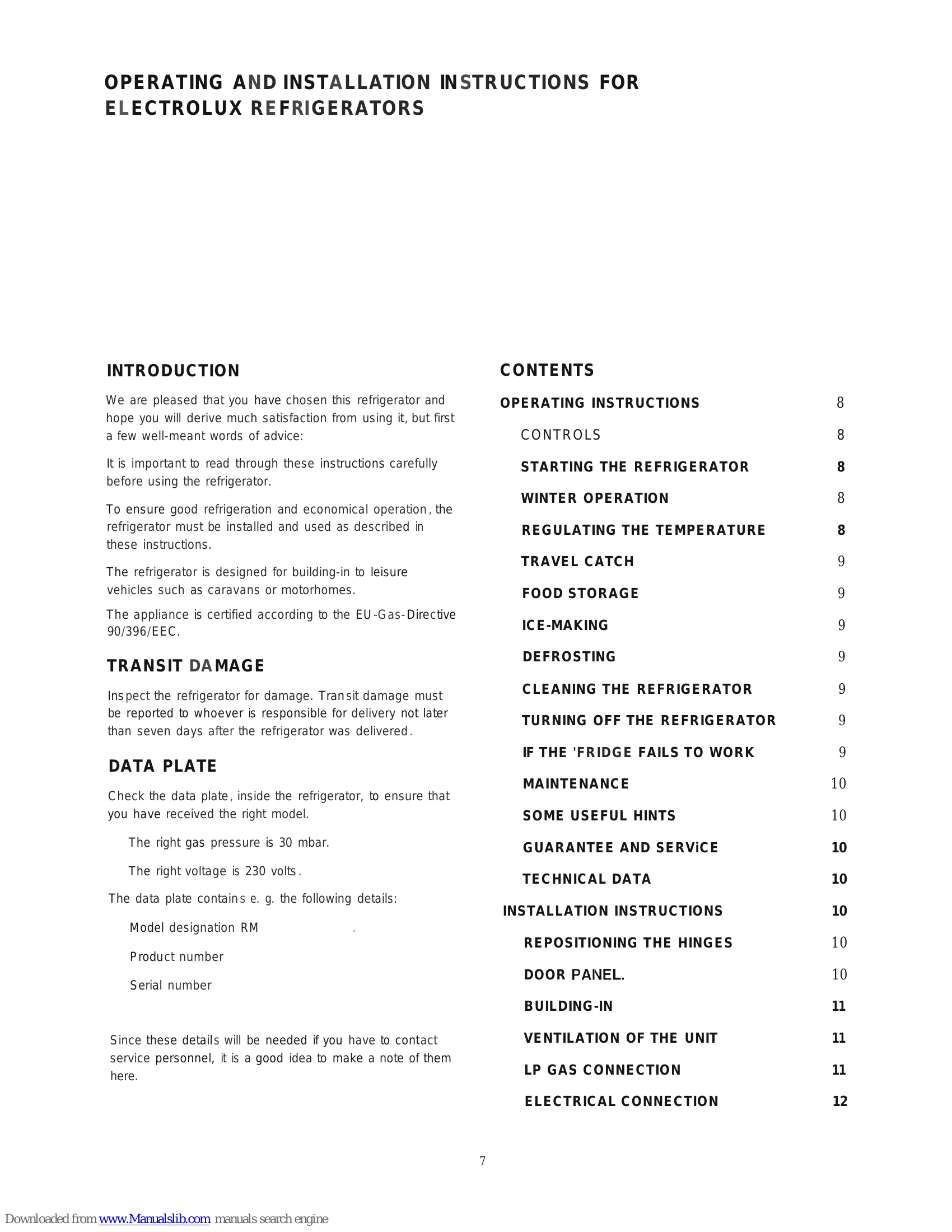

Manual for RM 4270
Uploaded: Nov. 21, 2025, 6:55 p.m.
Manual Publish Date: 1999-06-01
Warranty Information
The refrigerator is guaranteed for one full year under correct usage and in accordance with instructions.
Controls: The refrigerator operates on 230V, 12V, or LP gas. Switches select electric power. Temperature is controlled by a thermostat (230V) or gas thermostat (LP gas). Model RM 4271 has electronic ignition; RM 4270 has manual piezo-electric ignition.
Starting: Follow specific procedures for LP gas, 230V, or 12V operation. Ensure only one energy source is used at a time.
Winter Operation: Protect ventilation grilles from snow/leaves. Winter covers are recommended below 10°C.
Temperature Regulation: Set thermostat to 3-5. Allow several hours for cooling. 12V operation is continuous.
Food Storage: Use closed containers. Cool hot food. Avoid flammable gases. The 2-star compartment is for frozen food storage and ice making, not freezing.
Ice Making: Fill ice tray to just below brim. Spilling water on the freezer shelf can improve contact.
Defrosting: Defrost when frost reaches 3mm. Turn off, remove contents, and allow to melt naturally. Do not use heating appliances or sharp objects.
Cleaning: Use a mild solution of bicarbonate of soda. Avoid detergents, scouring powders, or strong scents.
Turning Off: Set switches to 'O', close gas valve, empty and clean the refrigerator, leaving doors ajar.
Troubleshooting and error codes
| If the fridge fails to work: | Check: |
|---|---|
| 1. | Starting instructions followed. |
| 2. | Refrigerator is level. |
| 3. | Possible to start on any energy source. |
| 4. | Gas failure: Gas bottle not empty, all LP gas valves open. |
| 5. | 12V failure: 12V supply connected, fuse intact, 12V switch on. |
| 6. | 230V failure: 230V supply connected, fuse intact. |
| If the refrigerator is not cold enough: | Possible causes: |
|---|---|
| 1. | Inadequate ventilation (blocked grilles). |
| 2. | Evaporator frosted up. |
| 3. | Incorrect temperature control setting. |
| 4. | Incorrect gas pressure (check regulator). |
| 5. | Ambient temperature too high. |
| 6. | Too much food loaded at once. |
| 7. | Door not closing properly or defective seal. |
| 8. | More than one energy source used. |
