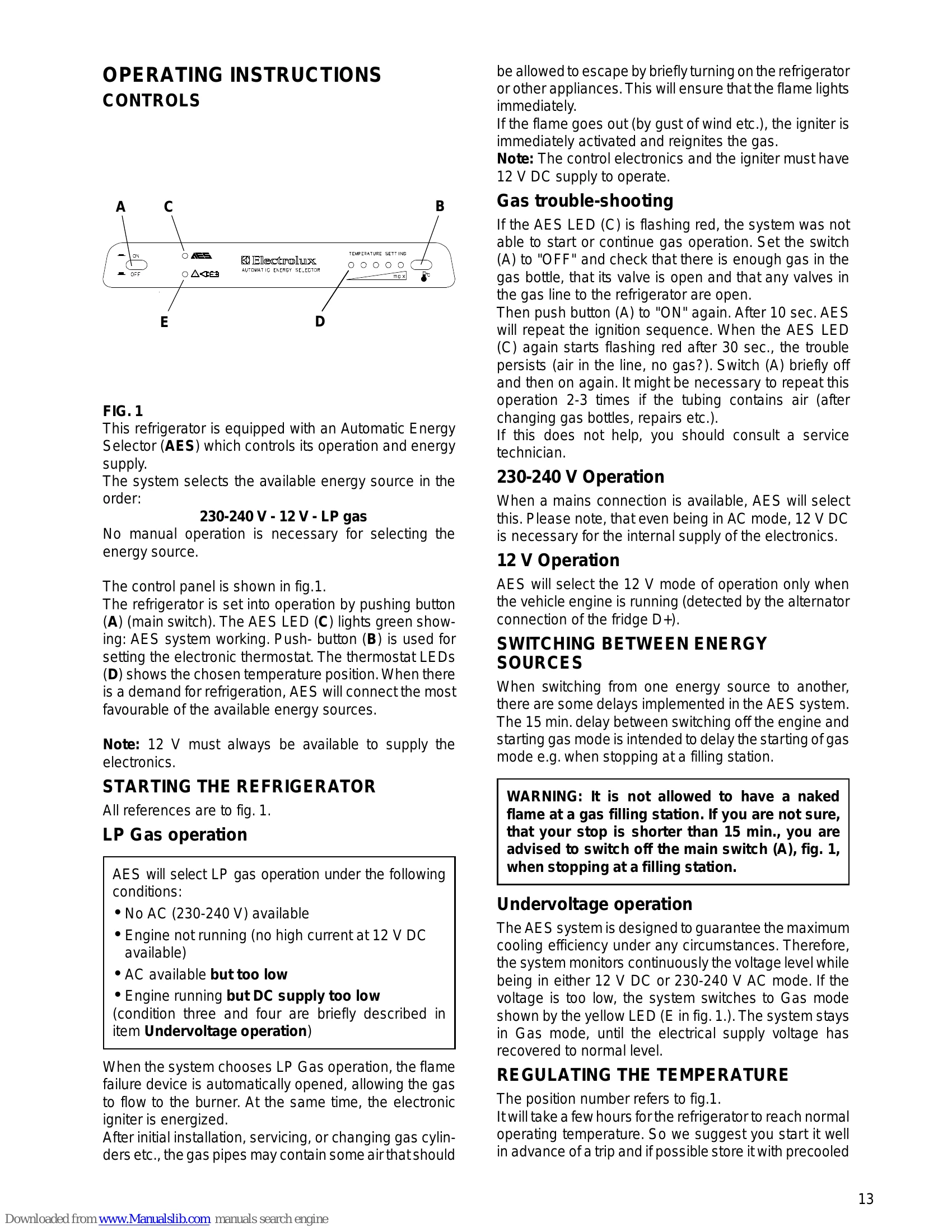

Manual for RM 6505
Uploaded: Sept. 12, 2025, 4:30 a.m.
Introduction
We are pleased that you have chosen this refrigerator and hope you will derive much satisfaction from using it, but first a few well-meant words of advice:
It is important to read through these instructions care- fully before using the refrigerator.
To ensure good refrigeration and economical operation, the refrigerator must be installed and used as described in these instructions.
The refrigerator is designed for installation in motor- homes.
Automatic Energy Selector (AES)
This refrigerator comes with an Automatic Energy Selector (AES) which controls operation and energy supply. To put the refrigerator in operation, just trip the main switch - AES manages the rest.
Transit Damage
Inspect the refrigerator for damage. Transit damage must be reported to whoever is responsible for delivery not later than seven days after the refrigerator was delivered.
Data Plate
Check the data plate, inside the refrigerator, to ensure that you have received the right model. The data plate contains e. g. the following details:
- Model designation
- Product number
- Serial number
- Voltage
- Gas pressure
Since these details will be needed if you have to contact service personnel, it is a good idea to make a note of them here.
Troubleshooting and error codes
| IF THE REFRIGERATOR FAILS TO WORK | Check the following points before calling a service tech- nician: |
| 1. | that the green AES LED goes on, when the switch (A) is set to "ON" (12 V must be available). |
| 2. | when mains are connected but the refrigerator stays in gas operation: Is the refrigerator correctly connec- ted and is the fuse (230-240 V) intact?. |
| 3. | is the 12 V fuse intact? |
| 4. | Disconnect the wall plug, and the 12 V wires before servicing. Check the fuses on the circuit board, (under the black cover at the top of the refrig- erator and behind the control panel). |
| Remove the two screws holding the control panel, pull out the control panel with its electronics. Remove the cover and check the fuses. | |
| 5. | if the refrigerator does not operate in DC mode when the engine is running: Is the alternator (D+) connection made correctly? |
| 6. | if the AES LED (C) flashes red: see chapter Gas trouble-shooting. |
| If the refrigerator is not cold enough it may be because: | |
| 1. | The ventilation is inadequate owing to reduced area of the ventilation passages (partial blockage of grilles from wire mesh etc.). |
| 2. | The evaporator is frosted up. |
| 3. | The temperature control setting is incorrect. |
| 4. | The gas pressure is incorrect - check the pressure regulator at the gas container. |
| 5. | The ambient temperature is too high. |
| 6. | Too much food is loaded at one time. |
| 7. | The door is not properly closed or the magnetic sealing strip is defective. |
| If the refrigerator still does not work properly, call a service technician. | |
| WARNING! The sealed cooling system must not be opened, since it contains corroding chemi- cals under high pressure. | |
