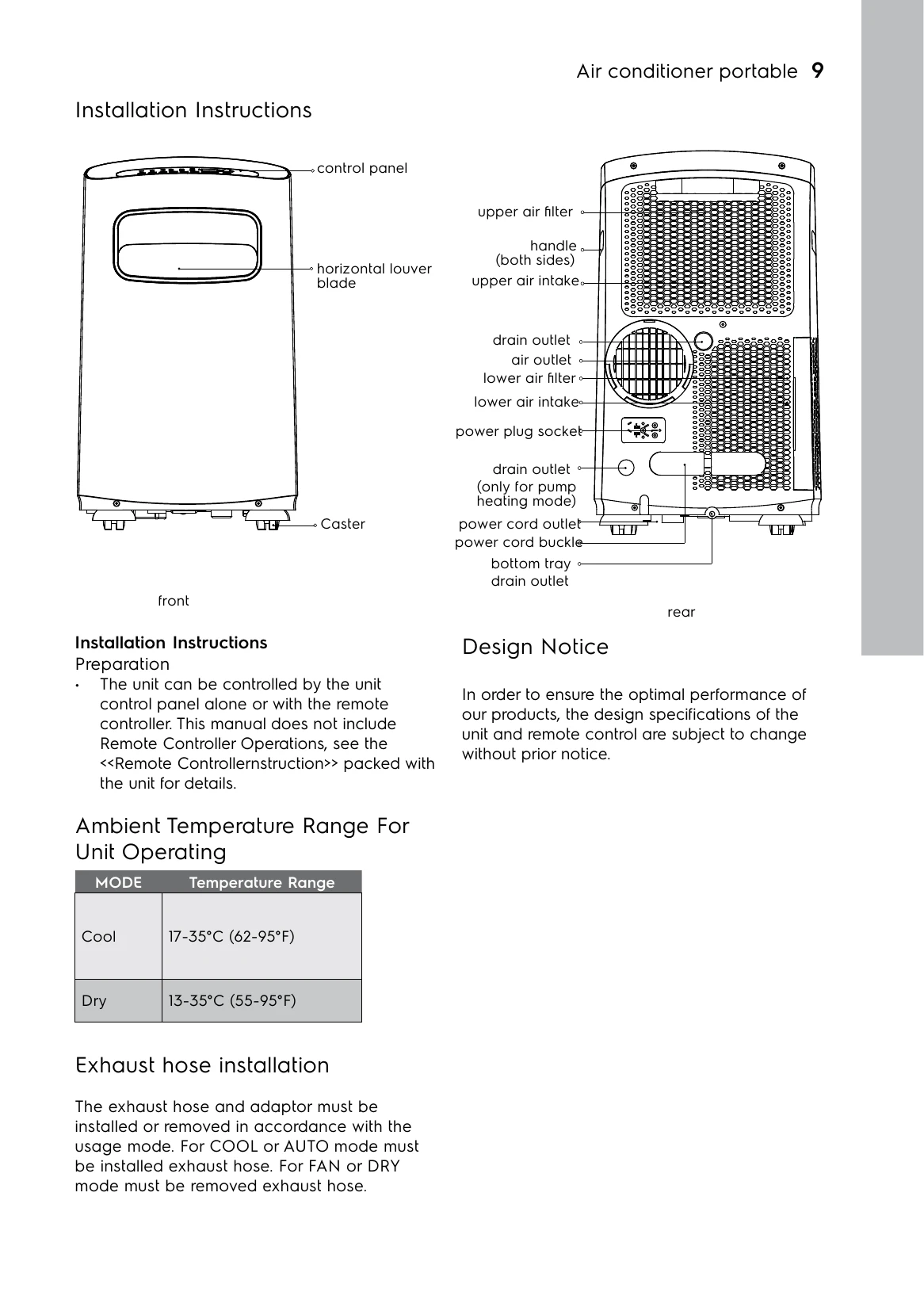

Manual for EACM-09 CG/N6, EACM-12 CG/N6
Uploaded: Sept. 12, 2025, 4:25 a.m.
Warranty Information
Warranty covers defects in materials and workmanship for two years from the purchase date.
Basic Operation:
- Power: Turn the unit on or off using the Power button.
- Mode Selection: Cycle through AUTO, COOL, DRY, and FAN modes using the MODE button. Indicator lights show the active mode.
- Temperature Adjustment: Use the Up (+) and Down (-) buttons to set the desired temperature in COOL mode (17-30°C or 62-86°F).
- Fan Speed: Select fan speed (LOW, MID, HIGH, AUTO) using the FAN button.
- Timer: Set Auto-ON or Auto-OFF timers using the TIMER button in conjunction with the +/- buttons.
- Sleep/Eco Mode: Activate for gradual temperature adjustment over 7 hours.
- Swing: Control the louver direction with the SWING button.
Special Features:
- Follow Me: Allows the remote control to act as a thermostat.
- Auto-Restart: Unit resumes previous settings after a power cut.
- Power Management: Automatically stops the compressor and fan when ambient temperature is below set temperature.
- Water Drainage: Continuous drainage can be set up for dehumidifying modes.
Troubleshooting and error codes
| Problem | Possible Causes | Solution |
|---|---|---|
| Unit does not turn on when pressing ON/OFF button | P1 Error Code | The Water Collection Tray is full. Turn off the unit, drain the water from the Water Collection Tray and restart the unit. |
| In COOL mode: room temperature is lower than the set temperature | Reset the temperature | |
| Unit does not cool well | The air filter is blocked with dust or animal hair | Turn off the unit and clean the filter according to instructions |
| Exhaust hose is not connected or is blocked | Turn off the unit, disconnect the hose, check for blockage and reconnect the hose | |
| The unit is low on refrigerant | Call a service technician to inspect the unit and top off refrigerant | |
| Temperature setting is too high | Decrease the set temperature | |
| The windows and doors in the room are open | Make sure all windows and doors are closed | |
| The room area is too large | Double-check the cooling area | |
| There are heat sources inside the room | Remove the heat sources if possible | |
| The unit is noisy and vibrates too much | The ground is not level | Place the unit on a flat, level surface |
| The unit makes a gurgling sound | The air filter is blocked with dust or animal hair | Turn off the unit and clean the filter according to instructions |
| This sound is caused by the flow of refrigerant inside the unit | This is normal |
