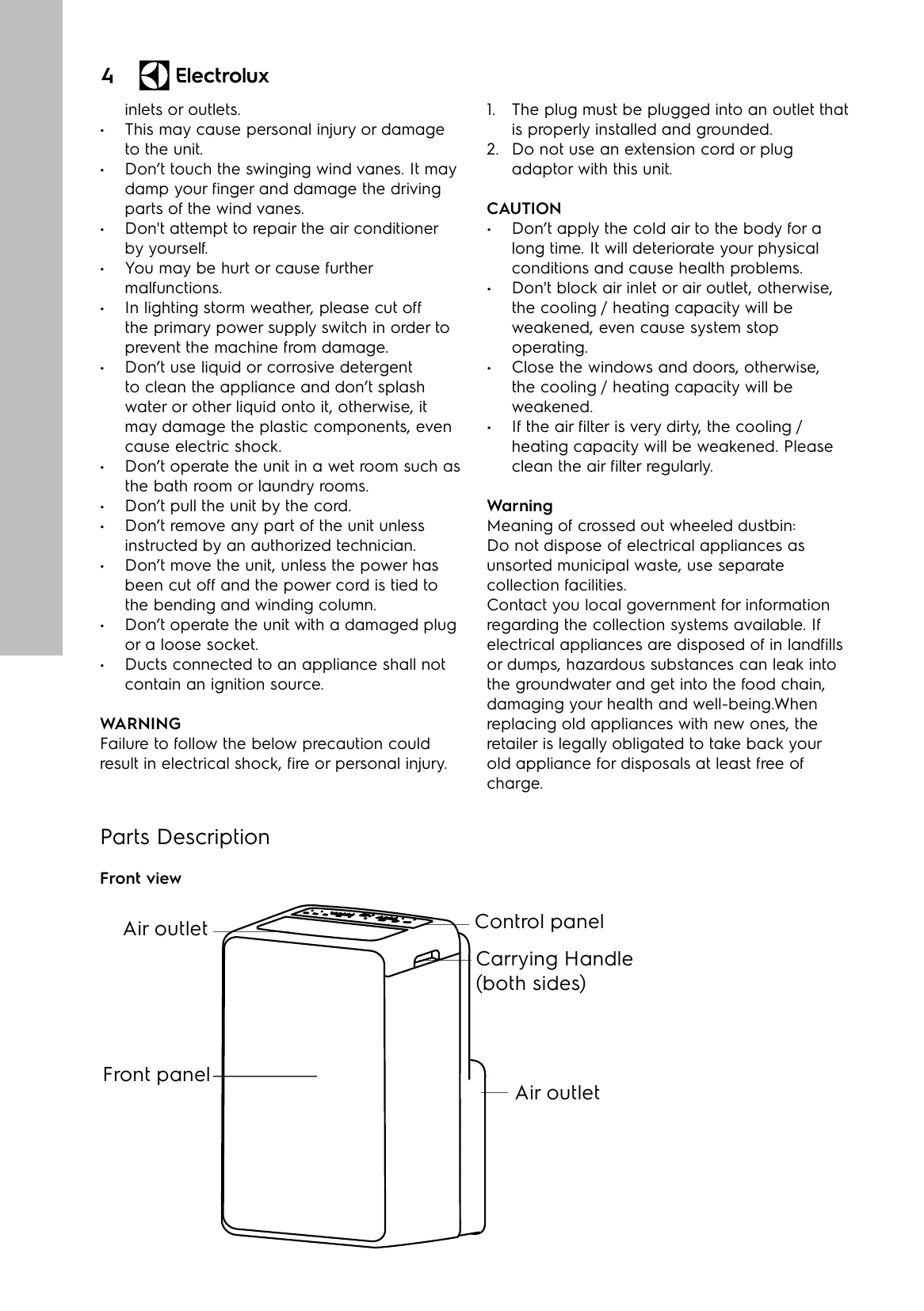

Manual for EACM-09 HR/N6
Uploaded: Nov. 21, 2025, 9:09 p.m.
Warranty Information
The warranty is for two years from the purchase date and covers defects in materials and workmanship.
- Powering On/Off: Press the ON/OFF button to start or stop the unit.
- Mode Selection: Use the MODE button to cycle through AUTO, COOL, DRY, FAN, and HEAT (if available) modes.
- Temperature Adjustment: Use the '+' and '-' buttons to set the desired temperature. The indicator shows the setting temperature in COOL/HEAT modes, and room temperature in AUTO/DRY/FAN modes.
- Fan Speed: Press the FAN SPEED button to select auto, high, medium, or low fan speed.
- Timer: Press the TIMER button to set an on or off timer. The indicator light illuminates when the timer is active.
- Sleep Mode: Press the SLEEP button to enter sleep mode, which automatically exits after 8 hours. Not available in FAN or DRY modes.
- Swing: Press the SWING button to activate or deactivate the air louver swing.
- Filter Reset: The FILTER RESET light illuminates after 250 hours of operation, indicating the air filter needs cleaning. Press the button after cleaning to reset the indicator.
Troubleshooting and error codes
| Possible Causes | Solution |
|---|---|
| Air Condition Will Not Operate | |
| The power switch is released. | Switch on the power. |
| Power supply failure. | Wait for the recovery of power supply. |
| The fuse is burnt. | Replace the fuse by professional. |
| It doesn't reach the setting time for starting up. | Wait or reset the original setting. |
| Unit Doesn't Start When Pressing ON/OFF Button | |
| It is not four minutes after switch off. | Wait four minutes. |
| Room temperature is lower than the setting temperature under cooling mode or higher than setting temperature under heating mode. | Reset the setting temperature. |
| The Wind Blowing Out, But The Cooling / Heating Effect Is Bad | |
| Mistakes in temperature setting. | Set a proper temperature, setting temperature should be lower than ambient temperature. |
| The air filter is blocked by dust. | Clean the air filter. |
| The air inlet or outlet of machine is blocked. | Remove the obstruction. |
| Turn the air conditioner on in very hot room. | Allow additional time to remove stored heat from walls, ceiling, floor and furniture. |
| Cooling capacity is insufficient. | Reconfirm the required cooling / heating. capacity with your dealer. |
| The doors or windows are open. | Close the doors and windows. |
| Noise or vibration | |
| The ground is not level or not flat enough. | Place the unit on a flat, level ground if pos-sible. |
