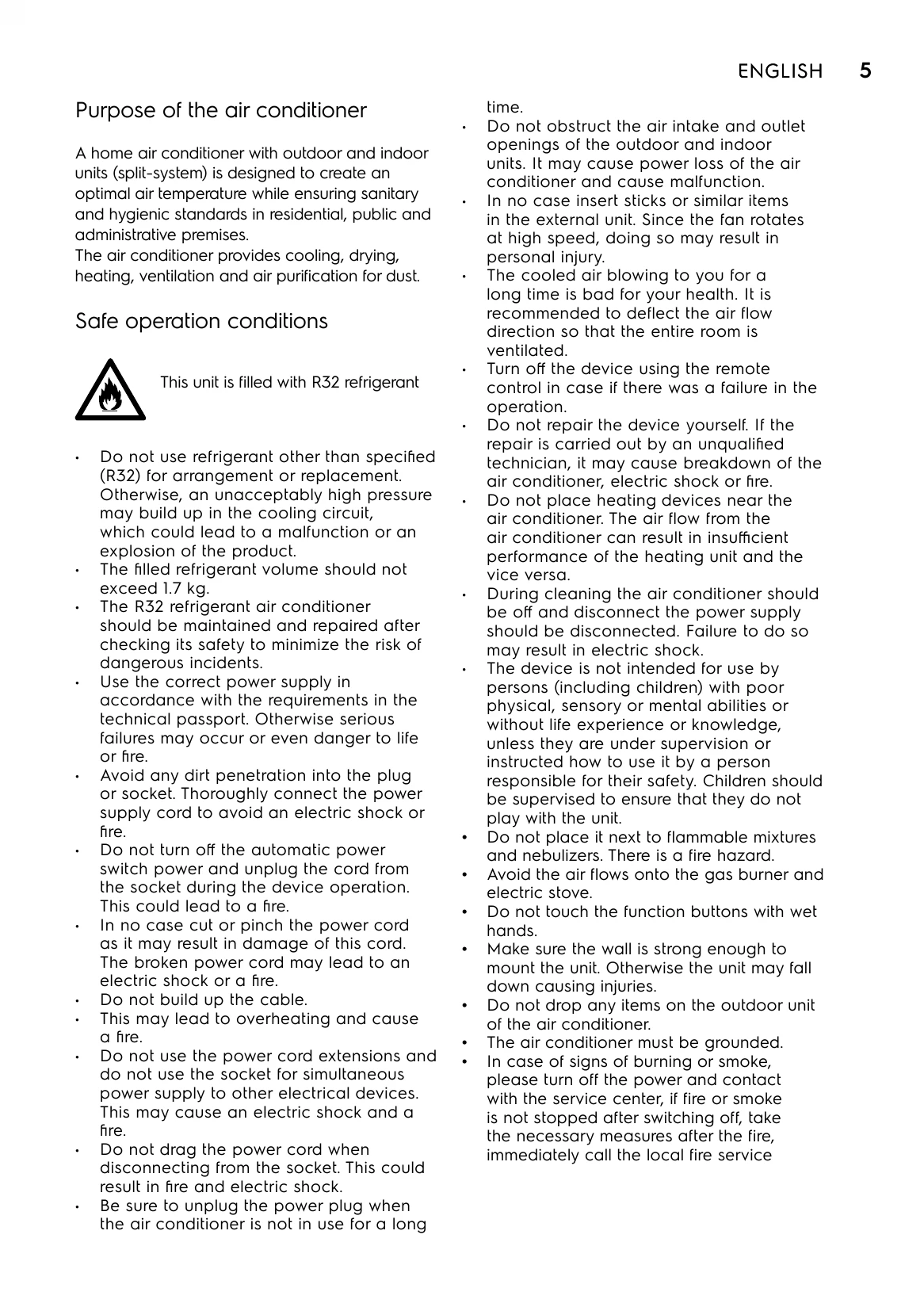

Manual for EACS/I-HF/N8_22Y EEC
Uploaded: Sept. 12, 2025, 4:23 a.m.
Warranty Information
The warranty period for the item is two years from the purchase date for defects in materials and workmanship.
Basic Control Functions:
- ON/OFF: Press the ON/OFF button to turn the device on/off.
- MODE: Select operation mode (AUTO, COOL, DRY, HEAT, FAN).
- Temperature Control (+/-): Increase or decrease the set temperature.
- FAN Speed: Select fan speed (Auto, Quiet, Low, Average, High, Highest).
- MENU: Access submenus for further settings.
- SET: Confirm selections or activate functions.
- SWING: Adjust blind position.
- TURBO: Activate Turbo mode for faster heating/cooling.
- SLEEP Mode: For comfortable sleeping temperature adjustment.
- TIMER: Set ON/OFF timer for automatic operation.
- CLOCK: Set the current time.
- LIGHT: Turn indoor unit display backlight on/off.
- AUTO HEATING 8°C: Maintains a minimum temperature of +8°C.
- AIR CONDITIONING POWER CONTROL: Limits the unit's power.
- ENERGY SAVING MODE: Adjusts settings for optimal energy efficiency.
Troubleshooting and error codes
| Mode | Reason |
|---|---|
| HEATING | If the outside temperature is higher 24°C If the outside temperature is lower -15°C If the room temperature is higher 27°C |
| COOLING | If the outside temperature is higher 43°C If the outside temperature is lower -15°C |
| DRYING | If the room temperature is lower 18°C |
