Warranty Information
Limited one-year warranty for functional repairs, covering defective parts and workmanship.
Cool Mode: Select 'Cool' mode, then adjust fan speed (Auto, Hi, Med, Lo) and temperature using '+' and '-' buttons.
Dry Mode: Select 'Dry' mode. The fan speed is automatically set to 'Low' and cannot be changed. Condensate drainage is required.
Fan Mode: Select 'Fan' mode to circulate air without cooling. Fan speed can be set to Hi, Med, or Low. Exhaust hose is not needed.
Auto Mode: The unit automatically selects cooling or fan-only operation based on the set temperature and room temperature.
Sleep Mode: In Cool or Auto mode, press 'Sleep' for energy-saving operation. The temperature will gradually increase.
Louver Swing: Press 'Swing' to activate oscillating louvers for better air distribution.
Filter Reset: After cleaning the filter, press 'Filter Reset' to turn off the filter indicator.
Child Lock: Press and hold 'Swing' and 'Sleep' for 3 seconds to activate/deactivate Child Lock mode.
Troubleshooting and error codes
| OCCURRENCE | SOLUTION |
|---|---|
| Air conditioner will not operate. | Wall plug disconnected. Push plug firmly into wall outlet. Plug Current Device Tripped. Press the RESET button. House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker. Control is OFF. Turn Control ON and set to desired setting. P1 appears in the display window. Drain water as described in Drainage Section. |
| Air from unit does not feel cold enough. | Shut off in heat mode. When the air outlet exceeds 158 °F (70 °C), the automatic heat protection engages. Remove any blockages and let appliance cool down. Room Temperature lower than the set temperature (Cool Mode). Reset the temperature. Room Temperature higher than the set temperature (Heat Mode). Reset the temperature. Room temperature below 60 °F (16°C). Cooling may not occur until room temperature rises above 60 °F (16 °C). Reset to a lower temperature. Compressor shut-off by changing modes. Wait approximately 4 minutes and listen for compressor to restart when set in the Cool mode. |
| Air conditioner cooling, but room is too warm - ice forming on cooling coil behind decorative front | Outdoor temperature below 60 °F (16°C). To defrost the coil, set Fan only mode. Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to Fan only mode. Temperature is set too low for night-time cooling. To defrost the coil, set to Fan only mode. Then, set temperature to a higher setting. |

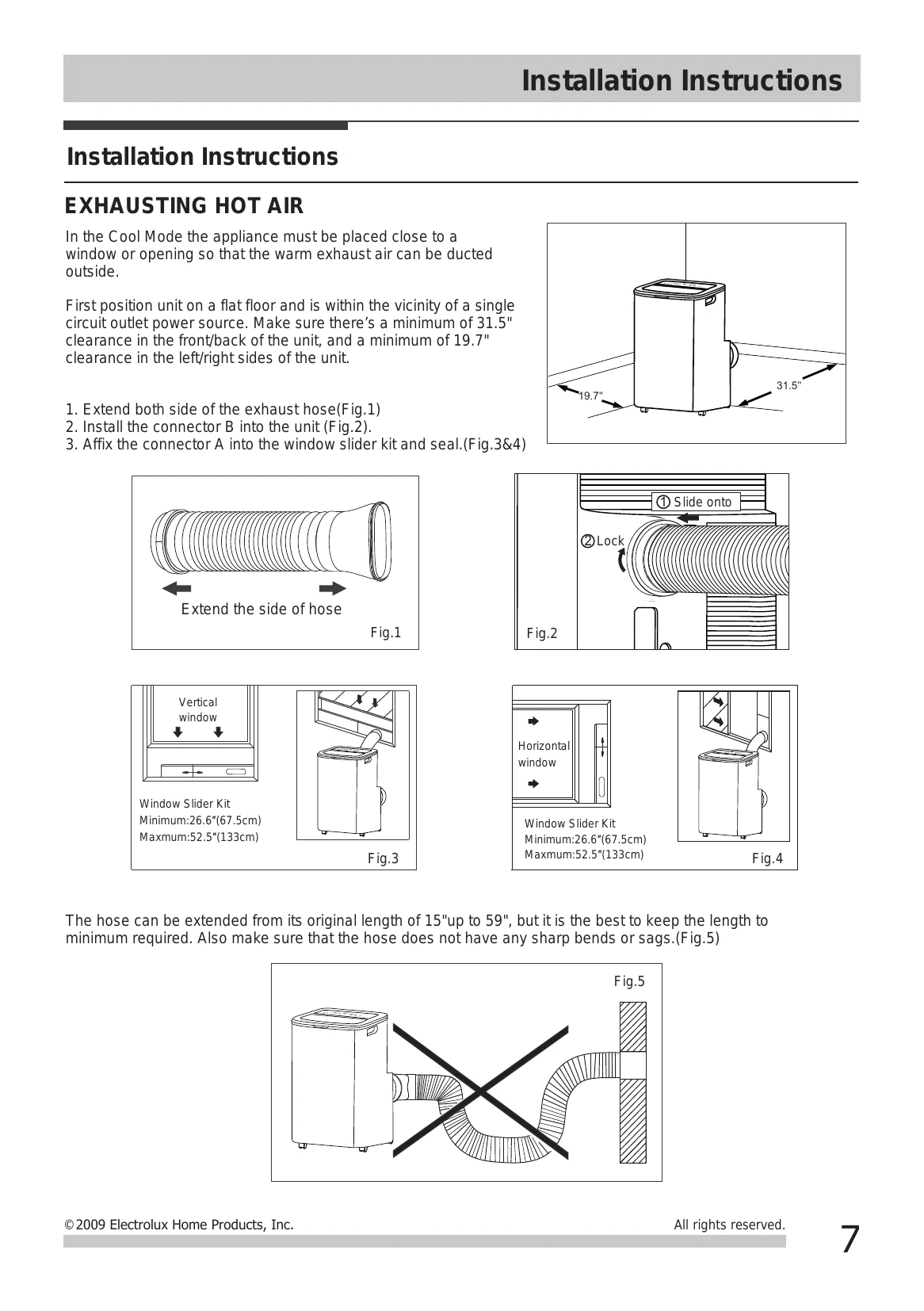

| Air conditioner cooling, but room is too warm - NO ice forming on cooling coil behind decorative front. | Exhaust duct not connected or blocked. See EXHAUSTING HOT AIR Section. |
| Air conditioner turns on and off rapidly. | Dirty air filter - air restricted. Clean air filter. Refer to Care and Cleaning section. Temperature is set too high. Set temperature to a lower setting. Air directional louvers positioned improperly. Position louvers for better air distribution. Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in front of unit. Doors, windows, registers, etc. open cool air escapes. Close doors, windows, registers, etc. Unit recently turned on in hot room. Allow additional time to remove "stored heat" from walls, ceiling, floor and furniture. |
| Noise when unit is cooling. | Dirty air filter - air restricted. Clean air filter. Outside temperature extremely hot. Set Fan speed to a faster setting to bring air through cooling coils more frequently. Air movement sound. This is normal. If too loud, set to lower Fan setting. Vibration from uneven floor. Move or support appliance correctly on even surface. |
| Room too cold. | Set temperature too low. Increase set temperature. |
| Room too hot. | Set temperature too high. Lower setting. |
