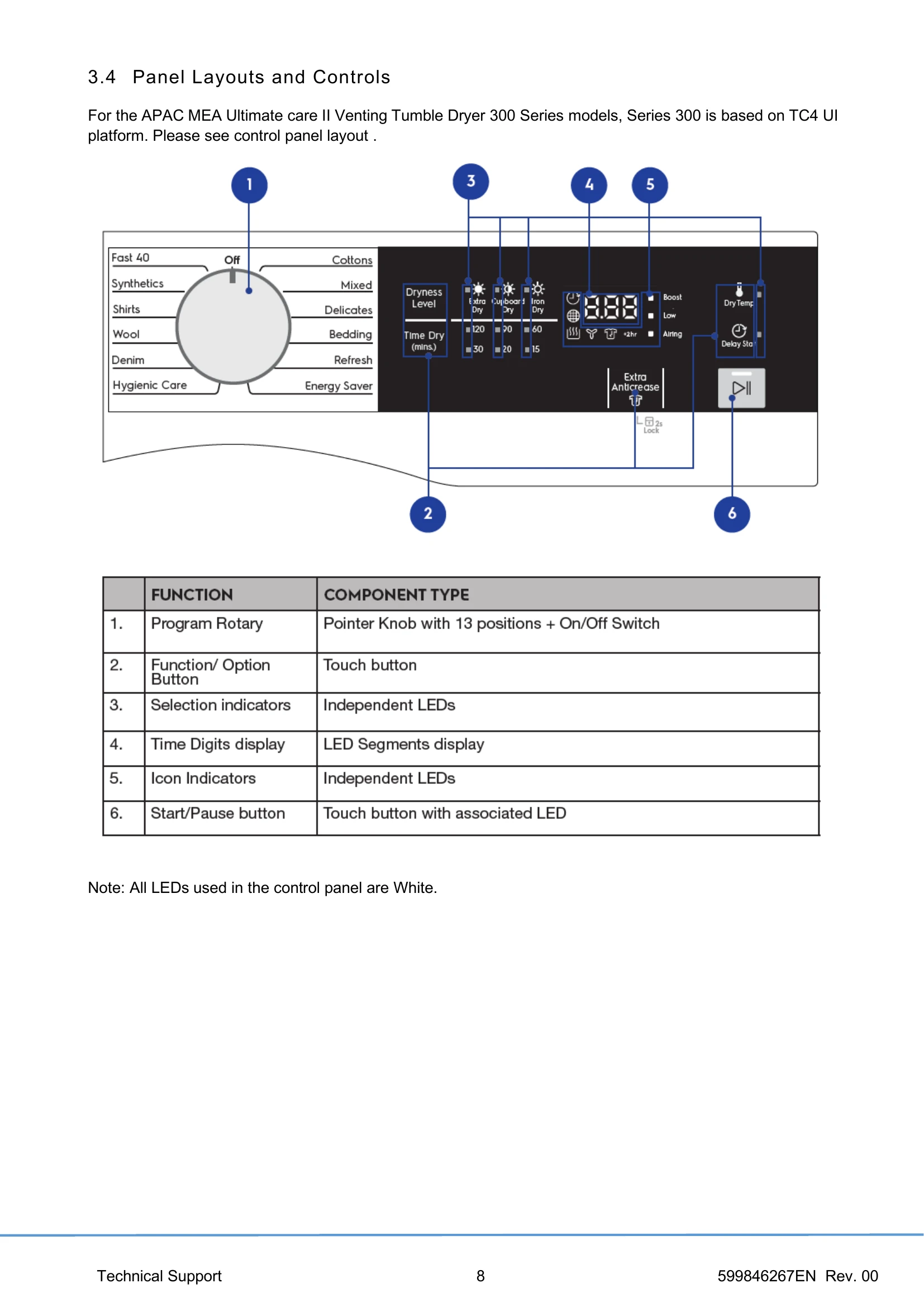

- Power On: Upon powering on, the UI displays a welcome animation with sound. The selected program's cycle time is then shown.
- Program Selection: Use the rotary knob to select one of the 12 drying cycles.
- Dryness Level: Tap buttons to select Extra Dry, Dry (Cupboard dry), or Damp (Iron dry).
- Dry Time: Press the Time Dry button to select the drying time (minutes).
- Dry Temp: Tap Dry Temp buttons to adjust the temperature (Boost, Low, Airing).
- Extra Anticrease: Tap the Extra Anticrease button to add an additional 2 hours of anticrease.
- Child Lock: Press and hold the Extra Anticrease button for 2 seconds to activate. Press and hold the Dry Mode button for 2 seconds to deactivate.
- Delay Start: Tap the Delay Start button to set a delayed start time for the cycle.
- Start Cycle: Press the Start/Pause button to begin the drying cycle.
- Pause Cycle: Pressing Start/Pause during a cycle pauses the appliance. Options can be changed, but not the program.
- Cycle End: When completed, the display shows "End". The Anticrease phase starts.
- Lint Alert: An icon appears after each cycle to remind the user to clean the lint filter.
Troubleshooting and error codes
| Code | Alarm Description | Fault Condition | Possible Fault | Machine Action/Status | Reset Key |
|---|---|---|---|---|---|
| E41 | Door opened | Door opened while the machine executing the cycle | Door opened while running the cycle | Cycle paused | Close the door |
| E45 | Door close sensing fault | The door closed sensing circuit damaged. | Door switch defective | Cycle blocked | OFF/ON |
| E51 | Drum Motor Short Circuit Alarm | the motor is running without command by the cycle execute | Motor relay is short circuit or a high level of electromagnetic noise or motor fault | Cycle blocked | OFF/ON |
| E52 | Drum Motor Alarm | While motor is running by cycle execute, this alarm is set because of line safe relay closed, motor sensing detects voltage on motor | Motor short circuit to ground (motor or wiring), electrical noise, line safe relay problem (main board failure), motor relay open or short, or motor connection loose | Cycle blocked | OFF/ON |
| E62 | Heater Short Circuit Alarm | The heater is ON without command by the cycle execute | Heater relay is short circuit or a high level of electromagnetic noise or motor fault | Cycle blocked | OFF/ON |
| E63 | Heater Alarm | Line safe relay closed, heater sensing detects voltage on heater | Heater short circuit to ground (heater or wiring), electrical noise, line safe relay problem (main board failure), heater relay open or short, or heater connection loose | Cool cycle | OFF/ON |
| E64 | Heater Sensing Alarm | The waveform of the sensing signal is abnormal | Heater fault or a high level of electromagnetic noise or power supply noise | Cycle blocked | OFF/ON |
| E71 | Drying NTC Alarm | The NTC reading is out of range | NTC wiring failure, NTC fault or NTC reading circuit failure, NTC sensor is in open circuit or in short circuit | Cycle blocked | OFF/ON |
| E83 | Wrong selector reading | Selector position code value not supported by the configuration data | Wrong configuration data on microprocessor | Reset cycle | OFF/ON |
| E91 | UI-MB Communication error | Communication problem between UI and MB | Main board defective | OFF/ON | OFF/ON |
| E92 | UI-MB protocol Incongruence error | Protocol communication between UI and MB not compatible | Main board incompatible with user interface board | Cycle blocked | OFF/ON |
| E93 | Machine configuration error | Incorrect configuration of appliance | Incorrect configuration data | Cycle blocked | OFF/ON |
| E94 | Cycle Configuration error | Incorrect configuration of washing cycles | Incorrect configuration data | Cycle blocked | OFF/ON |
| E97 | Incongruence between selector and cycles configuration | Incongruence between program selector and cycle configuration | Main board defective | Cycle blocked | OFF/ON |
| E9C | User Interface Configuration fault | Configuration wrongly or not received by UI. | Display Board | No actions | OFF/ON |
| E9E | User Interface Touch failure | Touch display not working | Display Board | No actions | OFF/ON |
| EB1 (EH1) | Power supply frequency out of limits | Power supply period lower/higher than configured values | Wrong or disturbed Power Supply line. Wait for nominal power supply conditions | OFF/ON | OFF/ON |
| EB2 (EH2) | Power supply voltage too high | MAIN_V sensing input voltage value greater than configured value | Wrong or disturbed Power Supply line. Wait for nominal power supply conditions | OFF/ON | OFF/ON |
| EB3 (EH3) | Power supply voltage too low | MAIN_V sensing input voltage value lower than configured value | Wrong or disturbed Power Supply line. Wait for nominal power supply conditions | OFF/ON | OFF/ON |
| EBD (EHD) | Safety relay short circuit | Safety relay damage. | Main board defective | Cycle blocked | OFF/ON |
| EBE (EHE) | Safety relay fault | Safety relay damage. | Main board defective | Cycle blocked | OFF/ON |
| EBF (EHF) | Safety relay sensing fault | LINE_SAFE sensing input voltage value out of range | Main board defective | Cycle blocked | OFF/ON |
| EF6 | Safety reset | MB microcontroller damaged | Main Board defective | No actions to be performed. If still present replace the Main Board | OFF/ON |
| EC7 | Mist valve triac alarm | The mist valve is ON without command by the cycle execute or line safe relay closed, triac sensing detects voltage on valve | Triac short circuit to ground (valve or wiring), electrical noise, line safe relay problem (main board failure), triac open or short, or valve connection loose or valve fault | No actions | OFF/ON |
| EC9 | Mist valve triac sensing alarm | The waveform of the sensing signal is abnormal | The valve fault or a high level of electromagnetic noise or power supply noise | No actions | OFF/ON |
