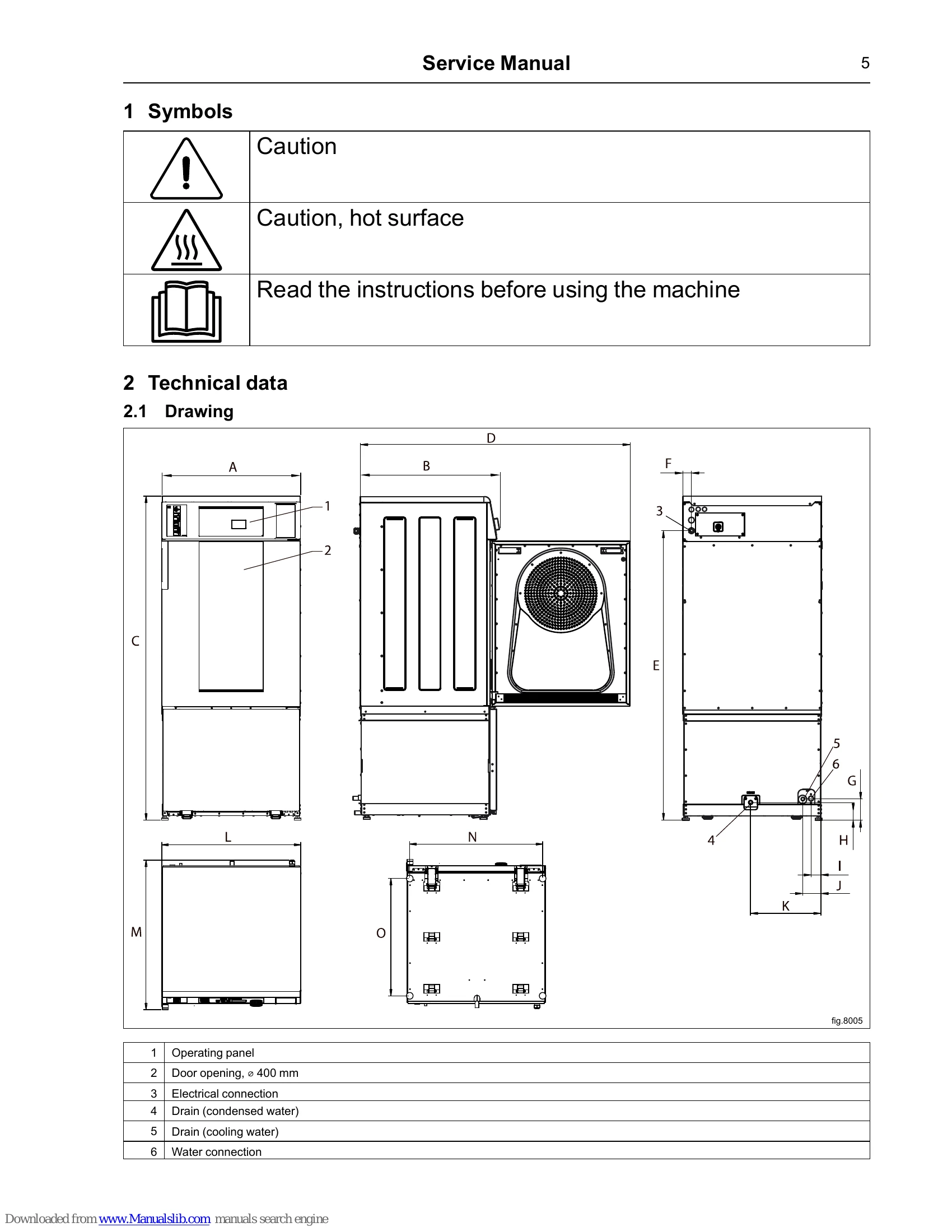

This service manual provides detailed information for the Electrolux T5190LE tumble dryer. It covers technical data, machine presentation, function checks, and detailed procedures for maintenance and repair of various components including sensors, door mechanisms, motor, heat pump unit, drum, control panel, and I/O modules. It also includes troubleshooting guides with error code descriptions and recommended actions, as well as maintenance procedures for cleaning and upkeep of the machine.
Troubleshooting and error codes
| Error Code | Description | Possible Causes | Recommended Actions |
|---|---|---|---|
| 40:22 | I/O BOARD MISHMASH | Wrong Type of I/O unit fitted; Incorrect addressing of I/O units. | 1. Readdress all I/O units. 2. Use electric schematic to find correct I/O board. 3. Use Common Service Tool for I/O addressing. |
| 41:1 | CHARGE CIRCUIT (Internal Com. I/O Type 10) | Overloads and/or defective components in the DLCU on I/O board type 10. | 1. Check for overloads. 2. Replace defective components. |
| 41:2 | SET SIGNAL NO TACHO. WAIT 5 MINUTES (Internal Com. I/O Type 10) | Open or shorted circuit to tacho sensor; Damaged tacho sensor or magnet; Secondary fault in motor system. | 1. Check motor running. 2. Check voltage from tachometer output. 3. Check rotation detection in DLCU status. |
| 41:3 | ACTUATOR CIRCUIT (Internal Com. I/O Type 10) | Open circuit to door lock solenoid; Error or open circuit in I/O board 10 circuits. | 1. Check resistance in door lock solenoid circuit (approx. 6 Ω). 2. Check error "AC" in DLCU status. |
| 41:21 | CHARGE CIRCUIT (Internal Com. I/O Type 10) - Pocket washer | Overloads and/or defective components in the DLCU on I/O board type 10. | 1. Check for overloads. 2. Replace defective components. |
| 41:22 | SET SIGNAL NO TACHO. WAIT 5 MINUTES (Internal Com. I/O Type 10) - Pocket washer | Open or shorted circuit to tacho sensor; Damaged tacho sensor or magnet; Secondary fault in motor system. | 1. Check motor running. 2. Check voltage from tachometer output. 3. Check rotation detection in DLCU status. |
| 41:23 | ACTUATOR CIRCUIT (Internal Com. I/O Type 10) - Pocket washer | Open circuit to door lock solenoid; Error or open circuit in I/O board 10 circuits. | 1. Check resistance in door lock solenoid circuit (approx. 6 Ω). 2. Check error "AC" in DLCU status. |
| 42:1 | I/O TYPE 6 INTERNAL ERROR | Intermittent error in wiring to I/O type 6 unit; Internal error in I/O type 6. | 1. Switch power off for 1 minute and try again. 2. Replace defective part if problem persists. |
| 42:2 | I/O TYPE 6 POSITION TEST | I/O type 6 unit not assembled/fixed in expected position. | 1. Check I/O type 6 unit assembly and fixation. |
| 42:3 | I/O TYPE 6 EXTRACT TEST | I/O unit type 6 not reading values during extraction. | 1. Check I/O type 6 unit assembly and fixation. 2. Perform extraction speed test and check analog input readings. |
| 51:22 | NO CBT COMMUNICATION PRESS TO RETRY (External Com. Payment) | Communication interrupted between CPU and payment system. | 1. Check electrical connections. 2. Check network cables. 3. Verify payment system operation. 4. Check Machine address configuration. 5. Reset CBT communication if needed. |
| 52:1 | CMIS COMMUNICATION ERROR | Communication between machine and CMIS computer interrupted; ELS CST cable unplugged; CMIS interrupted to PC. | 1. Reconnect ELS CST, enter Process viewer and reset communication. 2. Check ELS network cable and CMIS application. |
| 52:2 | DMIS COMMUNICATION ERROR | Problem in DMIS communication with external detergent dosing system; External dosing system disconnected/off/broken; Machine address changed. | 1. Check connections to dosing system. 2. Consult supplier for external dosing system. |
| 60:5 | FATAL ERROR INVALID RUNNING MODE (Internal) | Internal error during memory read. | 1. Press control knob/start button to retry. 2. Upload new software if problem persists. |
| 60:11 | FATAL ERROR EXTERNAL FLASH WRITE (Internal) | Internal error during memory read. | 1. Press control knob/start button to retry. 2. Upload new software if problem persists. |
| 60:17 | FATAL ERROR INVALID OPTION (Internal) | Internal error during memory read. | 1. Press control knob/start button to retry. 2. Upload new software if problem persists. |
| 60:18 | FATAL ERROR INVALID MODULE (Internal) | Internal error during memory read. | 1. Press control knob/start button to retry. 2. Upload new software if problem persists. |
| 60:28 | FATAL ERROR INVALID COIN INPUT (Internal) | Internal error during memory read. | 1. Press control knob/start button to retry. 2. Upload new software if problem persists. |
| 60:29 | FATAL ERROR INVALID FONT (Internal) | Internal error during memory read. | 1. Press control knob/start button to retry. 2. Upload new software if problem persists. |
