Brand: Electrolux
Category: Oven
Document Type: Manual
Language: EN
Manual for BS8304021M
Uploaded: Sept. 12, 2025, 4:19 a.m.
Manual Publish Date: 2015-03-01

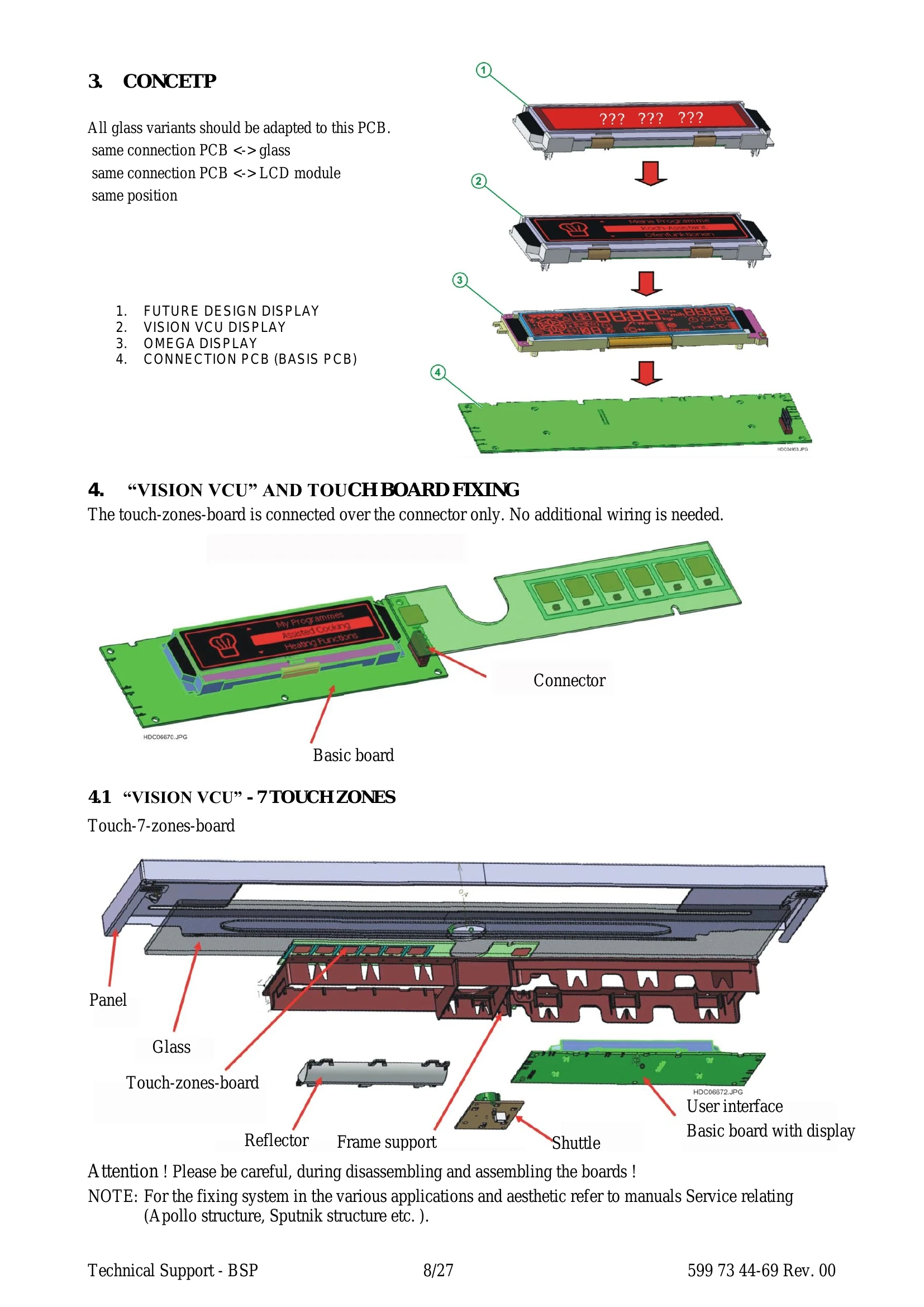

The manual details the operation and service of the Electrolux/AEG VISION VCU interface for ovens and cookers. It covers initial start-up procedures, different display states (OFF, STANDBY, ON), and specific functions like Demo Mode and Service Mode (Factory Test). The operation summary focuses on user interaction with the touch interface, including navigation, setting selection, and function activation. It also describes the initial setup process involving language, display contrast, brightness, and time settings.
Troubleshooting and error codes
| Error Display | Possible Failure | Action to solve |
|---|---|---|
| C1 | Telescopic runner inside during pyrolyse | Remove side grids during pyrolyse |
| C2 | Meat probe inside during pyrolyse | Remove Foodprobe during Pyrolyse |
| C3 | Door open during pyrolyse | Close door during pyrolyse |
| F101 | Doorlock sensor problem | Check wiring, Check doorlock system, Check powerboard |
| F102 | Doorlock failure | Check wiring, Check doorlock system, Check powerboard |
| F104 | Oven temperature sensor (PT500) out of range | Check wiring, Check temperature sensor, Check powerboard |
| F105 | Oven temperature sensor (PT500) has too hightemperature | Check temperature sensor, Check wiring |
| F106 | Electronic temperature sensor out of range | Check Powerboard, Check wiring |
| F109 | Software of user interface and powerboard notfirt together | Check software version and compare with sparepart software |
| F111 | Foodprobe sensor out of range | Check Foodprobe, Check wiring, Check Foodprobe module |
| F112 | steam sensor out of range | Check Powerboard, Check wiring |
| F113 | OVC2000 Ozillator failure | Check Powerboard |
| F130 | Triac failure | Check motors, Check Powerboard |
| F131 | Temperature sensor of steam generator out ofrange | Check wiring, Check temperature sensor, Check powerboard |
| F132 | Software expecting oven with door lock,wrong software programmed | Check programming of UserInterface, Contact quality department |
| F133 | The init or write or read process on the flash failed | Check Powerboard |
| F134 | Reference voltage of the analog digtial converter is out of range | Check Powerboard |
| F135 | Incorrect voltage at door lock relay at oventemperature over 380°C | Check Powerboard |
| F136 | Missing or damaged foodprobe module | Check software version and compare with sparepart software, Check FP module, Check wiring |
| F137 | Missing or incorrect communication between powerboard and Foodprobe module | Check wiring, Check FP module, Check powerboard |
| F138 | Oven temperature sensor is fixed on one resitor value | Check Powerboard, Check temperature sensor |
| F140 | Wrong configured cooking fan | Check software version and compare with sparepart software, Check wiring |
| F142 | Water level sensor (NTC) in steamer out of range. This Fault appears in case the steam generator is overheated because the water refilling to the system is prevented. | Check the Tubes are clogged, Check the Tubes assembly, Check the Descaling actuator is closed, Check the Inlet valve functioning, Check the Ambient temperature where the appliance is placed ( it should not be too low) |
| F143 | Humidity sensor out of range | Check if sensor is powered on in correct way, Check the Wiring |
| F191 | Oven temperature sensor (PT500) out of range (Warning) | Check wiring, Check temperature sensor, Check powerboard |
| F192 | Foodprobe tmeperature value too high | Check wiring, Check foodprobe sensor and/or food probe connection box, Check Foodprobe module |
| F193 | Humidity sensor out of range warning | Check if sensor is powered on in correct way, Check the Wiring |
| F194 | Oven temperature sensor (PT500) out of range (Warning) | Check wiring, Check temperature sensor, Check powerboard |
| F195 | Electronic temperature value too high | Check Powerboard |
| F196 | Electronic temperature value out of range (warning) | Check Powerboard |
| F197 | Water level sensor (NTC) in steamer out of range. | Check the Tubes are clogged, Check the Tubes assembly, Check the Descaling actuator is closed, Check the Inlet valve functioning, Check the Ambient temperature where the appliance is placed ( it should not be too low ) |
| F203 | Programming not correct | Check software version and compare the sparepart softwareCheck User Interface |
| F208 | Configuration does not match to firmware of user interface | Check software version and compare with sparepart software |
| F215 | Unexpected content of configuration | Check software version and compare with sparepart software, Contact quality department |
| F233 | No communication between user interface and touch electronic | Check User Interface |
| F241 | Function selector is not connected | Check wiring, Check oven knob, Check hexagon user interface |
| F321 | Oven temperatur is too high to start Smart function | Check wiring, Check temperature sensor, Check powerboard |
| F322 | Incorrect temperaturevalue between Powerboard and Smart electronic | Check wiring, Check electronic "Smart", Check powerboard |
| F323 | Configuration failure of Smart electronic | Check software version and compare with sparepart software, Check User Interface, Check electronic "Smartboard" |
| F324 | Unknown state of Smart electronic | Check electronic "Smart" |
| F325 | Flash memory failure | Check electronic "Smart" |
| F326 | Calibration of Smart electronic not finished | Check electronic "Smart" |
| F327 | Error in microcontroller of Smart electronic | Check electronic "Smart" |
| F329 | Analog digital converter error of Smart electronic | Check electronic "Smart" |
| F406 | Electronic temperature sensor out of range | Check the Power board, Check the Temperature sensor |
| F408 | Missing communication between powerboard and user interface | Check Wiring, Check the Power board, Check PCIII |
| F439 | No communication between user interface and touch electronic | Unplug and Replug the appliance, Check the interface between UI and the Panel Glass, Check PCIII |
| F493 | Alarm is triggered if there is a fault in the backlight driver module | Unplug and Replug the appliance, Check PCIII |
| F494 | Alarm is triggered if there is a fault in the RTC | Unplug and Replug the appliance, Check PCIII |
| F495 | Alarm is triggered when there is a powerfail in the wiring | Check the mains and power supply, Check Wiring, Check the Power board |
| F497 | Humidity sensor not working or out of range | Check Wiring, Check the Humidity sensor |
| F716 | In oven function pyro the hob is in ON_State | Check software version and compare with sparepart software, check wiring |
| F718 | Missing communication between oven user interface and hob user interface | Check wiring |
| F908 | Missing communication between powerboard and user interface | Check wiring, Check User Interface, Check powerboard |
| F917 | Maximum power limitation problem betwen oven and hob | Check software version and compare with sparepart software, Check wiring, Contact quality department |
| F928 | Missing communication between Smart electronic an d oven user interface | Check wiring, Check electronic "Smart" |
