Parts/Service for DGS-TDS-N
Uploaded: Sept. 12, 2025, 4:30 a.m.
Manual Publish Date: 2009-05-01
Warranty Information
Refer to the relevant sections for warranty information and specific repair procedures.
1. ESD=electrostatic discharge:
- Handle electronic components with care due to potential static discharge.
- Touch the appliance housing to neutralize charging before handling electronics.
- Keep electronics in ESD protective packaging until ready for use.

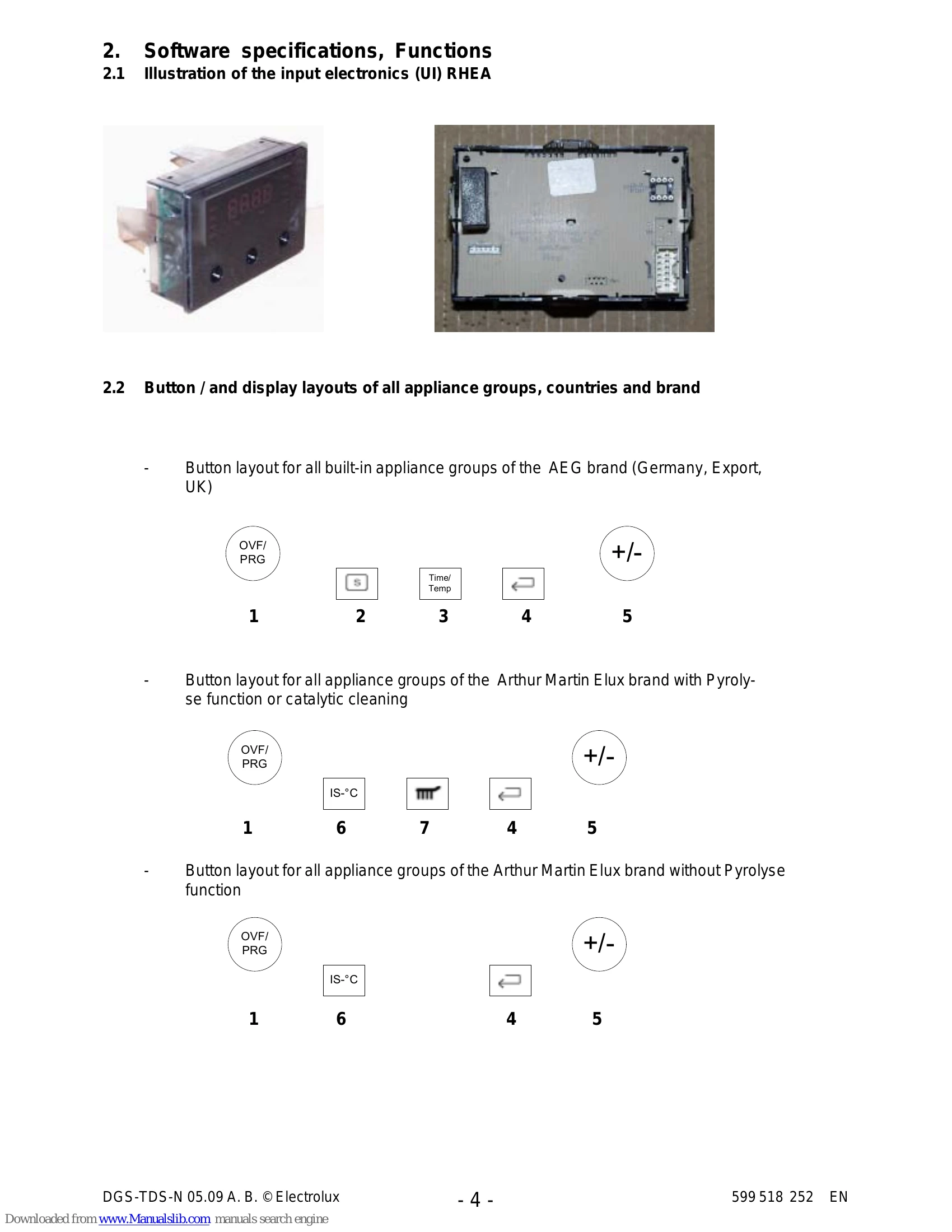

- Familiarize yourself with the input electronics (UI) RHEA and button layouts.
- Understand the main operation features, including clock setting after a network reset and the electronic child-safe function.
- Review oven functions, capacities, and small consumer functions specific to appliance models.
- Understand Pyrolitical cleaning, High-speed heating, and safety cutoff functions.
- Identify and understand the function of various components like input electronics, power electronics, temperature sensors, and door locking systems.
- Familiarize yourself with temperature safety devices, fan after-running, and oven rack protective circuits.
- Use the alarm management tables for fault codes and their corresponding repair procedures.
- Learn how to measure temperature sensors.
- Refer to connection point overviews and example circuit diagrams for troubleshooting and repair.
Troubleshooting and error codes
| Display | Description of fault | Fault repair |
|---|---|---|
| F0 | Internal error | replace power electronics |
| F1 | door cannot be locked | Test door locking system |
| F2 | door cannot be unlocked | Test door locking system and unlocking thermostat f11 |
| F3 | software error | Execute network reset by disconnecting the appliance from the electricity supply and restarting |
| F94 | Temperature sensor alarm - resulting in F4 | Test temperature sensor, replace if necessary |
| F4 | Temperature sensor without contact or short circuit | Test temperature sensor, replace if necessary |
| F5 | Clotted heating element relay contacts on the power electronics | Replace power electronics |
| F95 | Temperature alarm at power electronics - resulting in F6 | Test built-in situation of the ventilation channel and the function of the cooling fan |
| F96 | Temperature alarm at power electronics - resulting in F6 | Test built-in situation of the ventilation channel and the function of the cooling fan |
| F6 | Power electronics temperature too high | Test built-in situation of the ventilation channel and the function of the cooling fan |
| F7 | Faulty electrical connection (only in appliances with Prisma power electronics) | Correctly connect the appliance and re-start |
| F8 | No connection between power electronics and input electronics | Check connection line - replace electronic systems if necessary |
| F9 | Micro processor resets itself independently (= Reset) | Execute network reset by disconnecting the appliance from the electricity supply and restarting |
| F10 | Triac on power electronics defect | Activate Main Button, select an operation modus with hot air, wait for cooling ventilation start, replace power electronics again in the event of an error report following approximately 20 seconds |
| F11 | Meat skewer sensor without contact or short-circuited | Check meat thermometer, also check bushing and wiring if necessary; if all this OK replace power electronics |
| F91 | Temperature sensor alarm for steam generator - resulting in F12 | Test temperature sensor, replace if necessary |
| F12 | Temperature sensor of steam generator without contact or short-circuited | Test temperature sensor, replace if necessary |
| F13 | Internal electronics error | Replace power electronics |
| F14 | software error | Replace input electronics |
| F15 | Internal electronics error | Replace input electronics |
| F16 | Combined alarm Pyrolytic cleaning/cooking zone | Replace input electronics |
