Manual for EW30DS65GB5
Uploaded: Sept. 12, 2025, 4:21 a.m.
Warranty Information
A one-year limited warranty covers defective parts and workmanship, with additional coverage for the glass cooktop.
Finding Information: Locate your model and serial numbers for future reference and customer support.
Safety: Read all safety instructions before use to prevent fire, shock, or injury. Pay attention to warnings regarding tipping, gas leaks, hot surfaces, and proper appliance usage.

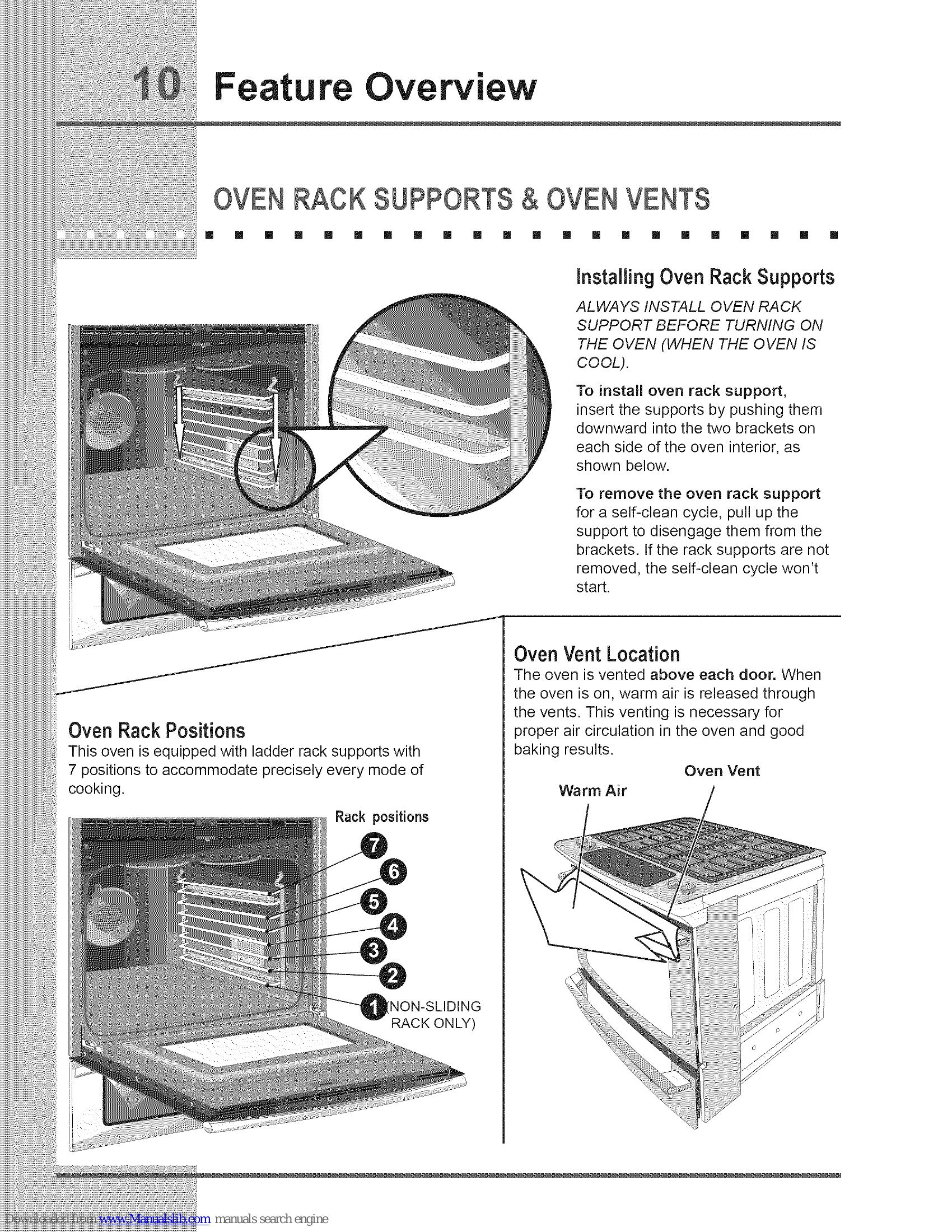

Feature Overview: Familiarize yourself with the components of your slide-in range, including the cooktop, oven, and control panel.
Getting Started: Learn how to set the clock, operate the oven light, use the control lock, and set the kitchen timer.
Surface Cooking: Understand burner locations, proper utensil use, and flame size adjustments for effective cooking.
Setting the Lower Oven: Learn how to operate the lower oven for various cooking modes.
Cooking Modes: Explore various cooking modes like Baking, Cook Time, and End Time, with detailed instructions for upper and lower oven usage.
Oven Controls: Details on using the Sabbath Feature and other oven controls.
Care & Cleaning: Instructions for cleaning different parts of the appliance, including self-cleaning cycles and stainless steel care.
Troubleshooting and error codes
| Baking Problems | Causes | Solutions |
|---|---|---|
| Cookies and biscuits burn on the bottom. | Cookies and biscuits put into the oven before the preheating time is completed. Oven rack overcrowded or rack position too low. Dark pan absorbs heat too fast. |
Allow oven to preheat to the selected temperature before placing food in oven. Choose pan sizes that will permit 5.1cm to 10.2cm (2" to 4") of air space on all sides when placed in the oven. Use a medium-weight aluminum baking sheet. |
| Cakes too dark on top or bottom. | Cakes put into the oven before preheating time is completed. Rack position too high or low. Oven too hot. |
Allow oven to preheat to the selected temperature before placing food in the oven. Use proper rack position for baking needs. Set oven temperature 25°F/12°C lower than recommended. |
| Cakes not done in the center. | Oven too hot. Incorrect pan size. Pan not centered in oven. |
Set oven temperature 25°F/12°C lower than recommended. Use pan size suggested in recipe. Use proper rack position and place pan so there is 5.1cm to 10.2cm (2" to 4") of space on all sides of pan. |
| Cakes not level. | Range not level. Pan too close to oven wall or rack overcrowded. Pan warped. |
Place a marked glass measuring cup filled with water on the center of the oven rack. If the water level is uneven, refer to the installation instructions for leveling the range. Be sure to allow 5.1cm to 10.2cm (2" to 4") of clearance on all sides of each pan in the oven. Do not use pans that are dented or warped. |
| Foods not done when cooking time is up. | Oven too cool. Oven overcrowded. Oven door opened too frequently. |
Set oven temperature 25°F/12°C higher than suggested and bake for the recommended time. Be sure to remove all pans from the oven except the ones to be used for baking. Open oven door only after shortest recommended baking time. |
