Manual for Compass Pro
Uploaded: Nov. 21, 2025, 6:23 p.m.
Manual Publish Date: 2016-11-07

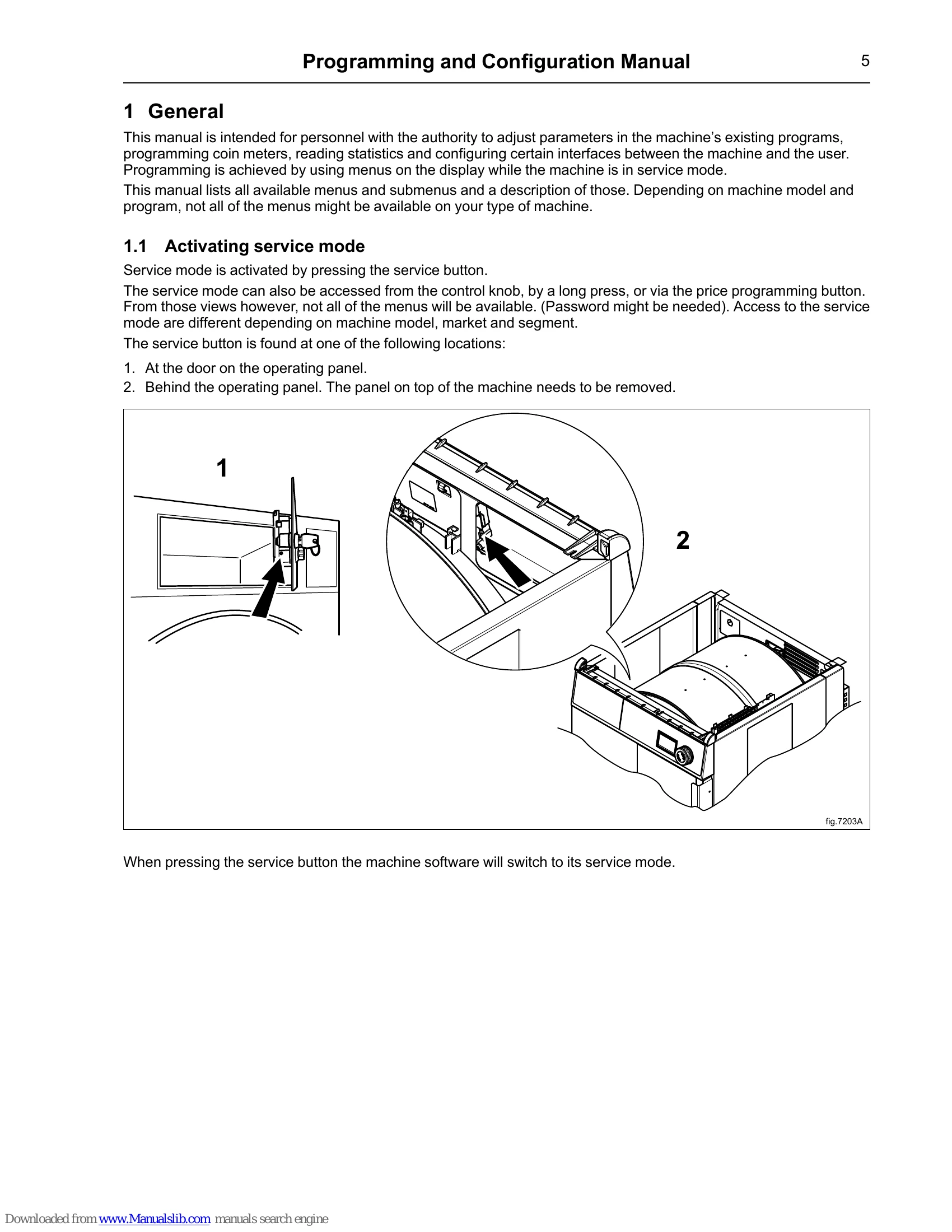

This manual provides detailed information on programming and configuration for the Electrolux Compass Pro tumble dryer. It is intended for personnel authorized to adjust machine parameters, coin meters, read statistics, and configure user interfaces. Programming is done via display menus when the machine is in service mode. The manual covers various sections including General Information, Service Menu, Function Test, Configuration (language, time/date, user interface, passwords, I/O, various settings), Price Programming, Statistics, Program Parameters, System Information, and Default Language settings. It explains how to activate service mode, navigate menus, and set specific parameters for machine operation and user interaction.
Troubleshooting and error codes
| Error code | bit 7 | bit 6 | bit 5 | bit 4 | bit 3 | bit 2 | bit 1 | bit 0 | Explanation |
|---|---|---|---|---|---|---|---|---|---|
| 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | No error |
| 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 1. High temperature FC |
| 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 2. High temperature motor |
| 0 | 0 | 0 | 0 | 0 | 0 | 1 | 1 | 0 | 3. Drive request but no interlock signal present |
| 0 | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 4. Communication error |
| 0 | 0 | 0 | 0 | 0 | 1 | 0 | 1 | 0 | 5. Short-circuit |
| 0 | 0 | 0 | 0 | 0 | 1 | 1 | 0 | 0 | 6. Error in interlock-circuits on FC |
| 0 | 0 | 0 | 0 | 0 | 1 | 1 | 1 | 0 | 7. Under voltage on DC-bus |
| 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 8. Over voltage on DC-bus |
| 1 | 1 | 1 | 1 | 1 | 0 | 0 | 0 | 0 | F. Motor not following |
