Warranty Information

24-month warranty for manufacturing defects for domestic use in Australia and New Zealand.

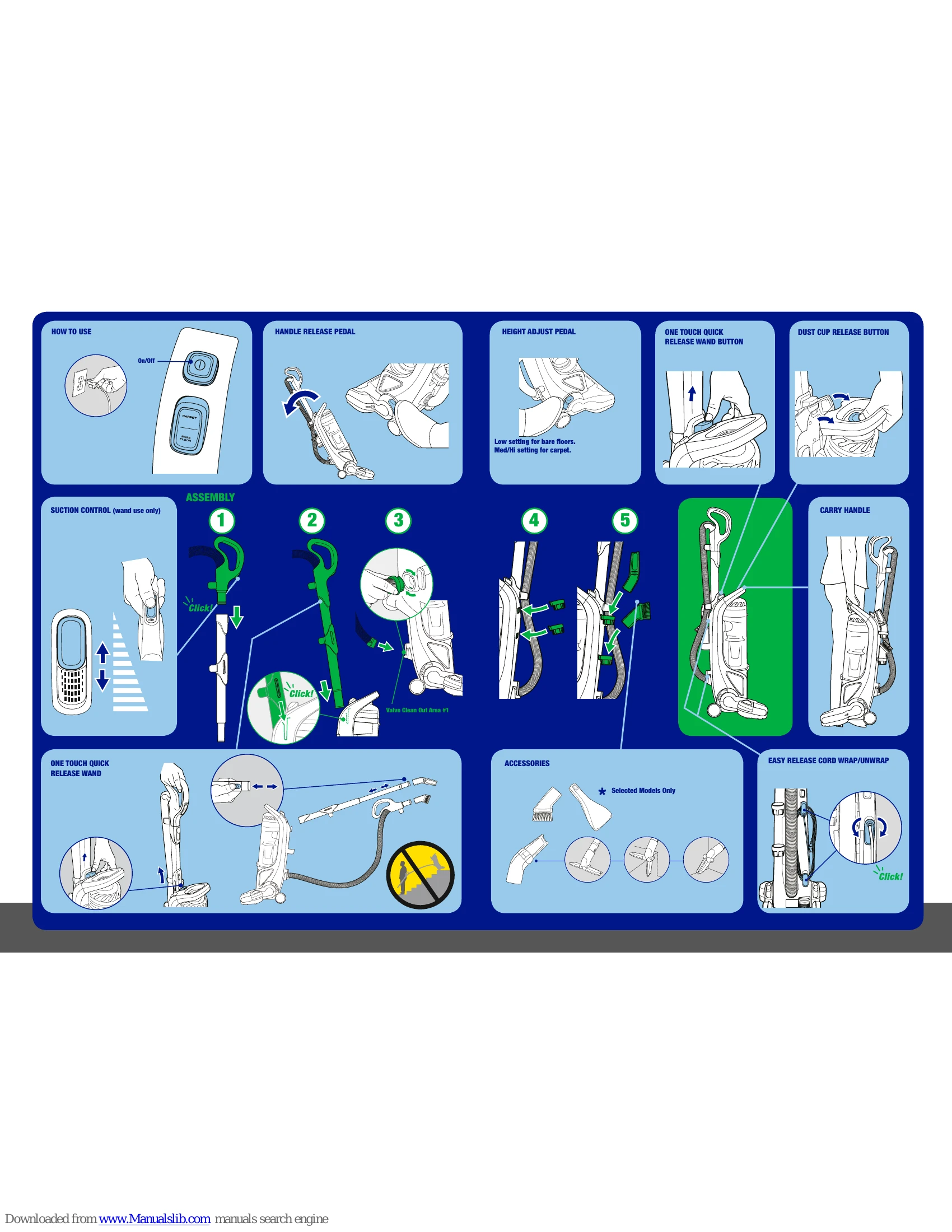

  • On/Off Switch: Located on the main unit for powering the vacuum on and off.
  • Handle Release Pedal: Press to recline the handle for use and upright storage.
  • Height Adjust Pedal: Adjusts the vacuum head height for different floor types (low for bare floors, med/hi for carpet).
  • One Touch Quick Release Wand Button: Press to detach the wand for handheld cleaning or accessory use.
  • Dust Cup Release Button: Press to release and empty the dust cup.
  • Suction Control: Located on the wand for adjusting suction power, especially useful with accessories.
  • Easy Release Cord Wrap: For convenient storage of the power cord.
  • Accessories: Various attachments can be connected to the wand or hose for specific cleaning tasks.
  • Brushroll Clean Technology™: Used for removing stubborn debris from the brushroll.
  • HEPA Filter: Washable filter to maintain air quality.
  • Maintenance: Regular cleaning of the dust cup, filters, and brushroll is recommended.

Troubleshooting and error codes

PROBLEM POSSIBLE CAUSES SOLUTION
Motor will not start or suddenly stops Unit not connected to power source
  • Press power switch to 'carpet' or 'bare floor' setting
  • Check plug and cord for damage
  • Try another outlet or check circuit breaker
Switch not turned on
Thermal cut-off has operated Correct the cause of motor overheating. See thermal cut-off information
No suction. Vacuum cleaner does not pick up lint or dirt Blockage in air path Remove any obstructions that restrict airflow through hose and valve clean out areas #1 & #2
Dust cup full Empty dust cup
Dust Cup Filter clogged Remove and clean filter. Fine dust can block the airflow through the filter and reduce suction even if dust cup does not look full
Hepa Filter clogged Remove and clean filter
Dust Cup Filter not in place Filter must be in filter frame for correct performance
No suction on the handle Switch not on proper setting
  • Use 'carpet' setting for carpetted floors
  • Use 'bare floor' setting for hard-surfaced floors and when using accessories
* Turbo nozzle clogged (selected models only) Remove and clean debris from turbo nozzle
Dust cup will not lock into vacuum cleaner Dust Cup Filter not in place Locate dust cup filter and insert into dust cup
Quick Release handle will not lock into vacuum cleaner Telescopic wand is extended Place end of wand into opening at back of vacuum and align ribs into grooves
Red "check brush roll" indicator light is on Object caught in brush roll Unplug vacuum, remove debris and threads from brush roll. Depress brush roll reset button, plug in unit, and continue.
Brush roll not positioned properly Use 'bare floor' setting when vacuuming fringe of rugs
Brush roll not operating properly Check brush roll for threads and debris. Clean if needed • Make sure both ends of brush roll are free of debris and secured properly so roll can rotate freely
Brushroll Clean™ will not work when pedal is engaged Using brushroll clean pedal on high pile rug/carpet Move unit to bare floor, push reset button. Operate normally
Do not use Brush Roll Clean™ for one minute. Feature should then return to normal function
Brushroll will not turn - Note: "Check brush roll" indicator light turns on when brush roll is not turning. Brush roll motor will shut off to prevent damage to motor. If used for more than 20 seconds consecutively or concurrently within a short period, ShearClean will need approximately 1 minute to reset
