Brand: Electrolux
Category: Washing Machine
Document Type: Manual
Language: EN
Manual for W565H
Uploaded: Sept. 12, 2025, 4:26 a.m.
Manual Publish Date: 2013-02-21
3 Handling
3.1 Load
Load the goods into the machine according to recommendations and close the door.3.2 Detergent

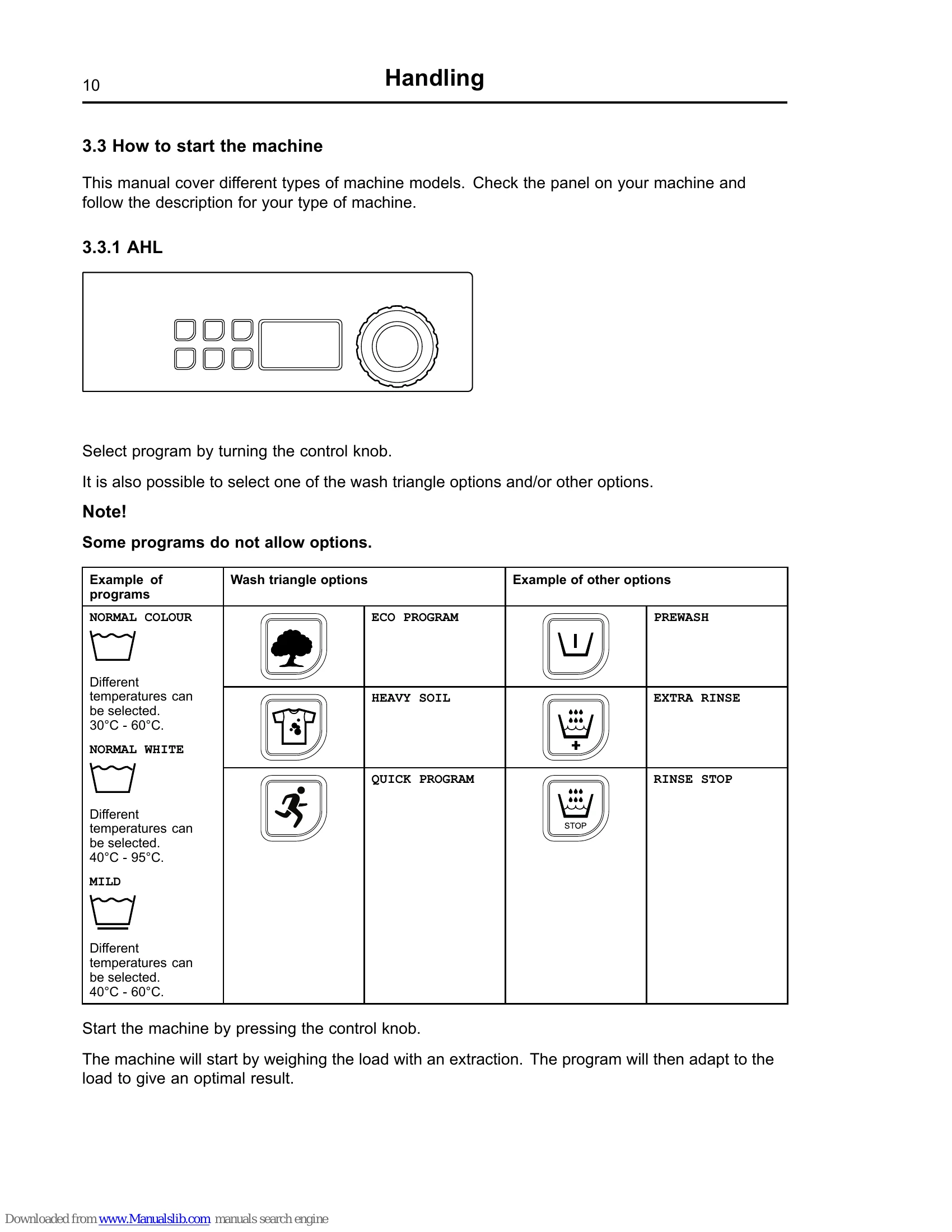

Add the correct amount of detergent and softener according to recommendations.3.3 How to start the machine
Select program by turning the control knob. Select options if available. Start the machine by pressing the control knob. The machine will weigh the load and adapt the program.3.4 Additional functions
Access additional functions via the menu after start, using the control knob and temperature buttons. Functions may include Stop, Pause, Changing program after start, Rapid advance, End a program, Delayed start, Status, Statistics, and Auto restarts.3.5 When program has ended
Leave the door open to prevent moisture build-up, bacteria, and mould.Troubleshooting and error codes
| Error code | Text | Cause/Action |
|---|---|---|
| 11:1 | NO WATER | Water level acknowledgement not reached in time. Check that the water taps are open. |
| 11:2 | DOOR OPEN | Door position acknowledgement not received during program. Open and close the door. |
| 11:3 | DOOR LOCK FAIL | Door position acknowledgement not received in time. Open and close the door. |
| 11:10 | DRUM NOT DRAINED | Water level above established level after drain. Check that the drain is not blocked. Try to restart the machine. |
