Manual for DM-D110 / DM-D210

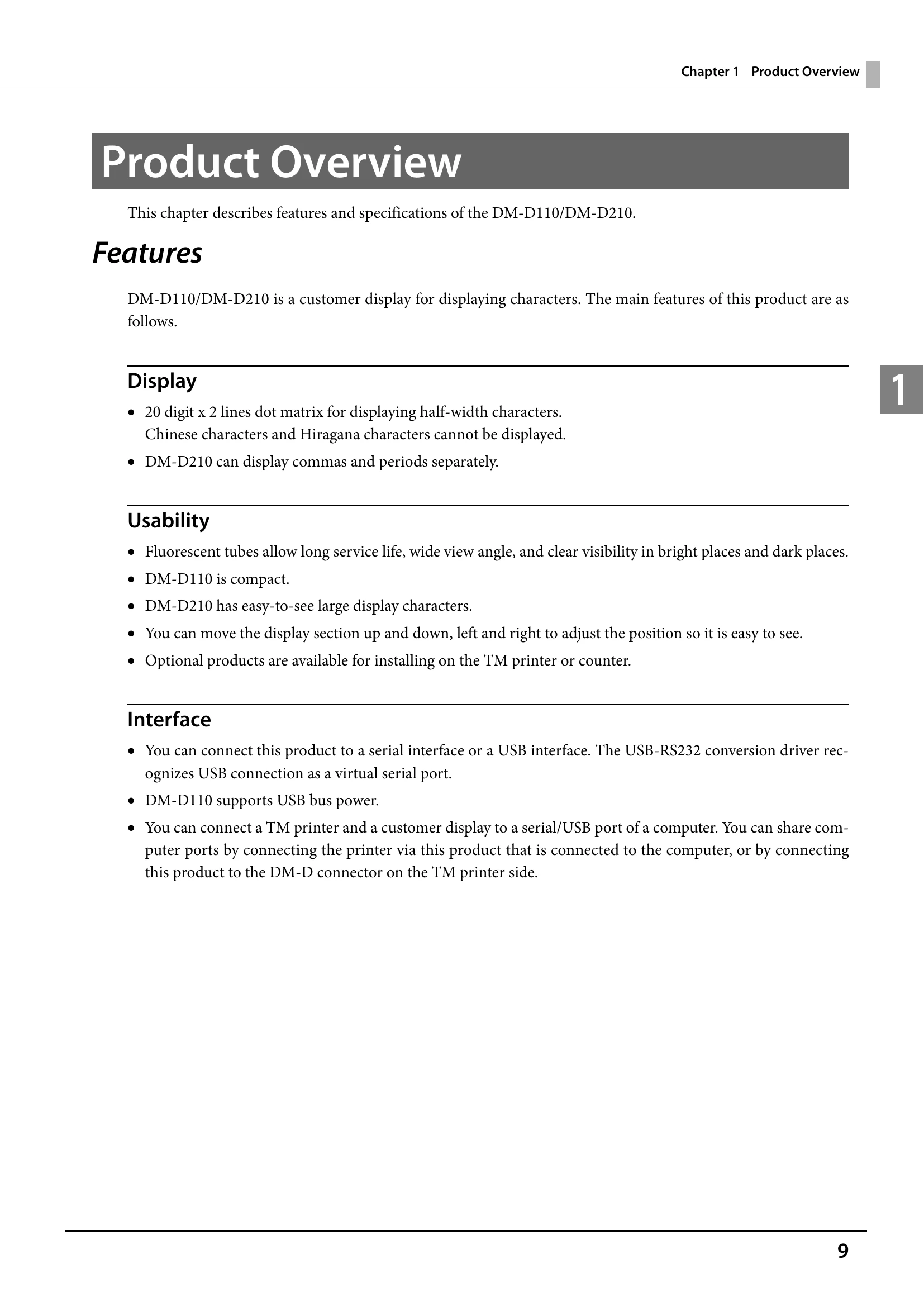

Product Overview

This chapter describes features and specifications of the DM-D110/DM-D210.

Features

DM-D110/DM-D210 is a customer display for displaying characters. The main features of this product are as follows.

Display

• 20 digit x 2 lines dot matrix for displaying half-width characters.
• Chinese characters and Hiragana characters cannot be displayed.
• DM-D210 can display commas and periods separately.

Usability

• Fluorescent tubes allow long service life, wide view angle, and clear visibility in bright places and dark places.
• DM-D110 is compact.
• DM-D210 has easy-to-see large display characters.
• You can move the display section up and down, left and right to adjust the position so it is easy to see.
• Optional products are available for installing on the TM printer or counter.

Interface

• You can connect this product to a serial interface or a USB interface. The USB-RS232 conversion driver recognizes USB connection as a virtual serial port.
• DM-D110 supports USB bus power.
• You can connect a TM printer and a customer display to a serial/USB port of a computer. You can share computer ports by connecting the printer via this product that is connected to the computer, or by connecting this product to the DM-D connector on the TM printer side.
