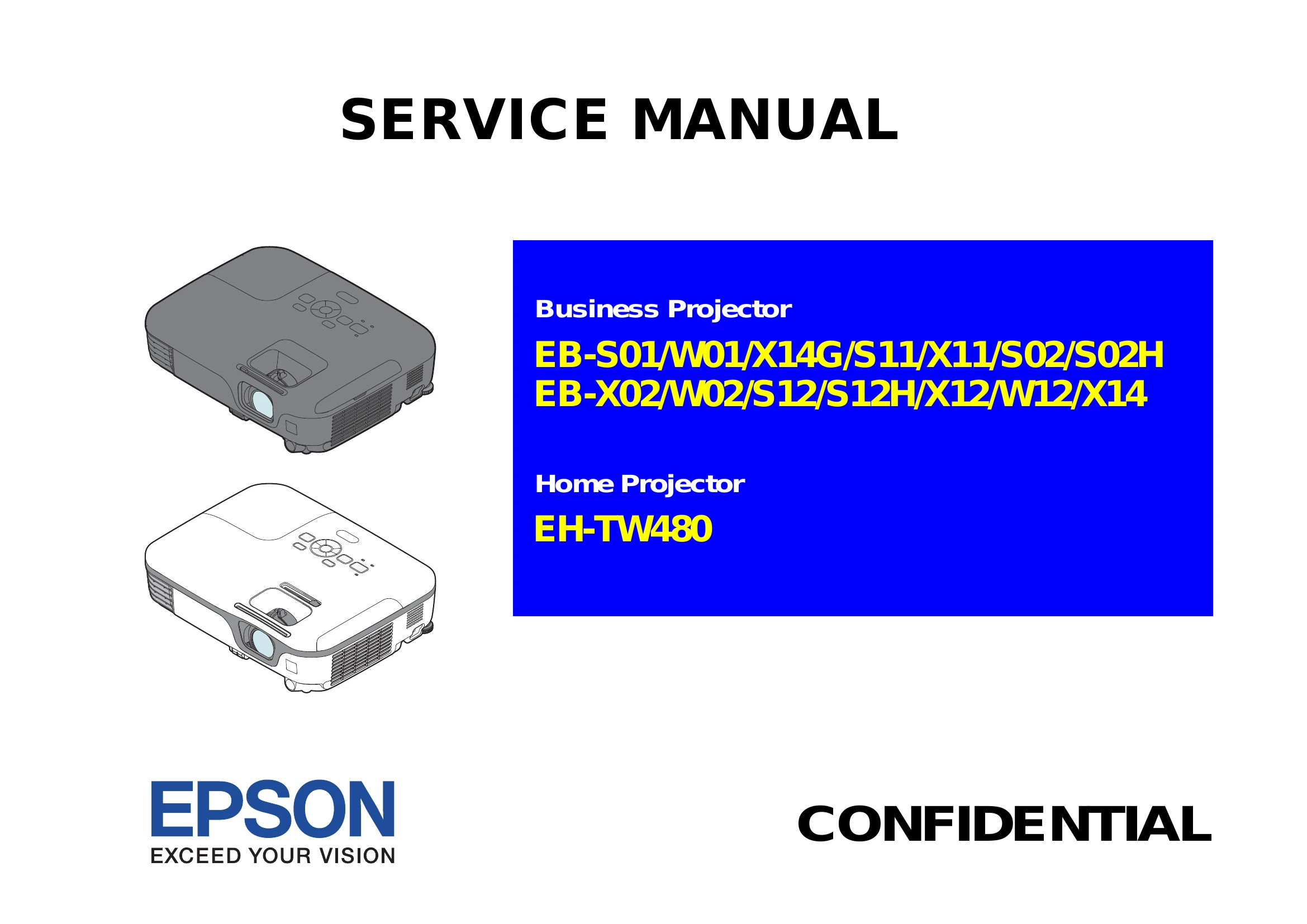

Manual for EB-S01/W01/X14G/S11/X11/S02/S02H/X02/W02/S12/S12H/X12/W12/X14 EH-TW480
Uploaded: Nov. 21, 2025, 7:45 p.m.
Manual Publish Date: 2012-05-28
The manual outlines the troubleshooting procedures for EPSON projectors, starting from error messages to diagnosing problems. It details how to identify troubled parts and carry out necessary repairs or replacements. The troubleshooting workflow begins with a visual check of parts, followed by problem diagnosis based on LED error indications, error codes, performance abnormalities, or image quality issues. It also covers reassembly, operation check, and safety checks after repair or maintenance.
Troubleshooting and error codes
| Problem diagnosis and troubleshooting | |
|---|---|
| If LED error indication is indicated, | See “2.4.2 Troubleshooting based on LED Indications (p31)". |
| If you know the error code | See " 2.4.3 Troubleshooting from the Error Codes (p33)". |
| If abnormality related to the projector's performance is occurring, | See " 2.4.4 Troubleshooting without Error Indications (p38)". |
| If image quality is abnormal, | See " 2.4.5 Troubleshooting on image abnormality (p44)". |
