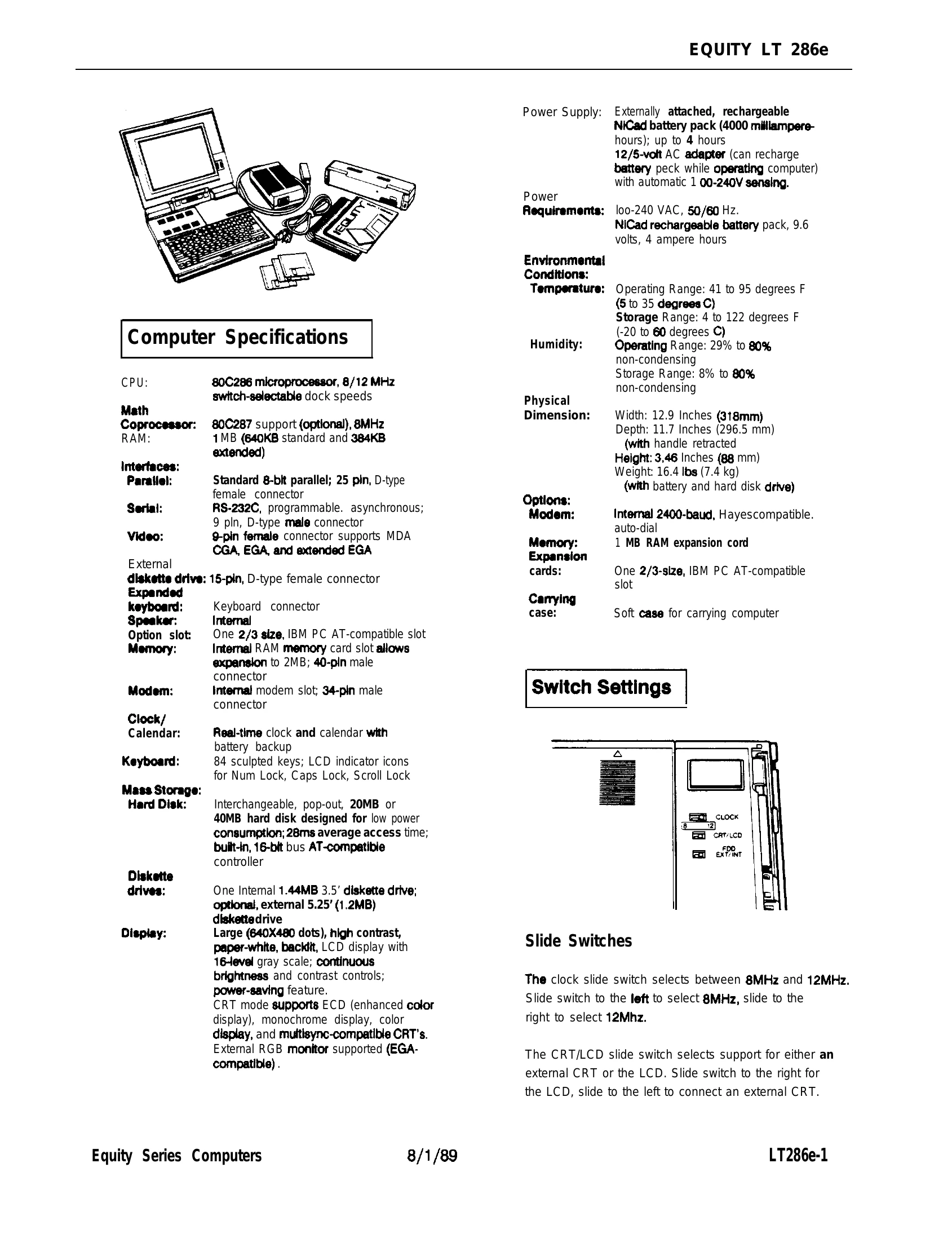

Manual for LT 286e
Uploaded: Nov. 21, 2025, 8:31 p.m.
Manual Publish Date: 1989-08-01
Power Management
- Set backlight period option to the shortest available setting with SETLCD for battery conservation.
- Adjust brightness and contrast controls to comfortable levels.
- Run at 8 MHz for extended battery life.
- Utilize the HDDPSAVE feature to automatically turn off the HDD when not in use.
Battery Care
Periodically discharge the NiCad battery completely to minimize memory effect. After a full discharge, recharge for 8 hours to maintain battery charge life.
Video Settings
When using a monochrome monitor and software requires display type specification, select EGA 640 x 350 MONO.
Mass Storage Handling
Handle removable hard drives carefully to avoid activating the shock indicator.
Software Installation
For copy-protected software, set the CPU speed to 8 MHz during installation to reduce conflicts. The CPU speed can be returned to higher after installation. If software is incompatible, try switching the CPU speed to 8 MHz.
Troubleshooting and error codes
| SW-1 Factory Settings | ||
|---|---|---|
| 1 | 2-6 | 7-10 |
| ON | OFF ON ON OFF OFF ON | DFF (CRT/LCD Configuration) |
| SW-2 Factory Settings | ||
|---|---|---|
| 1-6 | 7-10 | Jumper |
| ON ON OFF ON ON OFF | SEE TABLE | ON OFF ON OFF ON |
| CRT/LCD Configuration Factory Settings | |
|---|---|
| 7, 8, 9, 10 | Function |
| OFF ON OFF OFF | Selects MDA (CRT only) |
| ON OFF OFF ON | selects CGA 40X25 |
| ON OFF OFF OFF | selects CGA 80x25 |
| OFF ON ON ON | Selects EGA normal mode |
| OFF ON ON OFF | Selects EGA enhanced mode |
