Manual for 5HA780X
Uploaded: April 20, 2026, 7:41 p.m.
Manual Publish Date: 2010-03-01
Warranty Information
Refer to your dealer for specific warranty information.
Getting Started
- Safety First: Read all important safety instructions before use.
- Basic Setup: Set the clock, use oven lights.

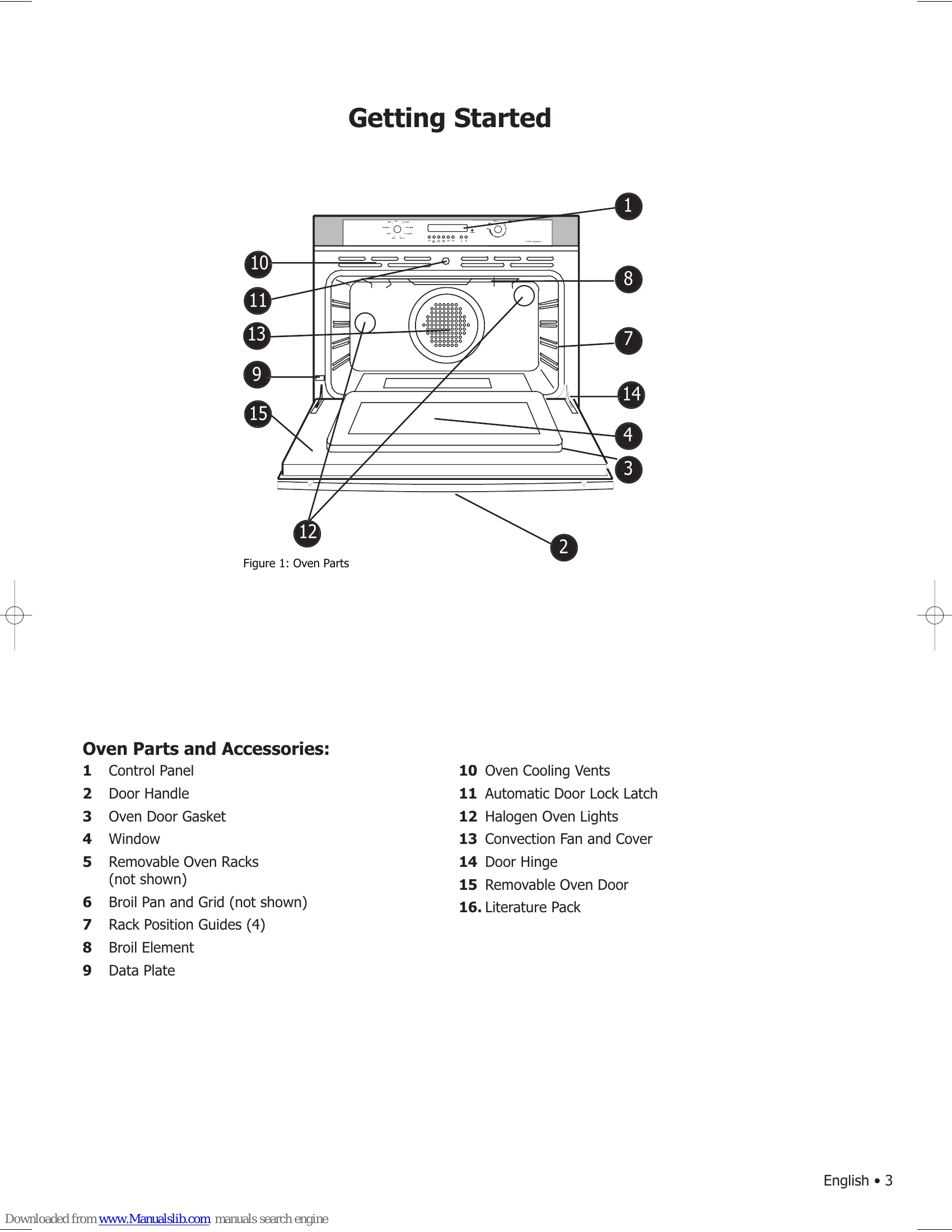

- Oven Components: Familiarize yourself with oven parts and control panel.
General Oven Tips
- Usage: Use cooking charts, keep the door closed, place pans centrally.
- Convection Cooking: Understand its advantages like even baking and energy saving.
- Preheating: Preheat oven for bake and convection bake modes.
- Bakeware: Choose appropriate bakeware for desired results.
Operating the Oven
- Rack Positions: Select the correct rack position for optimal cooking.
- Oven Modes: Explore various modes like Bake, Broil, Convection Bake, Convection Roast, and Dehydrate.
- Setting the Oven: Learn to set cooking modes, timers, and timed cooking.
Care and Maintenance
- Self-Cleaning: Understand the self-cleaning process and safety precautions.
- Cleaning Surfaces: Follow guidelines for cleaning different oven surfaces.
- Replacing Light Bulb: Steps to safely replace the oven light bulb.
- Removing Oven Door: Instructions for safely removing and reinstalling the oven door.
Do-It-Yourself Procedures
- Sabbath Mode: How to activate and use Sabbath mode.
- Clock/Temperature Settings: Change clock format, temperature format, and calibration.
- Operating Voltage: Information on changing operating voltage.
Self Help
- Baking: Troubleshooting common baking problems.
- Operation: Solving common oven operational issues.
Troubleshooting and error codes
| Oven Problem | Problem Solving Steps |
|---|---|
| F03 or F04 Error appear in the display window. | A problem with the lock occured. Turn power off and turn it back on again after a few seconds. The oven should run a latch auto-test. If condition persists, note the code number and call an authorized technician. |
| Other F_ Error appears in the display window. | Turn power off and turn it back on again after a few seconds. If condition persists, note the code number and call an authorized servicer. |
| The oven display stays OFF | Turn off power at the main power supply (fuse or breaker box). Turn breaker back on. If condition persists, call an authorized service center. |
| Cooling fan continues to run after oven is turned off | This is normal. The fan turns off automatically when the electronic components have cooled sufficiently. |
| Oven door is locked and will not release, even after cooling | Turn the oven off at the circuit breaker and wait a few seconds. Turn breaker back on. The oven should reset itself and will be operable. |
| Oven is not heating | Make sure the oven temperature has been selected. Check the circuit breaker or fuse box to your house. Make sure there is proper electrical power to the oven. |
| Oven is not cooking evenly | Check oven calibration. Adjust calibration if necessary (see Oven Offset, Page 17). Refer to cooking charts for recommended rack position. Always reduce recipe temperature by 25°F when baking with convention bake mode. |
| Oven temperature is too hot or too cold | The oven thermostat needs adjustment. See Calibrating Oven Temperature, Page 17. |
| Oven light is not working properly | Replace or reinsert the light bulb if loose or defective. See Page 15. Touching the bulb with fingers may cause the bulb to burn out. |
| Oven light stays on | Oven light comes on automatically when oven begins heating. Press LIGHT to turn oven light off. If oven is off, check for obstruction in oven door or check to see if hinge is bent. |
| Cannot remove lens cover on light | There may be soil build-up around the lens cover. Wipe lens cover area with a clean dry towel prior to attempting to remove the lens cover. |
| Oven will not self-clean properly | Allow the oven to cool before running self-clean. Always wipe out loose soil or heavy spills before running self-clean. If oven is badly soiled, set oven for a four-hour Self-Clean. See Self-Cleaning, Page 13. |
| Clock and timer are not working properly | Make sure there is proper electrical power to the oven. See the Clock and Timer sections on Pages 2 and 8. |
| Excessive moisture | When using bake mode, preheat the oven first. Convection bake will eliminate any moisture in oven (this is one of the advantages of convection). |
| Porcelain chips | When oven racks are removed and replaced, always tilt racks upward and do not force them to avoid chipping the porcelain. |
