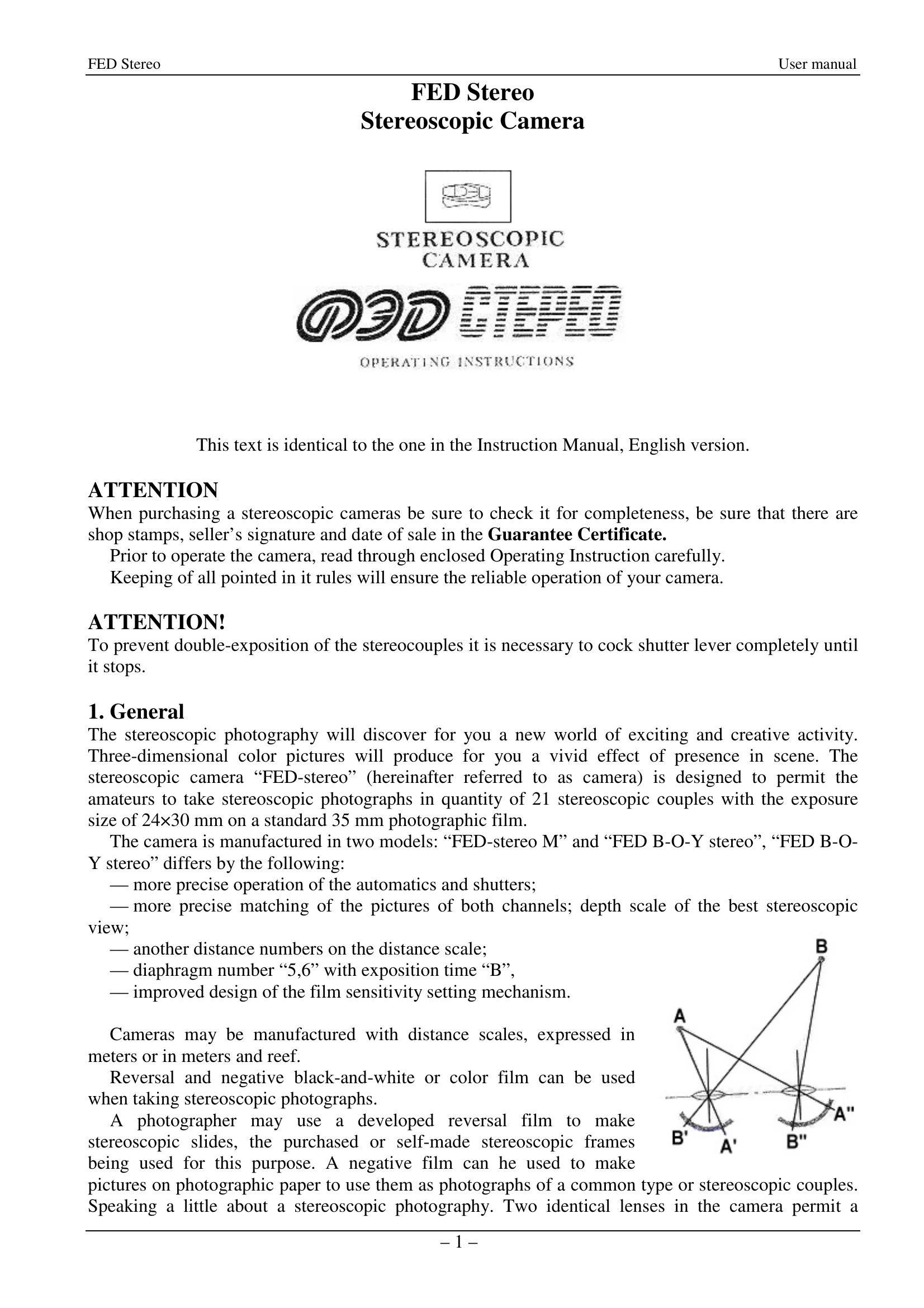

Manual for Stereoscopic Camera

Brand: FED

Category: Camera

Document Type:

Language: EN

Uploaded: Aug. 9, 2025, 11:35 p.m.

The FED Stereoscopic Camera allows users to capture 21 stereoscopic couples with a 24x30 mm exposure size on standard 35mm film. It features two models: 'FED-stereo M' and 'FED B-O-Y stereo'. The camera can be used in automatic or manual operation modes. For automatic mode, set the mode selector to 'A', select the object, set the distance, and gently press the release button. Ensure the shutter is cocked. For manual mode, set the mode selector as desired and adjust exposure settings. The camera includes a viewfinder with an illuminated exposure-limiting frame. It is important to cock the shutter lever fully to prevent double exposures. The manual also provides instructions on attaching belts, assembling stereoscopic slides, and helpful tips for better photography, including advice on subject distance and lighting.

Troubleshooting and error codes

Trouble	Cause	Remedy
As set to automatic operation mode, the camera shutter fails to operate even though the picture object is brightly illuminated.	The power cell is faulty polarity is set incorrectly when loading the cell	remove the power cell from the compartment, rearrange its polarity and load it back (see Fig. 10)
	the power cell is exhausted	replace the power cell with a new one (Fig 10)
	surface of the power cell or contact in the cell compartment has become oxidized	brush slightly the surface of the power cell or contacts in the cell compartment
As the shutter lever is being cocked, the film rewinding head stands still.	The film fails to be transported due to its improper loading	Open the rear cover of the camera and reload the film properly (see Fig. 14)
