Brand: FRIGIDAIRE
Category: Air Conditioner
Document Type: Manual
Language: EN
Manual for ffra051wae
Uploaded: Sept. 12, 2025, 4:18 a.m.
Manual Publish Date: 2009-06-01
Warranty Information
Limited one-year warranty on parts and labor, with a limited 2-5 year warranty on the sealed refrigeration system.

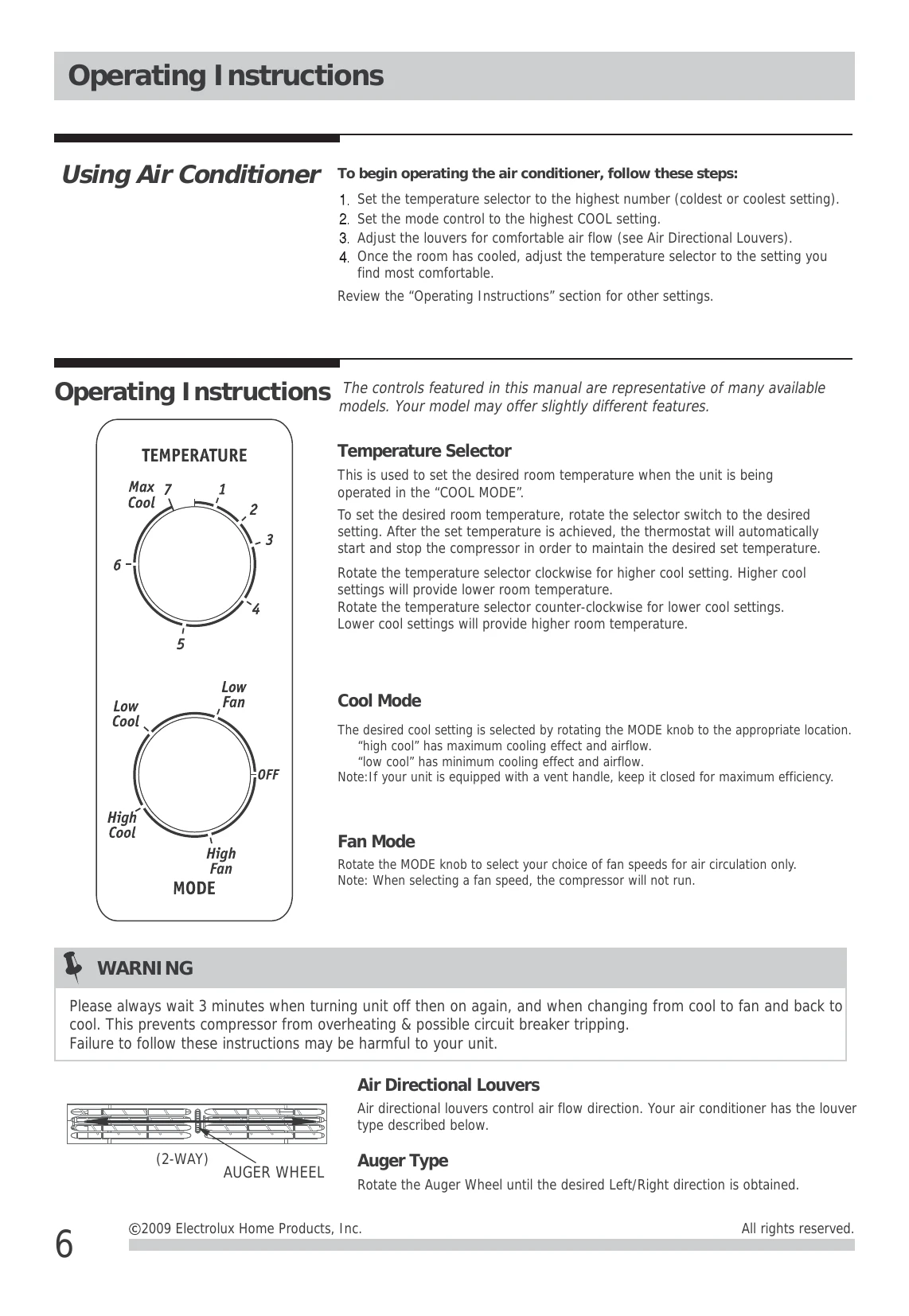

To begin operating the air conditioner:
- Set the temperature selector to the highest number (coldest setting).
- Set the mode control to the highest COOL setting.
- Adjust the louvers for comfortable air flow.
- Once the room has cooled, adjust the temperature selector to your preferred comfortable setting.
Temperature Selector: Rotates to set desired room temperature in COOL MODE. Clockwise for higher cooling (lower room temperature), counter-clockwise for lower cooling (higher room temperature).
Cool Mode: Selects desired cool setting. "High cool" for maximum effect and airflow, "low cool" for minimum effect and airflow.
Fan Mode: Selects fan speed for air circulation only. Compressor will not run.
WARNING: Wait 3 minutes when turning the unit off and on again, or switching between cool and fan modes, to prevent compressor overheating and potential circuit breaker tripping.
Troubleshooting and error codes
| OCCURRENCE | SOLUTION |
|---|---|
| Air conditioner will not operate. | Wall plug disconnected. Push plug firmly into wall outlet. Plug Current Device Tripped. Press the RESET button. House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker. Selector Control in OFF position. Turn selector to ON or desired FAN or COOL setting. Unit turned off by moving thermostat to a higher number and then immediately turning back to a colder number. Wait approximately 3 minutes. Listen for compressor to restart. Unit turned off and then on too quickly. Turn unit off and wait 3 minutes before restarting. |
| Air from unit does not feel cold enough. | Temperature selector set too low. Adjust temperature selector to higher number for cooling. Turn selector to a higher COOL position. Temperature selector set too warm. Set temperature selector to colder temperature. Room temperature below 70°F (21°C). Cooling may not occur until room temperature rises above 70 °F (21°C). Temperature sensing tube touching cold coil, located behind air filter. Straighten tube away from coil. Outdoor temperature below 70 °F (21°C). To defrost the coil, set selector to a FAN position. Then, set thermostat to warmer position. |
| Air conditioner cooling, but room is too warm - ice forming on cooling coil behind decorative front | Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set selector to FAN. Temperature selector set too cold for night-time cooling. To defrost the coil, set selector to a FAN position. Then, set temperature selector to warmer position. |
| Air conditioner cooling, but room is too warm - NO ice forming on cooling coil behind decorative front. | Dirty air filter - air restricted. Clean air filter. Refer to Care and Cleaning section. Temperature selector set too warm. Turn temperature selector clockwise to a colder setting. Air directional louvers positioned improperly. Position louvers for better air distribution. Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in front of unit. Doors, windows, registers, etc. open - cool air escapes. Close doors, windows, registers, etc. Unit recently turned on in hot room. Allow additional time to remove "stored heat" from walls, ceiling, floor and furniture. |
| Air conditioner turns on and off rapidly. | Dirty air filter - air restricted. Clean air filter. Outside temperature extremely hot. Set to High Cool to bring air through cooling coils more frequently. |
| Noise when unit is cooling. | Air movement sound. This is normal. If too loud, turn selector to lower FAN setting. Sound of fan hitting water-moisture removal system. This is normal when humidity is high. Close doors, windows and registers. Window vibration - poor installation. Refer to installation instructions or check with installer. |
| Water dripping INSIDE when unit is cooling. | Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. Refer to installation instructions or check with installer. |
| Water dripping OUTSIDE when unit is cooling. | Unit removing large quantity of moisture from humid room. This is normal during excessively humid days. |
| Room too cold. | Temperature selector set too high, set to a lower number on temperature dial. |
