Warranty Information
Limited one-year warranty for functional repairs, covering parts defective in materials or workmanship.

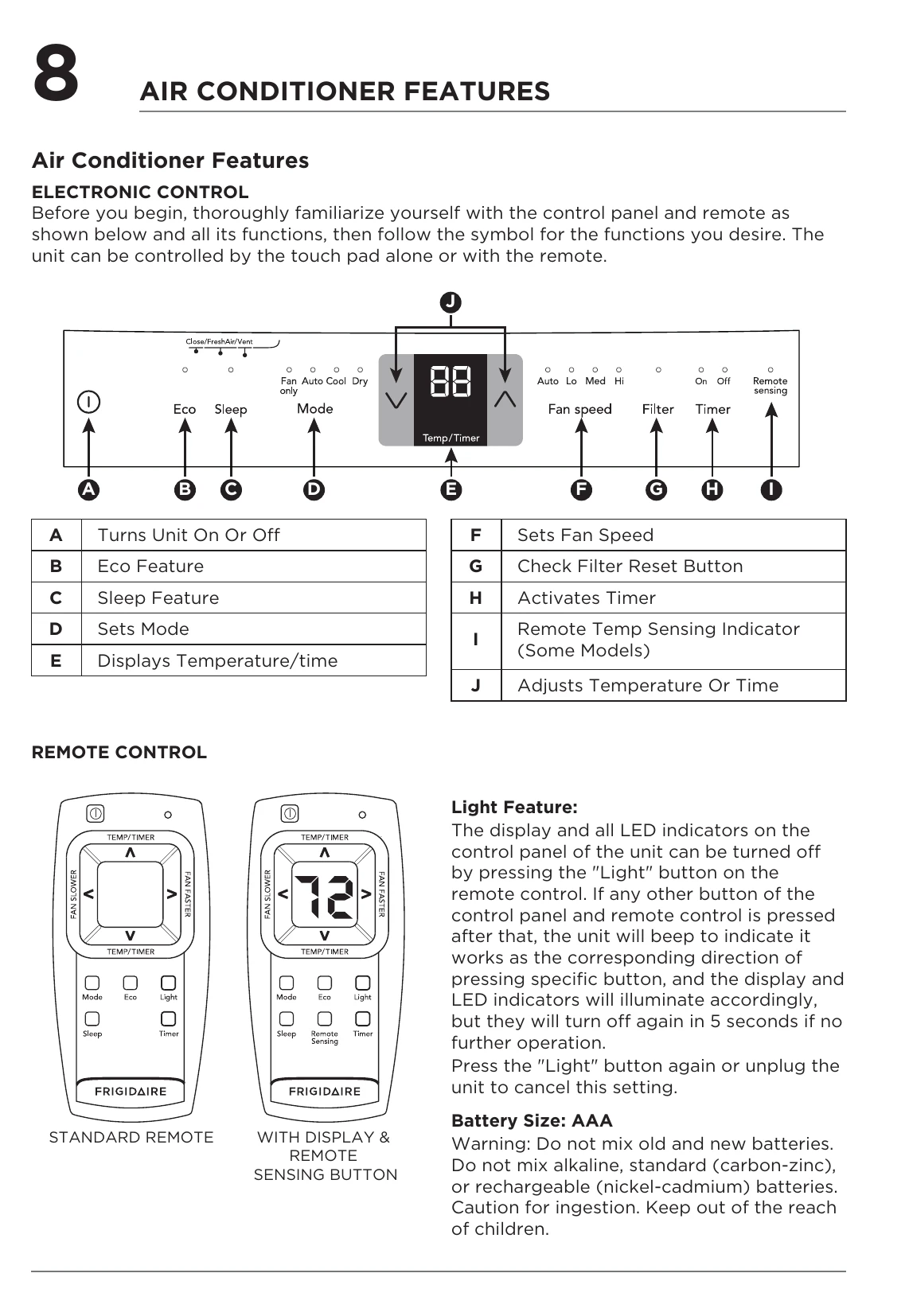

Turning On/Off: Press the ON/OFF button. The unit will initially run in Cool mode with Eco and Auto fan speed.
Modes: Select Cool, Auto, Fan Only, or Dry using the Mode button.
Temperature: Use the Up/Down arrows (∧/∨) to set desired temperature, adjustable between 62°F (17°C) and 86°F (30°C).
Fan Speed: Adjust fan speed using the Fan button (Auto, Lo, Med, Hi) unless in Auto or Dry mode.
Sleep Feature: Activates a program that gradually adjusts temperature and fan speed over 7 hours. Press Sleep, Fan speed, or Mode to cancel.
Timer: Set delay stop or start times from 0.5 to 24 hours using the Timer button and Up/Down arrows.
Filter Reset: Press the Filter Reset button after cleaning the air filter to turn off the indicator light.
Remote Sensing: (On some models) Activate via remote to sense temperature at the remote's location.
Modes: Select Cool, Auto, Fan Only, or Dry using the Mode button.
Temperature: Use the Up/Down arrows (∧/∨) to set desired temperature, adjustable between 62°F (17°C) and 86°F (30°C).
Fan Speed: Adjust fan speed using the Fan button (Auto, Lo, Med, Hi) unless in Auto or Dry mode.
Sleep Feature: Activates a program that gradually adjusts temperature and fan speed over 7 hours. Press Sleep, Fan speed, or Mode to cancel.
Timer: Set delay stop or start times from 0.5 to 24 hours using the Timer button and Up/Down arrows.
Filter Reset: Press the Filter Reset button after cleaning the air filter to turn off the indicator light.
Remote Sensing: (On some models) Activate via remote to sense temperature at the remote's location.
Troubleshooting and error codes
| OCCURRENCE | SOLUTION |
|---|---|
| Air conditioner will not operate. | • Wall plug disconnected. Push plug firmly into wall outlet. • Plug Current Device Tripped. Press the RESET button. • House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker. • Control is OFF. Turn Control ON and set to desired setting. |
| Air from unit does not feel cold enough. | • Room temperature below 60°F (16°C). Cooling may not occur until room temperature rises above 60°F (16°C). • Temperature sensing element touching cold coil, located behind air filter. Straighten away from coil. • Reset to a lower temperature. • Compressor shut-off by changing modes. Wait approximately 3 minutes and listen for compressor to restart when set in the COOL mode. |
| Air conditioner cooling, but room is too warm ice forming on cooling coil behind decorative front | • Outdoor temperature below 60 F° (16°C). To defrost the coil, set FAN ONLY mode. • Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY mode. • Temperature is set too low for night-time cooling. To defrost the coil, set to FAN ONLY mode. Then, set temperature to a higher setting. |
| Air conditioner cooling, but room is too warm NO ice forming on cooling coil behind decorative front. | • Dirty air filter - air restricted. Clean air filter. Refer to Care and Cleaning section. • Temperature is set too high. Set temperature to a lower setting. • Air directional louvers positioned improperly. Position louvers for better air distribution. • Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in front of unit. • Doors, windows, registers, etc. open - cool air escapes. Close doors, windows, registers, etc. • Unit recently turned on in hot room. Allow additional time to remove "stored heat" from walls, ceiling, floor and furniture. |
| Air conditioner turns on and off rapidly. | • Dirty air filter - air restricted. Clean air filter. • Outside temperature extremely hot. Set FAN speed to a faster setting to bring air through cooling coils more frequently. |
| Noise when unit is cooling. | • Air movement sound. This is normal. If too loud, set to lower FAN setting. • Window vibration - poor installation. Refer to installation instructions or check with installer. |
| Water dripping INSIDE when unit is cooling. | • Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. Refer to installation instructions or check with installer. |
| Water dripping OUTSIDE when unit is cooling. | • Unit removing large quantity of moisture from humid room. This is normal during excessively humid days. |
| Remote Sensing Deactivating Prematurely (some models). | • Remote control not located within range. Place remote control within 20 feet & 120° radius of the front of the unit. • Remote control signal obstructed. Remove obstruction. |
| Room too cold. | • Set temperature too low. Increase set temperature. • Remote Sensing activated (on some models) and remote control located in Hot Spot - Relocate remote control or deactivate remote sensing. |
