Warranty Information
A one-year limited warranty covers functional repairs, paying for defective parts and labor from the original purchase date.

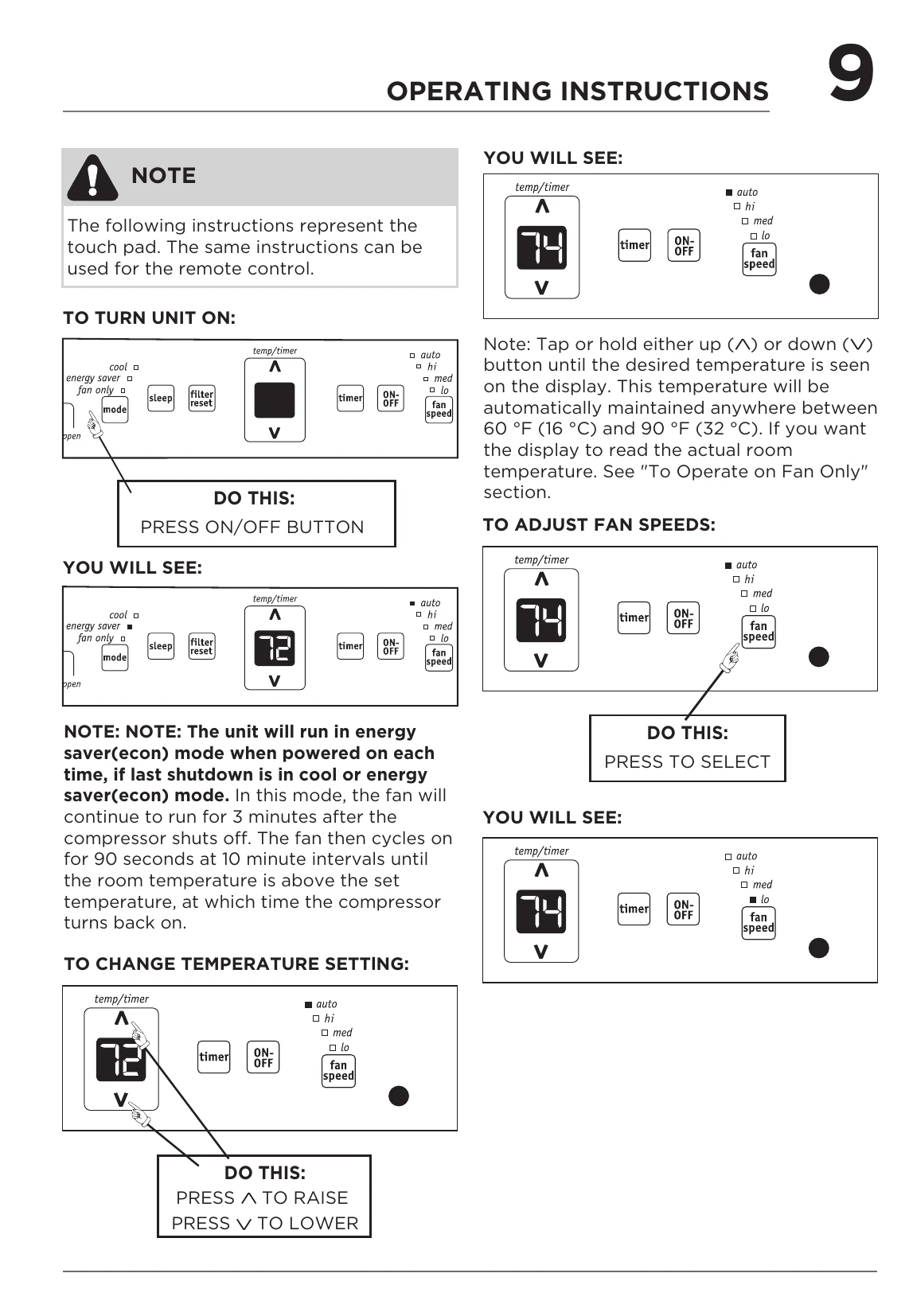

Turning the Unit On/Off:
Press the ON/OFF button to turn the unit on or off.Adjusting Temperature:
Use the UP (∧) or DOWN (V) arrow buttons to set the desired temperature between 60°F (16°C) and 90°F (32°C).Adjusting Fan Speed:
Press the fan speed button to cycle through Auto, High, Medium, and Low fan speeds.Operating Modes:
Select modes like Cool, Energy Saver, Fan Only, or Sleep using the Mode button. The unit will automatically adjust fan speed in Auto mode. In Sleep mode, the temperature gradually increases. The TIMER button allows for delay start/stop functionality.Airflow Direction:
Use the 4-Way louvers to direct airflow up/down and left/right.Exhaust Control:
Use the Exhaust Control (CLOSED/OPEN) to recirculate inside air or exhaust stale air.Filter Maintenance:
Check and clean the air filter monthly. The "Filter Reset" button should be pressed after cleaning.Troubleshooting and error codes
| OCCURRENCE | SOLUTION |
|---|---|
| Air conditioner will not operate. | • Wall plug disconnected. Push plug firmly into wall outlet. • Plug Current Device Tripped. Press the RESET button. • House fuse blown or circuit breaker tripped. Replace fuse with time delay type or reset circuit breaker. • Control is OFF. Turn Control ON and set to desired setting. |
| Air from unit does not feel cold enough. | • Room temperature below 60°F (16°C). Cooling may not occur until room temperature rises above 60°F (16°C). • Temperature sensing element touching cold coil, located behind air filter. Straighten away from coil. • Reset to a lower temperature. • Compressor shut-off by changing modes. Wait approximately 3 minutes and listen for compressor to restart when set in the COOL mode. |
| Air conditioner cooling, but room is too warm ice forming on cooling coil behind decorative front | • Outdoor temperature below 60 F° (16°C). To defrost the coil, set FAN ONLY mode. • Air filter may be dirty. Clean filter. Refer to Care and Cleaning section. To defrost, set to FAN ONLY mode. • Temperature is set too low for night-time cooling. To defrost the coil, set to FAN ONLY mode. Then, set temperature to a higher setting. |
| Air conditioner cooling, but room is too warm NO ice forming on cooling coil behind decorative front. | • Dirty air filter - air restricted. Clean air filter. Refer to Care and Cleaning section. • Temperature is set too high. Set temperature to a lower setting. • Air directional louvers positioned improperly. Position louvers for better air distribution. • Front of unit is blocked by drapes, blinds, furniture, etc. - restricts air distribution. Clear blockage in front of unit. • Doors, windows, registers, etc. open - cool air escapes. Close doors, windows, registers, etc. • Unit recently turned on in hot room. Allow additional time to remove "stored heat" from walls, ceiling, floor and furniture. |
| Air conditioner turns on and off rapidly. | • Dirty air filter - air restricted. Clean air filter. • Outside temperature extremely hot. Set FAN speed to a faster setting to bring air through cooling coils more frequently. |
| Noise when unit is cooling. | • Air movement sound. This is normal. If too loud, set to lower FAN setting. • Window vibration - poor installation. Refer to installation instructions or check with installer. |
| Water dripping INSIDE when unit is cooling. | • Improper installation. Tilt air conditioner slightly to the outside to allow water drainage. Refer to installation instructions or check with installer. |
| Water dripping OUTSIDE when unit is cooling. | • Unit removing large quantity of moisture from humid room. This is normal during excessively humid days. |
| Room too cold. | • Set temperature too low. Increase set temperature. • Remote Sensing activated (on some models) and remote control located in Hot Spot - Relocate remote control or deactivate remote sensing. |
